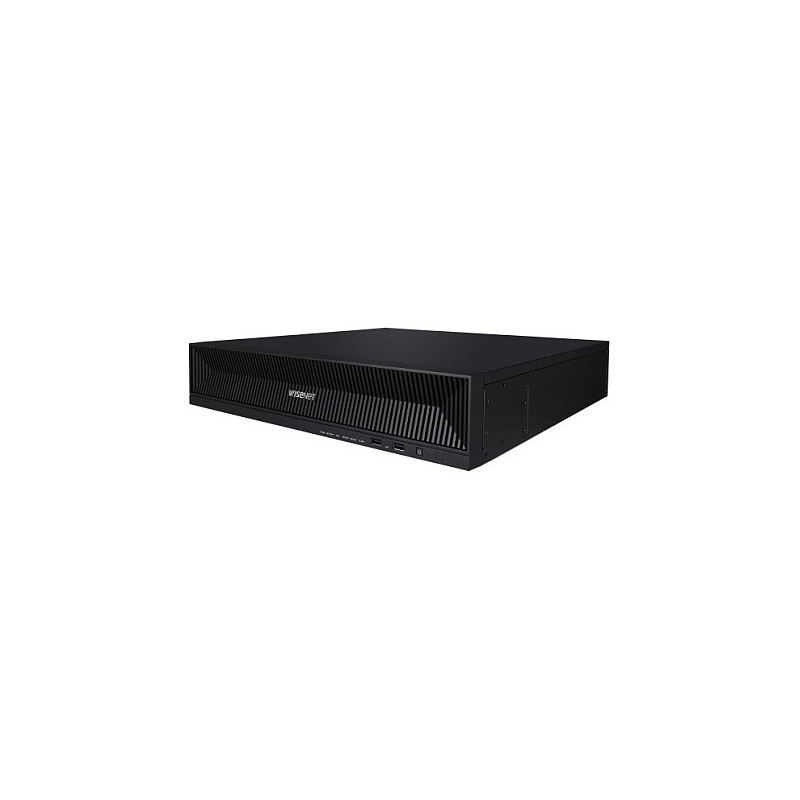

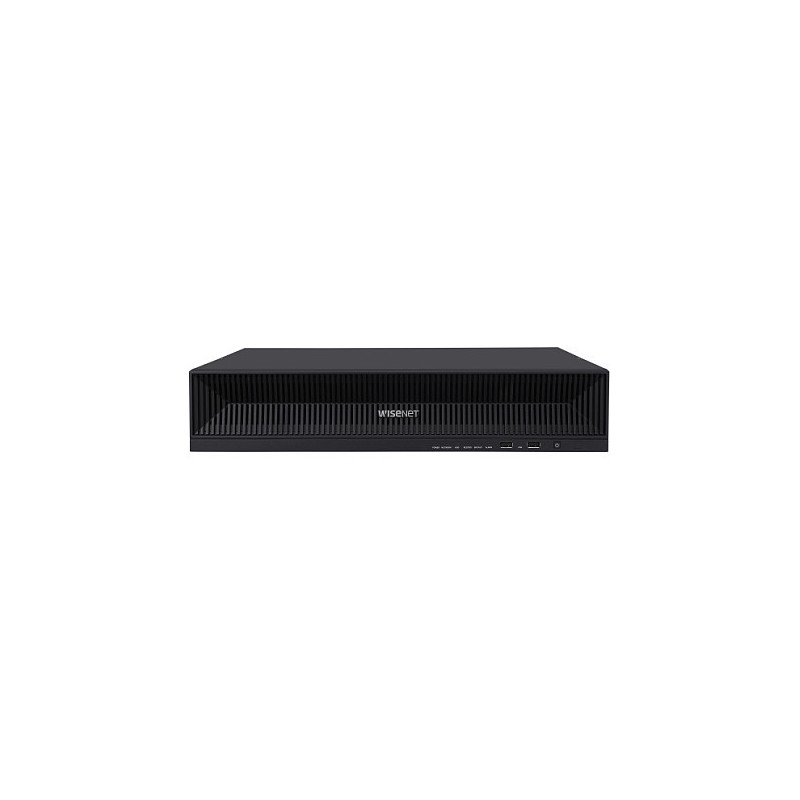

Hanwha XRN-1620SB1 network video recorder

Hanwha XRN-1620SB1. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840 x 2160, 1920x1080. Maximum storage capacity: 24 TB, HDD interface: SATA, SATA II, SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP,.... Product colour: Black. Power consumption (max): 310 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

Performance

Video input channels: 16 channels
Alarm input channels: 4
Alarm output channels: 2
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840 x 2160, 1920x1080
Video codecs: H.265, H.264, MJPEG
Audio codecs: G.711, G.726, AAC
Feature: PTZ control
Input bandwidth: 140 Mbit/s
Output bandwidth: 32 Mbit/s
Audio system: 2-way

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 4
Maximum storage capacity: 24 TB
HDD interface: SATA, SATA II, SATA III

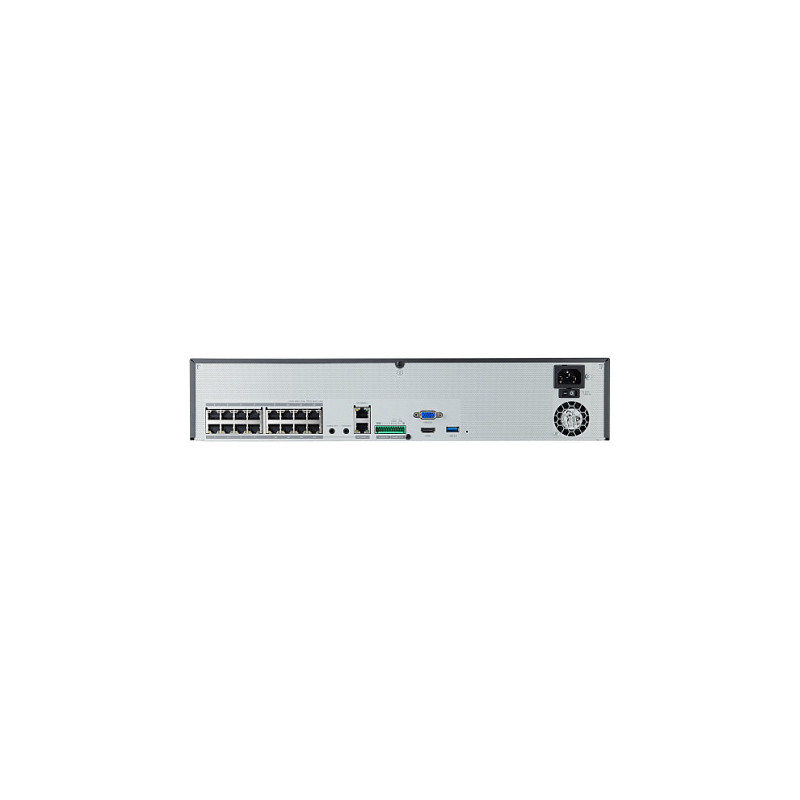

Ports & interfaces

Ethernet LAN (RJ-45) ports: 18
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity: 16
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA outputs: 1
Networking standards: IEEE 802.3af, IEEE 802.3at

Features

LED indicators: Yes
Feature: Reset button
Product colour: Black

Power

Power consumption (max): 310 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 85%

Weight & dimensions

Width: 440 mm
Depth: 428.4 mm
Height: 89.8 mm
Weight: 5.76 kg
