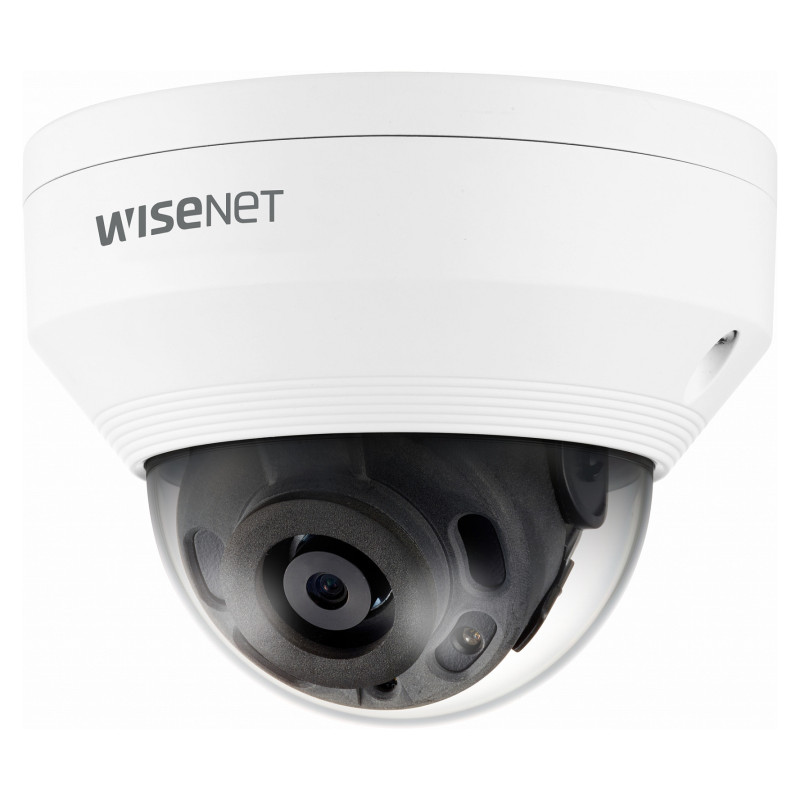

Hanwha QNV-7022R security camera

Hanwha QNV-7022R. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 350°, Lens viewing angle, horizontal: 78.2°, Lens viewing angle, vertical: 41.2°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 63 m, Observe distance: 25.2 m, Recognize distance: 12.6 m

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 17
Languages support: Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Swedish, Turkish

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Housing material: Aluminium
International Protection (IP) code: IP66
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 78.2°
Lens viewing angle, vertical: 41.2°
Lens viewing angle, diagonal: 92°
Tilt angle range: 0 - 67°
Pan range: 0 - 350°
White balance: ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/5 - 1/12000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 63 m
Observe distance: 25.2 m
Recognize distance: 12.6 m
Feature: Fixed focus
Maximum aperture number: 1.6
Identify distance: 6.3 m
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 25 m
LED type: IR

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video formats supported: H.264, H.265, M-JPEG
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Flip & mirror
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Audio

Audio formats supported: ADPCM, G.711, G.726
Sample rate: 8 kHz
Voice codecs: G.711ulaw, G.726, G.726-32

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Number of users: 6 user(s)
Feature: Quality of Service (QoS) support
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB
Internal memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1
Feature: Microphone in
Feature: DC-in jack

Security

Feature: Password protection
Password protection type: User
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-TLS, HTTPS, LEAP
Feature: HTTPS encryption
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Defocus
Feature: Anti-flicker

Power

Power source type: DC, PoE
Power consumption (typical): 6.5 W
Power consumption (max): 10.7 W
Power consumption (Power over Ethernet (PoE)): 8.1 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 91.7 mm
Diameter: 12 cm
Weight: 510 g

Packaging content

Feature: Manual
