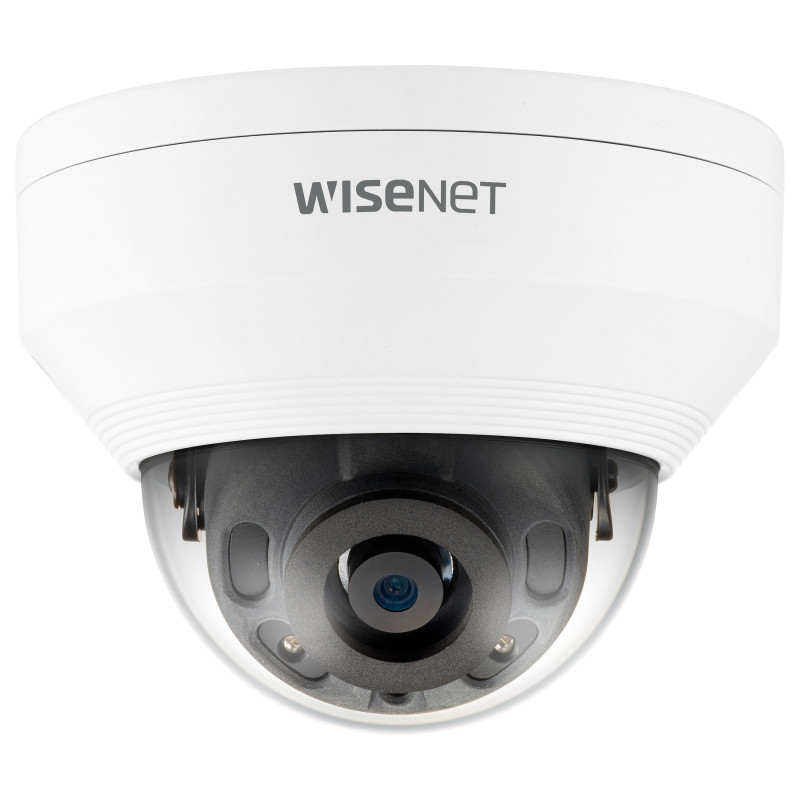

Hanwha QNV-6022R security camera

Hanwha QNV-6022R. Type: IP security camera, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 87.6°, Lens viewing angle, vertical: 46.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Fixed focal length: 4 mm

Performance

Type: IP security camera
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Angle of rotation: 355°
Lens viewing angle, horizontal: 87.6°
Lens viewing angle, vertical: 46.4°
Lens viewing angle, diagonal: 104.5°
Tilt angle range: 0 - 67°
Pan range: 0 - 350°
White balance: ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/5 - 1/12000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Number of effective pixels (H x V): 1920 x 1080 pixels

Lens system

Number of lenses: 1
Feature: Fixed focus
Maximum aperture number: 1.6
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 25 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Flip & mirror
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Audio

Audio formats supported: ADPCM, G.711, G.726
Sample rate: 8 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Number of users: 6 user(s)
Feature: Quality of Service (QoS) support
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB
Internal memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1
Feature: Microphone in

Security

Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-TLS
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Defocus

Management features

Behavior analysis: Line crossing detection

Power

Power source type: DC, PoE
Power consumption (typical): 5.1 W
Power consumption (max): 6.4 W
Power consumption (Power over Ethernet (PoE)): 7.4 W

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 8.1
Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave

Weight & dimensions

Width: 120 mm
Depth: 120 mm
Height: 91.7 mm
Weight: 510 g

Packaging content

Number of cameras: 1
