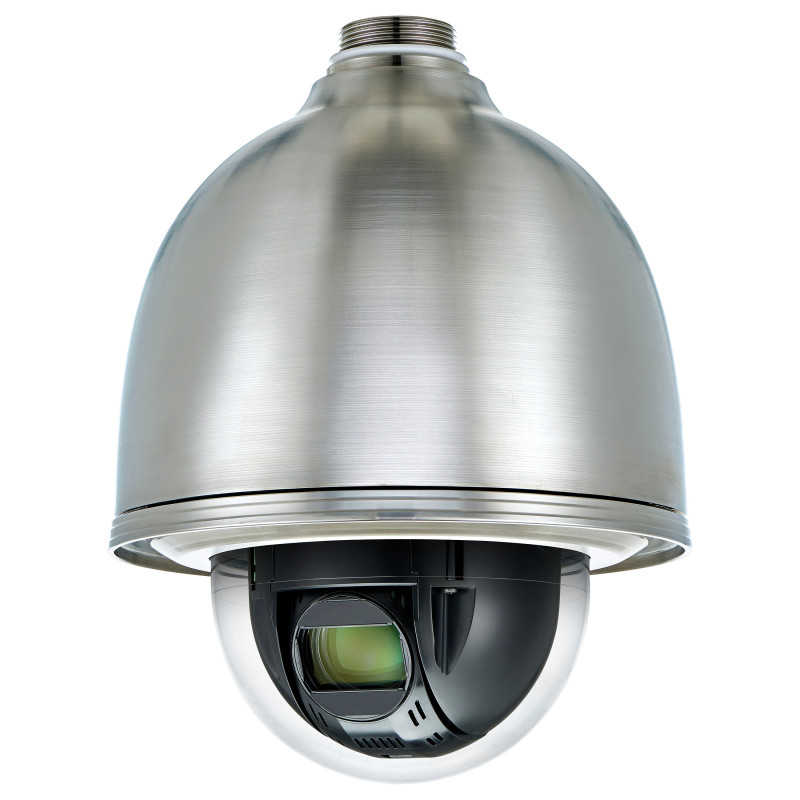

Hanwha QNP-6320HS security camera

Hanwha QNP-6320HS. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Silver, Form factor: Dome. Tilt angle range: -15 - 90°, Tilt speed: 200 °/sec, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Maximum resolution: 1920 x 1080 pixels, Total megapixels: 2 MP, Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x...

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Silver
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Tilt angle range: -15 - 90°
Tilt speed: 200 °/sec
Pan range: 0 - 360°
Pan speed: 200 °/sec
Pan preset speed: 700 °/sec
White balance: ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 4.4
Minimum aperture number: 1.6

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Feature: Video streaming

Network

Feature: Ethernet LAN
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB
Flash memory: 256 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS
Feature: HTTPS encryption

Power

Power source type: PoE
Power consumption (typical): 14 W
Power consumption (max): 23 W

Operational conditions

Operating temperature (T-T): -35 - 55 °C
Storage temperature (T-T): -50 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 299.2 mm
Diameter: 22.7 cm
Weight: 5.4 kg

Packaging content

Number of cameras: 1
