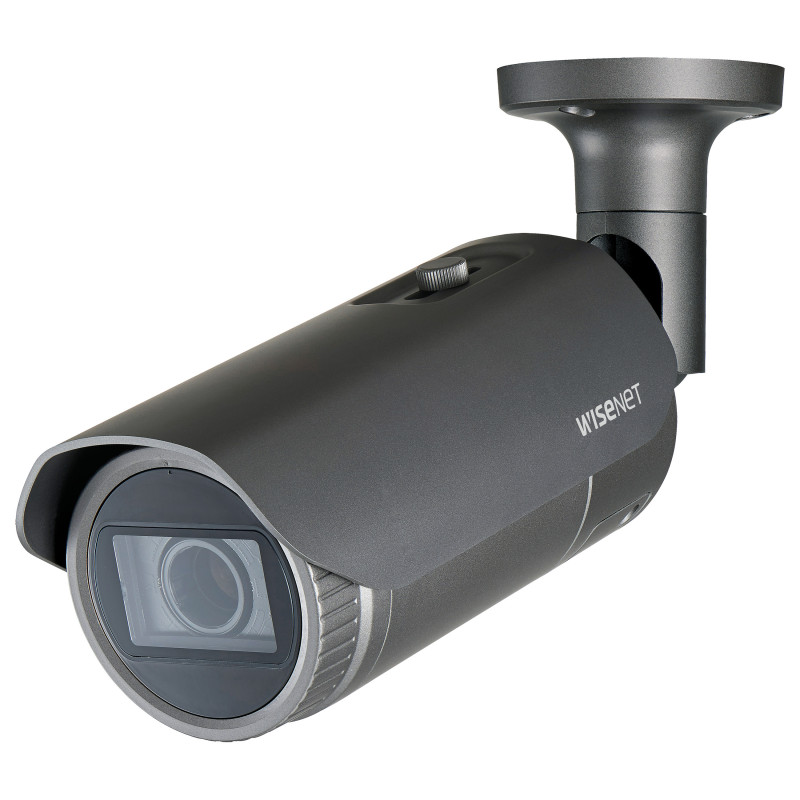

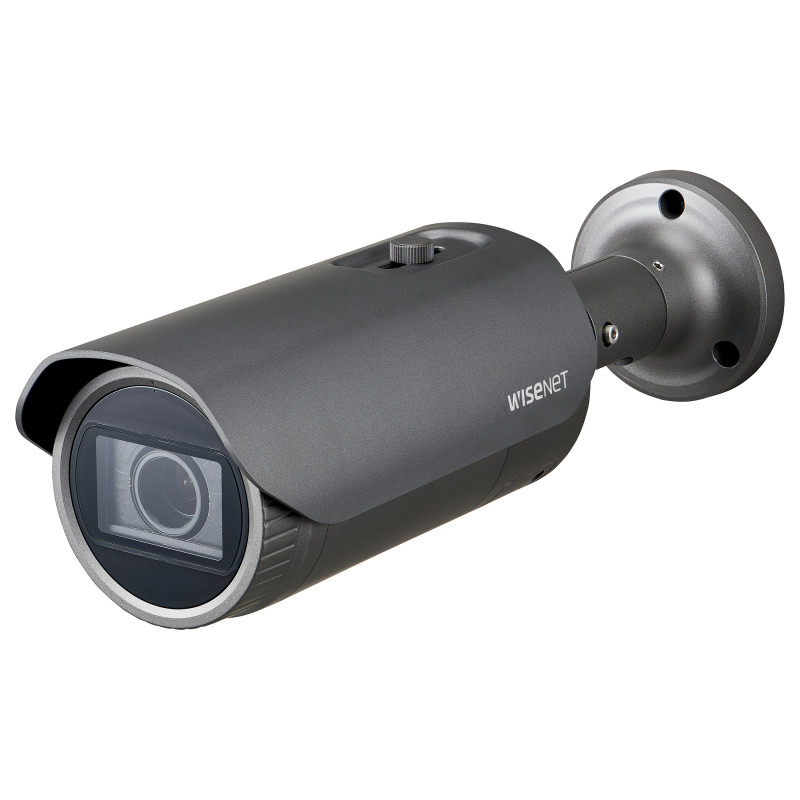

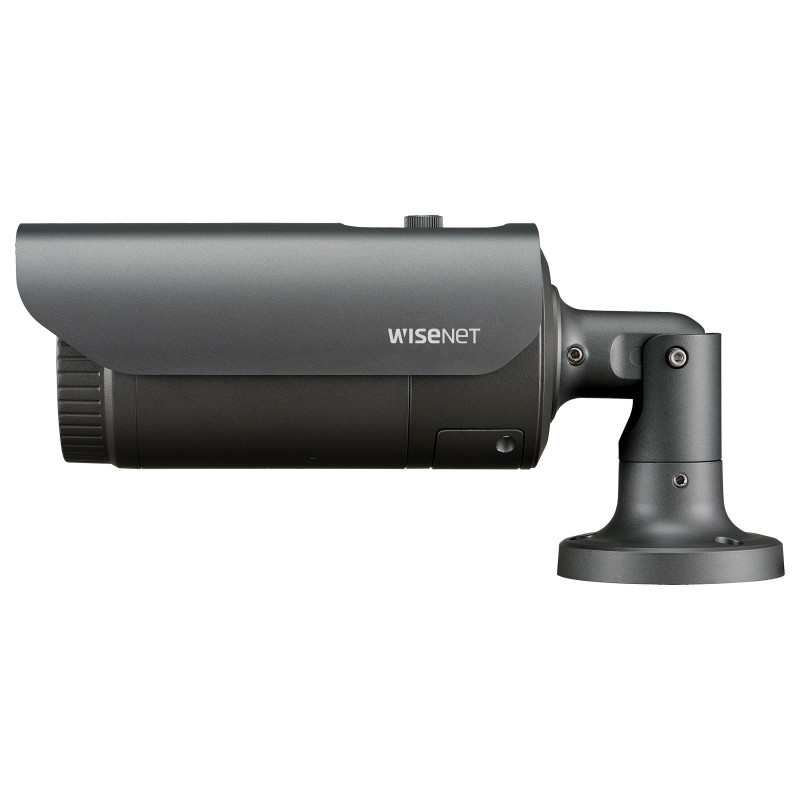

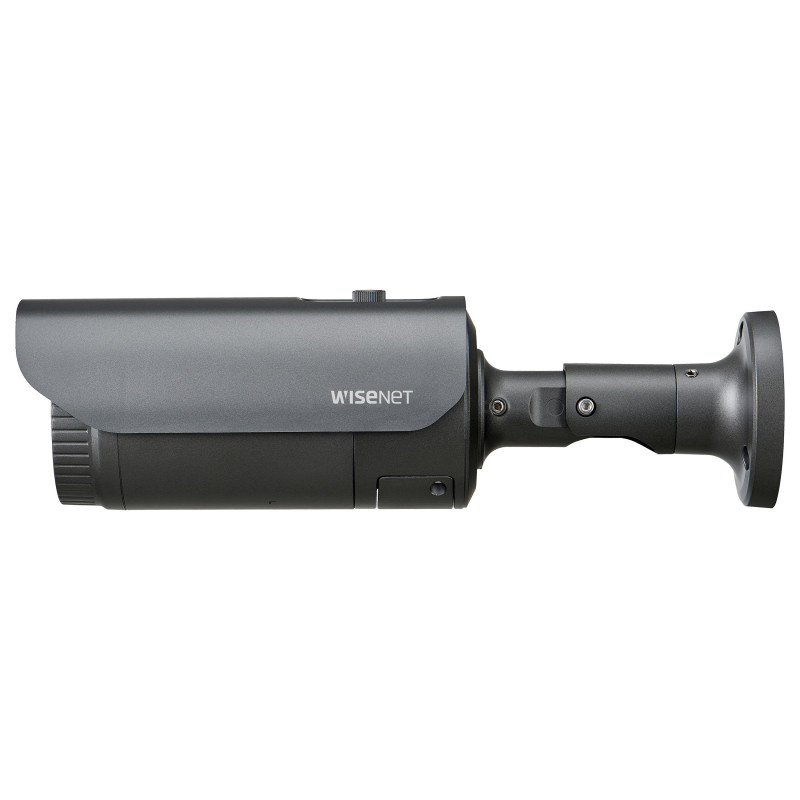

Hanwha QNO-8080R security camera

Hanwha QNO-8080R. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Grey, Form factor: Bullet. Minimum illumination: 0.15 lx, Lens viewing angle, horizontal: 100.3°, Lens viewing angle, vertical: 72.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 2592 x 1944 pixels. Focal length range: 3 - 10 mm

Max. 5Megapixel (2592 x 1944) resolution
3.2~10mm(3.1x) motorized varifocal lens
0.15Lux (Color), 0Lux (B/W, IR LED on)
Max. 30fps@5MP (H.265 / H.264)
H.265, H.264, MJPEG codec support, Multiple streaming
Day & Night, WDR (120dB)
Tampering, Motion detection, Defocus detection
Micro SD / SDHC / SDXC memory slot (Max. 128GB)
Hallway view, WiseStream II support
IR Viewable length 30m
IP66, IK10, PoE

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Remote viewing

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Grey
Housing material: Aluminium
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.15 lx
Lens viewing angle, horizontal: 100.3°
Lens viewing angle, vertical: 72.3°
Lens viewing angle, diagonal: 133.1°
White balance: ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 5 s
Adjustment shutter speed: Auto

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS
Number of effective pixels (H x V): 2592 x 1944 pixels

Lens system

Feature: Zoom capability
Focal length range: 3 - 10 mm
Feature: Fixed focus
Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944
Frame rate: 30 fps
Feature: Noise reduction
Gain control type: Auto
Feature: Flip & mirror
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards: IEEE 802.1x
Number of users: 6 user(s)
Feature: Quality of Service (QoS) support
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: E-mail

Management features

Feature: Web browser

Power

Power source type: PoE
Power consumption (typical): 7.3 W
Power consumption (max): 9.5 W

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Diameter: 9.1 cm
Length: 322.9 mm
Weight: 1.19 kg
