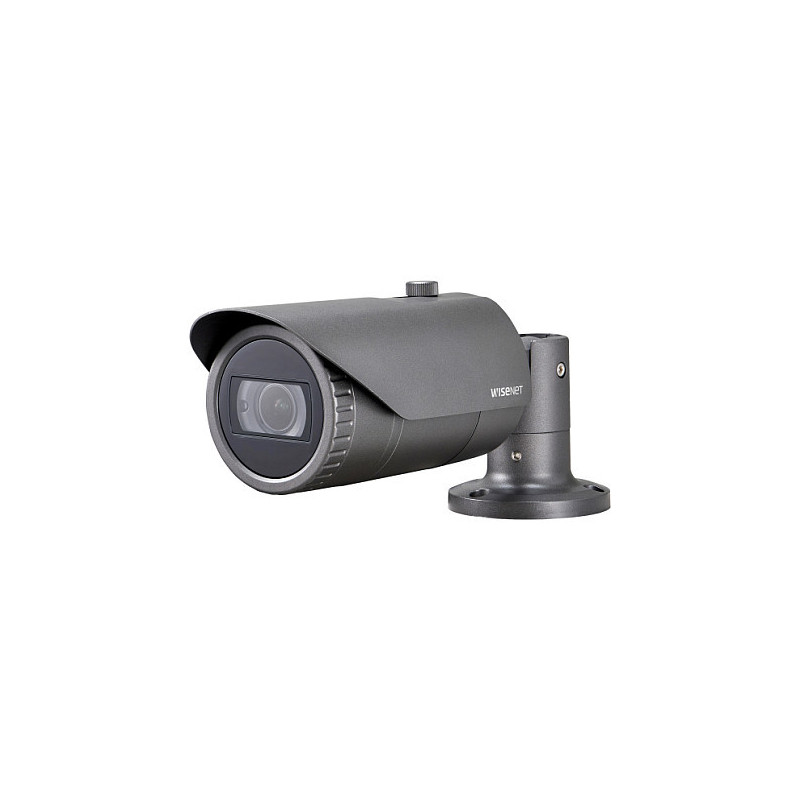

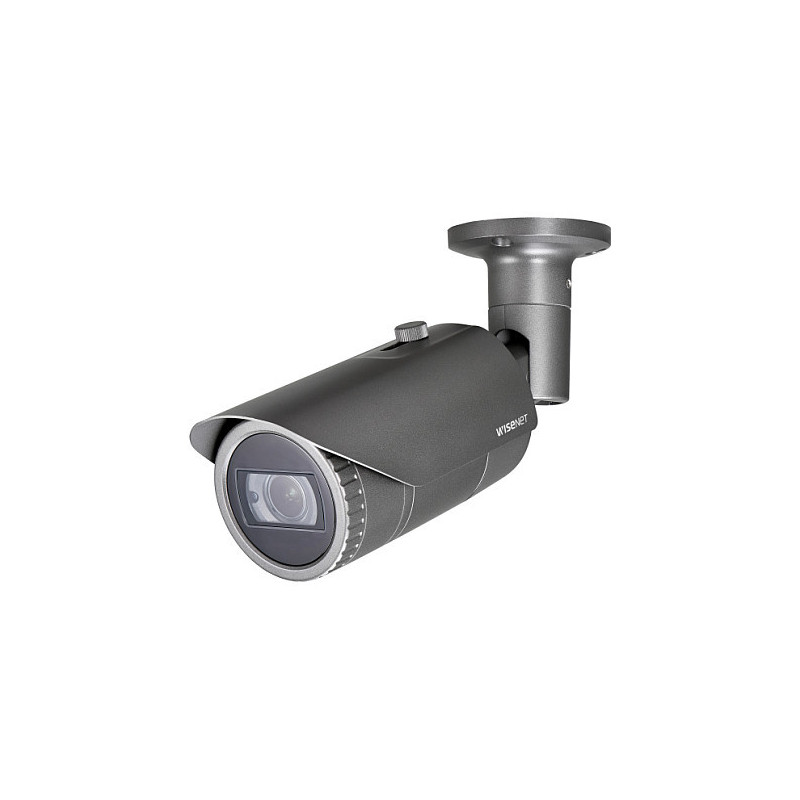

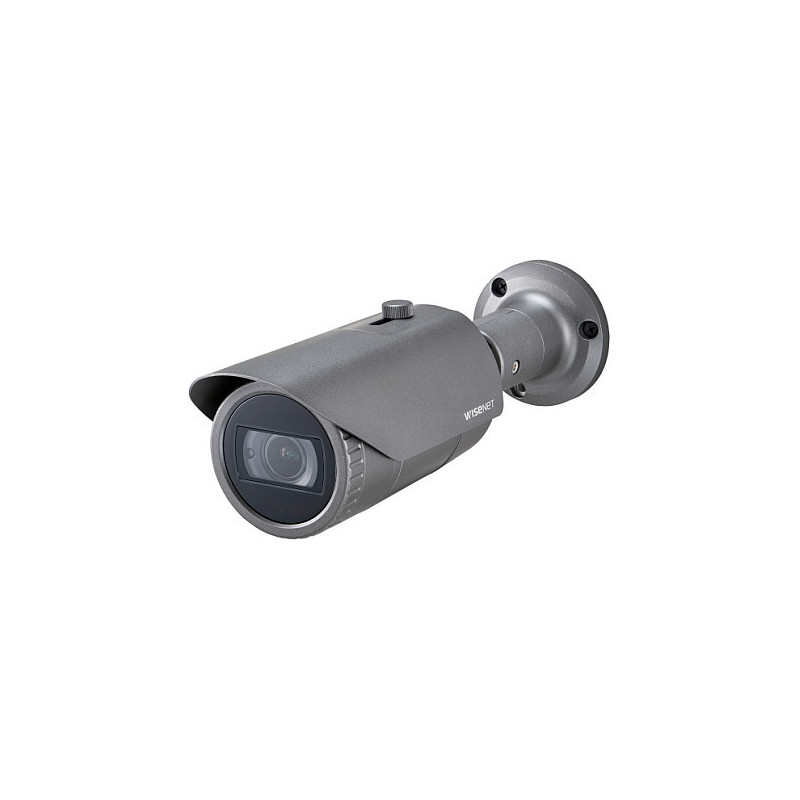

Hanwha QNO-7082R security camera

Hanwha QNO-7082R. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Grey, Form factor: Bullet. Lens viewing angle, horizontal: 98.6°, Lens viewing angle, vertical: 52.3°, Lens viewing angle, diagonal: 115.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 3.1x, Focal length range: 3.2 - 10 mm, Detect distance (wide): 27 m

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Grey
Housing material: Aluminium
International Protection (IP) code: IP66
IK code: IK10

Camera

Lens viewing angle, horizontal: 98.6°
Lens viewing angle, vertical: 52.3°
Lens viewing angle, diagonal: 115.7°
White balance: ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/5 - 1/12000 s
Adjustment shutter speed: Auto/Manual

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Optical zoom: 3.1x
Focal length range: 3.2 - 10 mm
Maximum aperture number: 2.9
Minimum aperture number: 1.6
Detect distance (wide): 27 m
Detect distance (tele): 129 m
Observe distance (wide): 11 m
Observe distance (tele): 52 m
Recognize distance (wide): 6 m
Recognize distance (tele): 26 m
Identify distance (wide): 3 m
Identify distance (tele): 13 m

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Flip & mirror
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Audio

Sample rate: 8 kHz
Voice codecs: G.711, G.711ulaw, G.726

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB
Internal memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1

Security

Feature: Video motion detection
Feature: IP address filtering
Intelligent Video Surveillance (IVS) system features: Defocus

Power

Power source type: DC, PoE
Power consumption (max): 9.6 W
Power consumption (Power over Ethernet (PoE)): 11.4 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Diameter: 7.8 cm
Length: 259.8 mm
Weight: 900 g

Packaging content

Number of cameras: 1
