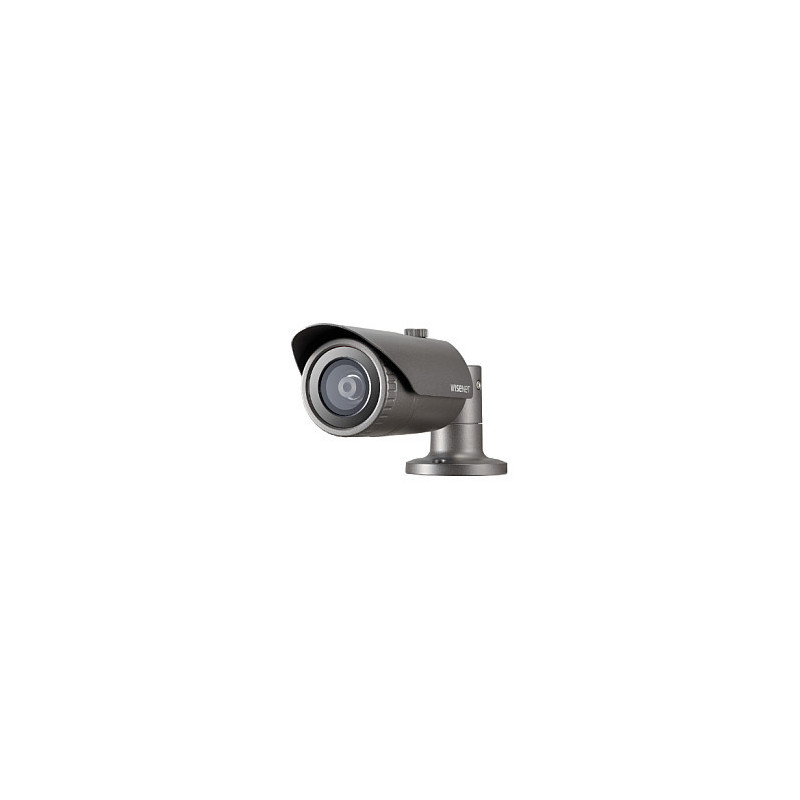

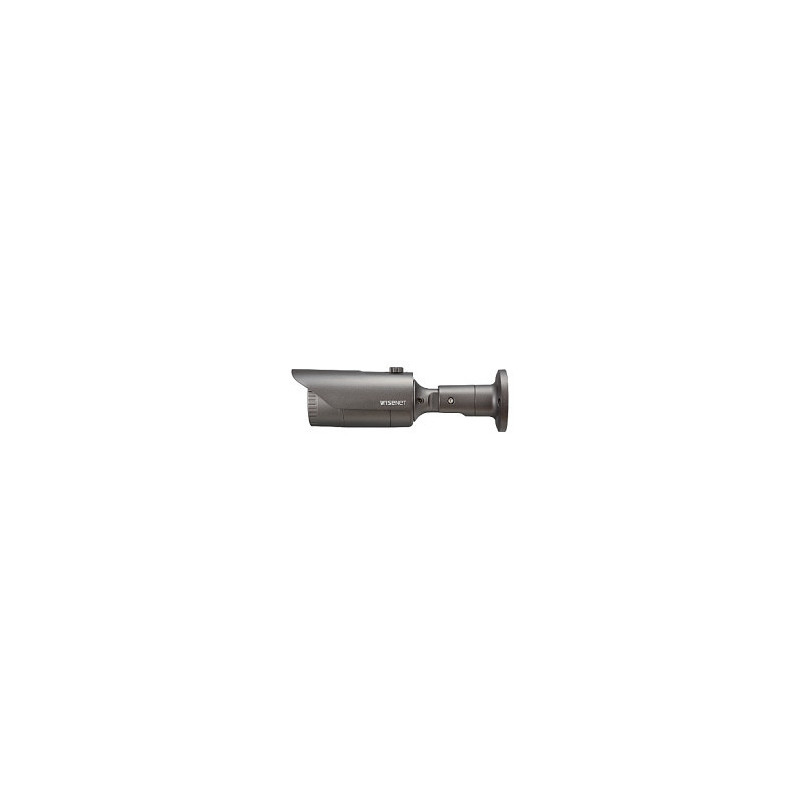

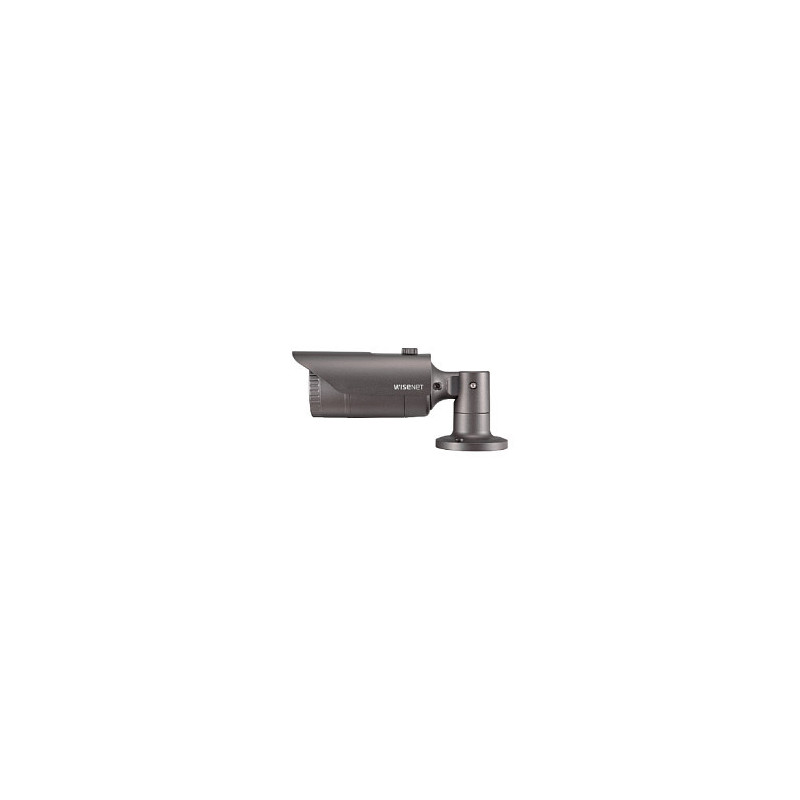

Hanwha QNO-6012R security camera

Hanwha QNO-6012R. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Grey, Form factor: Bullet. Lens viewing angle, horizontal: 113.7°, Lens viewing angle, vertical: 61°, Lens viewing angle, diagonal: 134.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Fixed focal length: 2.8 mm

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Alarm input/output

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Grey
Housing material: Aluminium
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 113.7°
Lens viewing angle, vertical: 61°
Lens viewing angle, diagonal: 134.5°
White balance: ATW, AWC, Indoor, Manual, Outdoor

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Number of effective pixels (H x V): 1920 x 1080 pixels

Lens system

Number of lenses: 1
Maximum aperture number: 2
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.264, H.265
Video compression formats: H.264, H.265
Supported graphics resolutions: 640 x 360, 720 x 480, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Noise reduction
Feature: Flip mirror
Feature: Privacy masking

Audio

Voice codecs: G.711, G.711u, G.726

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1af, IEEE 802.1x
Number of users: 6 user(s)
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 512 GB
Flash memory: 256 MB
Internal memory: 128 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Password protection type: User
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: HTTPS, SNMPv2, SNMPv3, SSL/TLS
Alert notification type: E-mail

Power

Power source type: DC, PoE
Power consumption (typical): 4.5 W
Power consumption (max): 6 W
Power consumption (Power over Ethernet (PoE)): 7 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave

Weight dimensions

Height: 246 mm
Diameter: 7 cm
Weight: 700 g

Packaging content

Number of cameras: 1
