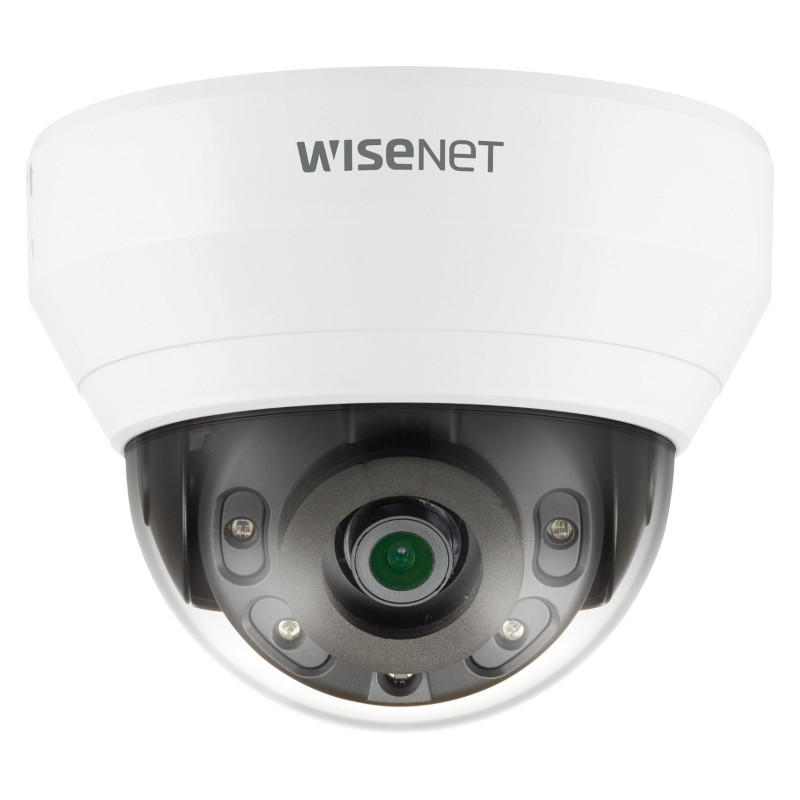

Hanwha QND-7012R security camera

Hanwha QND-7012R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 107.5°, Lens viewing angle, vertical: 59.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 37.5 m, Observe distance: 15 m, Recognize distance: 7.5 m

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Plastic

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 107.5°
Lens viewing angle, vertical: 59.7°
Lens viewing angle, diagonal: 122°
Tilt angle range: 0 - 67°
Pan range: 0 - 350°
White balance: ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/5 - 1/12000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 37.5 m
Observe distance: 15 m
Recognize distance: 7.5 m
Feature: Fixed focus
Maximum aperture number: 2
Identify distance: 3.8 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Flip & mirror
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)

Audio

Sample rate: 8 kHz
Feature: Built-in microphone
Voice codecs: G.711, G.711ulaw, G.726

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB
Flash memory: 256 MB
Internal memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1

Security

Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Defocus

Power

Power source type: DC, PoE
Power consumption (typical): 5.1 W
Power consumption (max): 7.1 W
Power consumption (Power over Ethernet (PoE)): 7.9 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 86 mm
Diameter: 11 cm
Weight: 255 g

Packaging content

Number of cameras: 1
