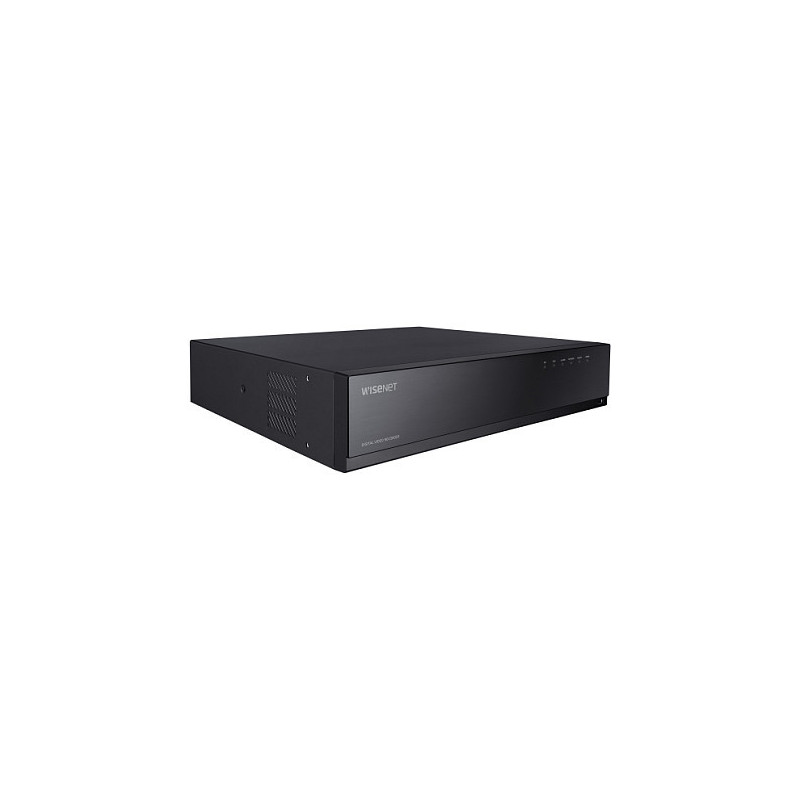

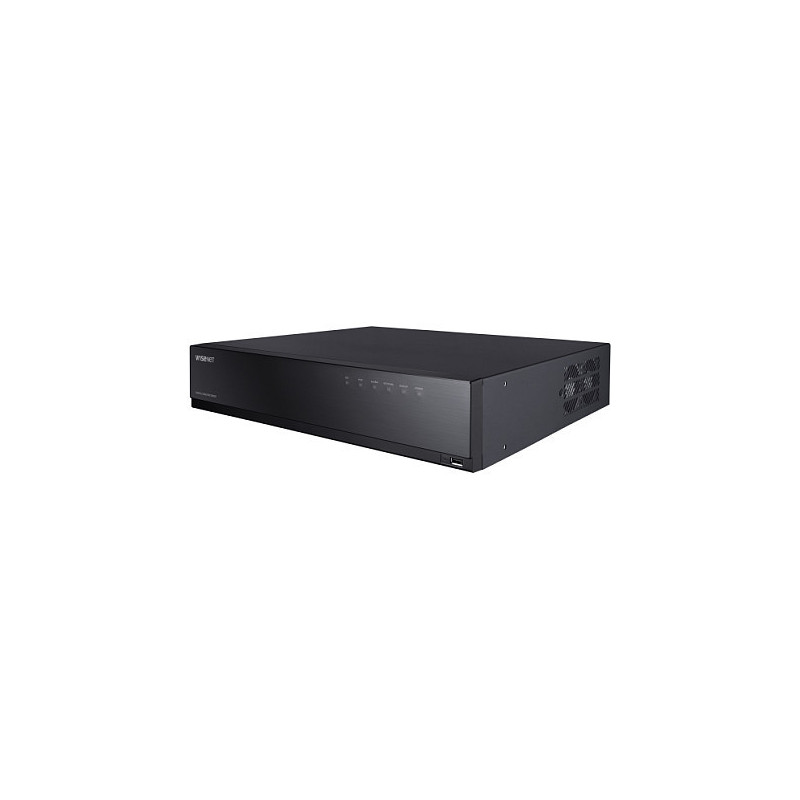

Hanwha HRX-1635 network video recorder

Hanwha HRX-1635. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 18 channels. Maximum storage capacity: 48 TB, HDD interface: SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP,.... Product colour: Black. Power consumption (max): 200 W, AC input voltage: 100 - 240 V, AC input frequency: 50 / 60 Hz

Performance

Video input channels: 16 channels
Alarm input channels: 16
Alarm output channels: 4
Number of simultaneously playbacked channels: 18 channels
Video recording modes: 2160p, 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720
Video formats supported: H.265, H.264
Image formats supported: MJPEG
Feature: Backup function
Feature: PTZ control
Feature: Syslog
Feature: DHCP client
Feature: DHCP server
Input bandwidth: 128 Mbit/s
Output bandwidth: 32 Mbit/s
Recording modes: Schedule, Event
Audio system: 2-way

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 8
Total installed storage capacity: 0 GB
Maximum storage capacity: 48 TB
HDD interface: SATA III

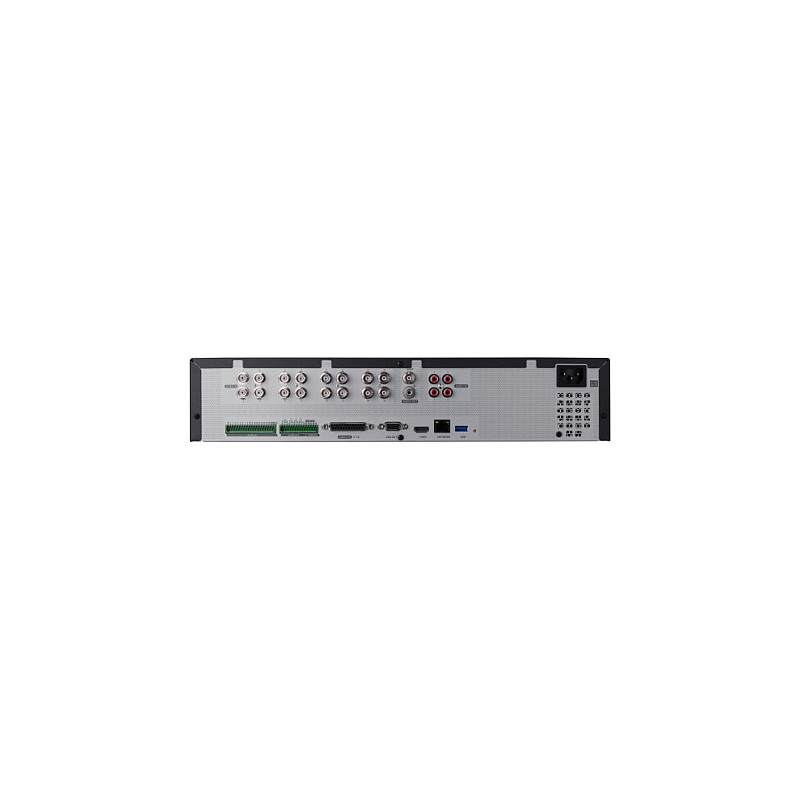

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: BNC video input
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Feature: Line-in

Features

LED indicators: Yes
Feature: On/off switch
Product colour: Black

Power

Power consumption (max): 200 W
AC input voltage: 100 - 240 V
AC input frequency: 50 / 60 Hz

System requirements

Mobile operating systems supported: iOS, Android

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 85%

Weight & dimensions

Width: 440 mm
Depth: 384.8 mm
Height: 88 mm

Packaging content

Feature: Quick installation guide
