Grandstream Networks HT802 v2

Grandstream Networks HT802 v2. Voice codecs: CNG, G.711, G.722, G.723.1, G.726-32, G.729ab, OPUS, VAD, Fax compatibility: T.38, Product colour: Black. Supported protocols: TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH,.... Security algorithms: SRTP, SSL/TLS. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50/60 Hz. Width: 100 mm, Depth: 100 mm, Height: 29.5 mm

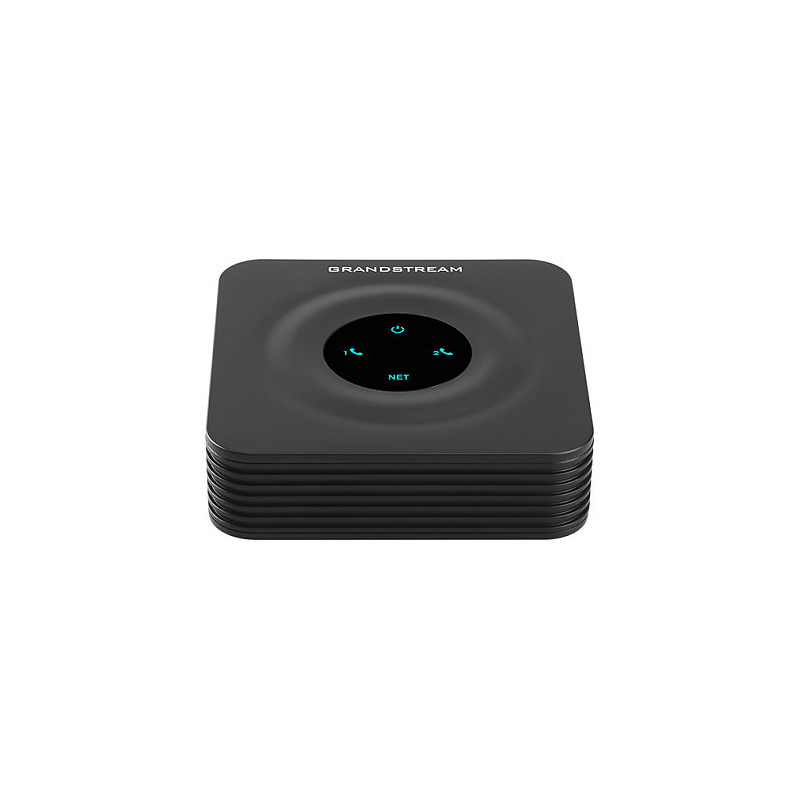

The HT802 V2 is a 2 port analog telephone adapter (ATA) that allows users to create a high-quality and
manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice
quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take
advantage of VoIP on analog phones and enables service providers to offer high quality IP service. The
HT802 V2 is an ideal ATA for individual use and for large scale commercial IP voice deployments.

Features

Voice codecs: CNG, G.711, G.722, G.723.1, G.726-32, G.729ab, OPUS, VAD
Fax compatibility: T.38
Feature: Reset button
Product colour: Black
Certification: FCC 15B, AS/NZS CISPR22, AS/NZS60950, EN55022, EN55024, EN60950, EN61000-3-2, EN61000-3-3, UL (Power supply)K.21

Network

Feature: Quality of Service (QoS) support

Call management

Feature: Caller ID
Feature: Conference call
Feature: Call waiting

Security

Security algorithms: SRTP, SSL/TLS

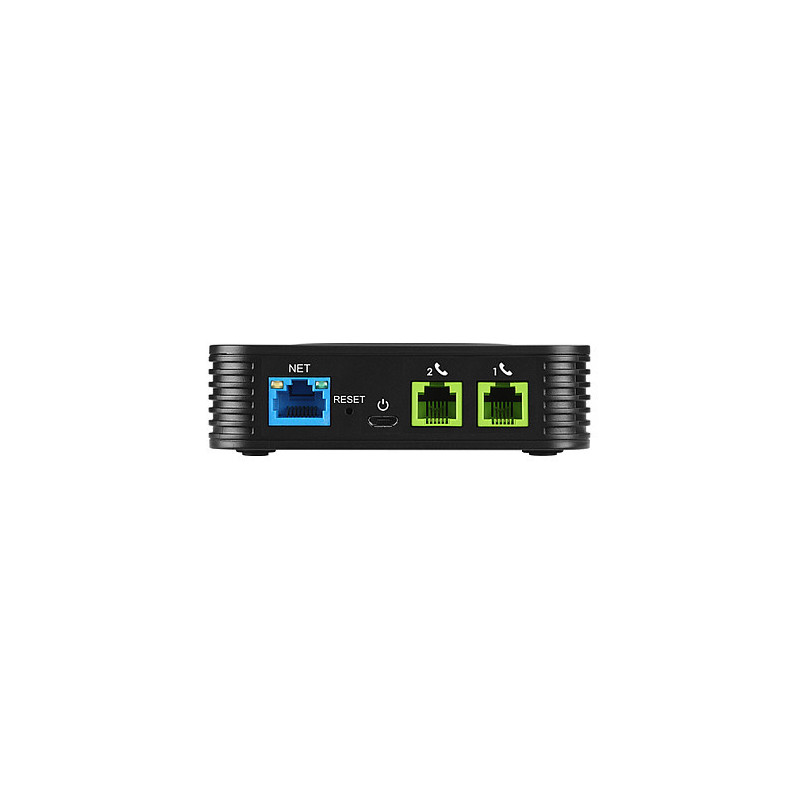

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Modem (RJ-11) ports: 2

Power

Power source type: AC
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Output voltage: 5 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 100 mm
Depth: 100 mm
Height: 29.5 mm
Weight: 114 g
