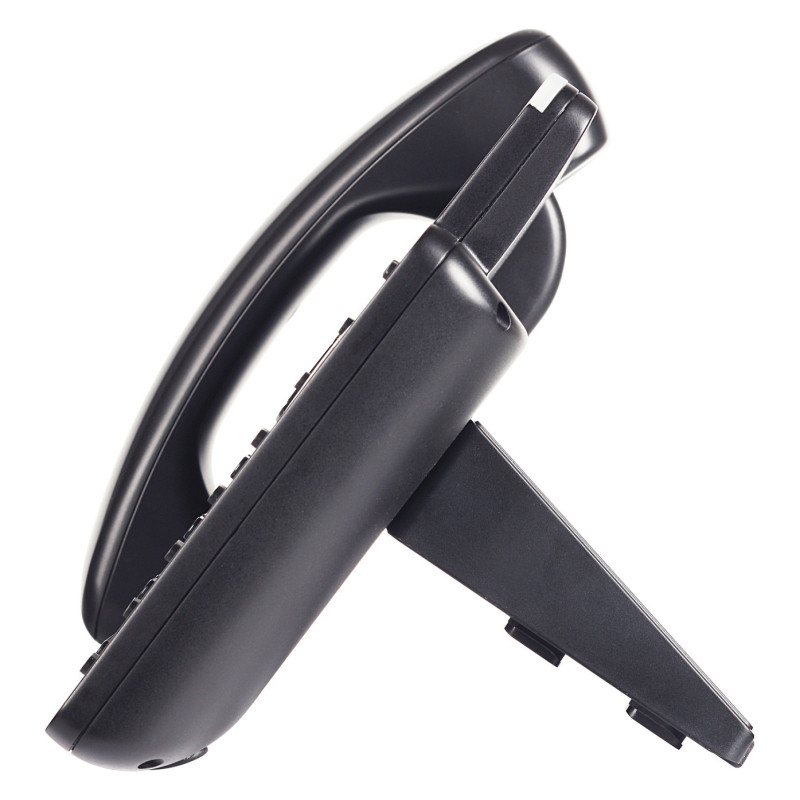

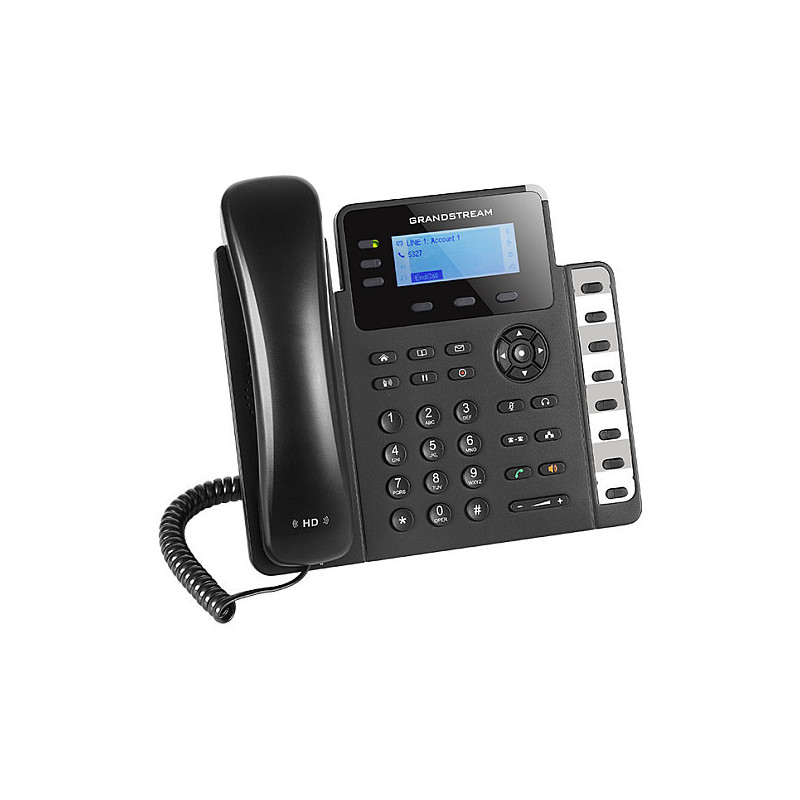

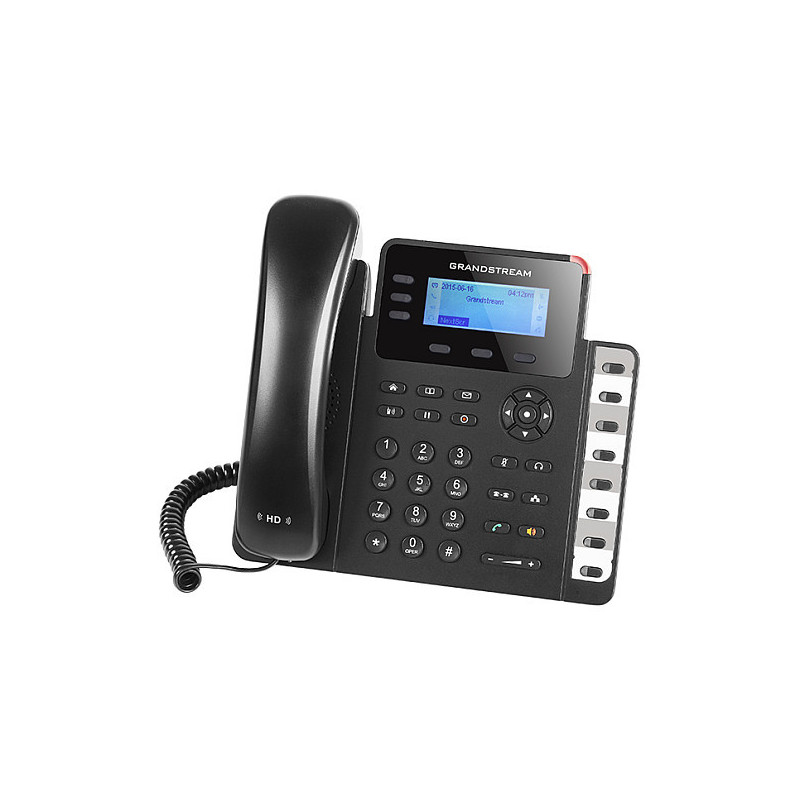

Grandstream Networks GXP1630 IP phone

Grandstream Networks GXP1630. Product type: IP Phone, Product colour: Black, Grey, Handset type: Wired handset. Operating system installed: Linux. Lines quantity: 3 lines, Phonebook capacity: 1000 entries. Display: LCD, Display diagonal: 7.57 cm (2.98"), Display resolution: 132 x 64 pixels. Voice codecs: AJB, CNG, G.711Mu, G.711a, G.722, G.723, G.726-32, G.729, PLC, VAD, iLBC

The GXP1630 comes equipped with a suite of VoIP features that are deployed in a clear and easy-to-use fashion. Focused primarily for low to medium call volumes and efficient call handling, its 3 line/SIP account design and 8 dual-colored BLF/speed dial keys gives this versatility. The GXP1630 also supports the best possible connection speeds and call quality with its dual Gigabit ports and HD audio on both speakerphone and handset. With other features such as its integrated PoE, 3 XML programmable soft keys and 4-way conferencing support, the GXP1630 is a high-quality and versatile Basic IP phone.

As all Grandstream IP phones do, the GXP1630 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1630 supports a variety of automated provisioning options, including zero-configuration with Grandstream's UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black, Grey
Mounting: Desk/Wall

Performance

Operating system installed: Linux

Phone features

Lines quantity: 3 lines
Feature: Answering machine
Call log entries: 200
Feature: Speed dialling
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Caller ID
Phonebook capacity: 1000 entries
Feature: Call park
Feature: Call pick up
Number of VoIP accounts: 3
Feature: Call transfer
Feature: Call history

Management features

Number of programmable keys: 3
Feature: Firmware upgradeable

Display

Display: LCD
Display diagonal: 7.57 cm (2.98")
Display resolution: 132 x 64 pixels

Audio

Feature: Speakerphone
Voice codecs: AJB, CNG, G.711Mu, G.711a, G.722, G.723, G.726-32, G.729, PLC, VAD, iLBC

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Quality of Service (QoS) support
Security algorithms: 256-bit AES, HTTPS, MD5, SRTP, TLS
Networking standards: IEEE 802.3af, IEEE 802.3az

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
Input frequency: 50/60 Hz
AC adapter output voltage: 5 V
AC adapter output current: 0.6 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight & dimensions

Width: 222.5 mm
Depth: 208.5 mm
Height: 76.2 mm
Weight: 800 g
Package weight: 1.2 kg

Packaging content

Feature: Quick start guide
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 85171800
