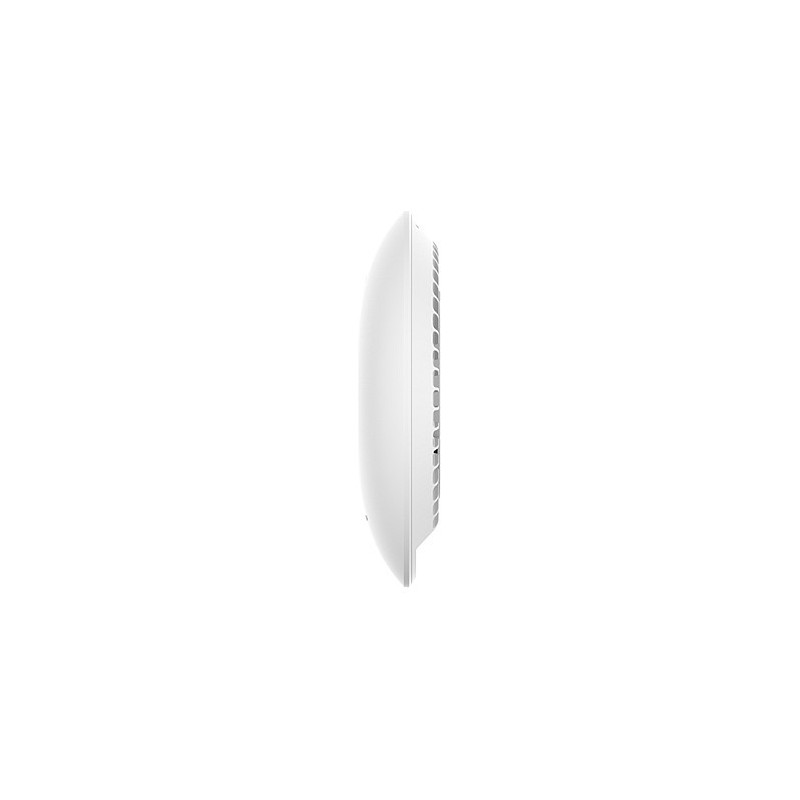

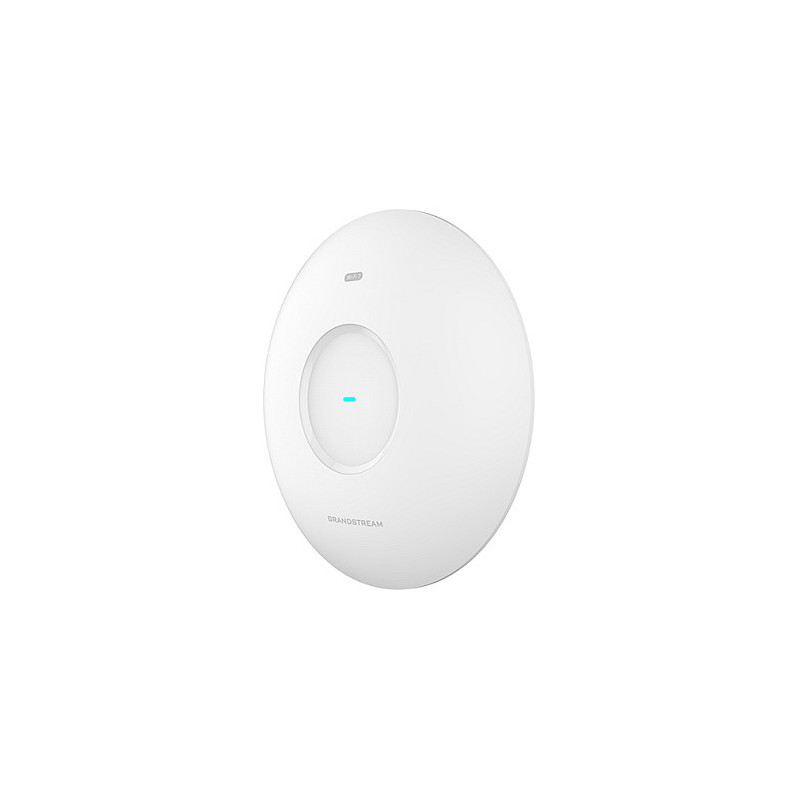

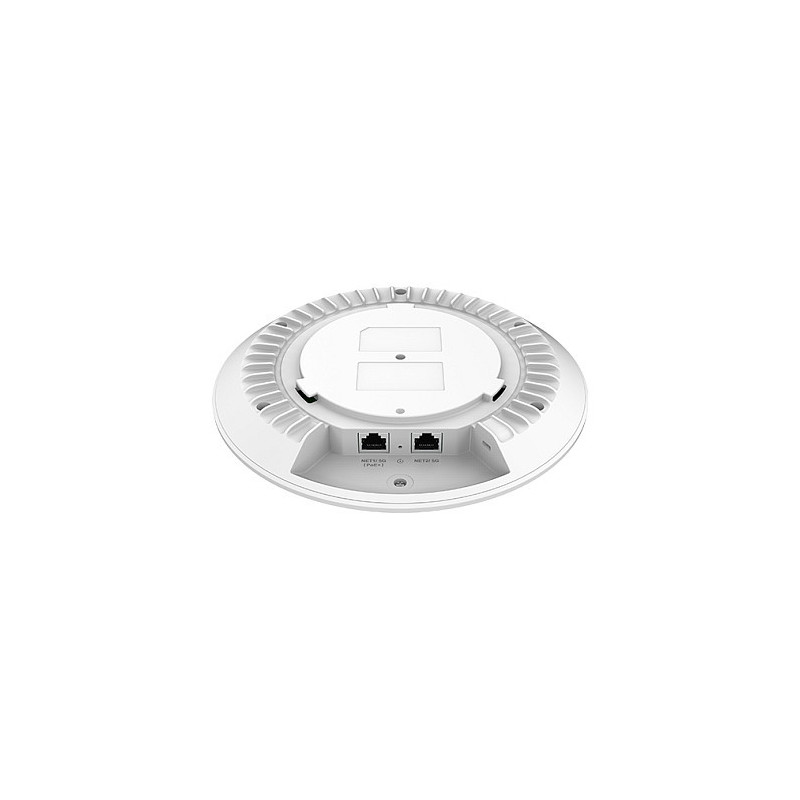

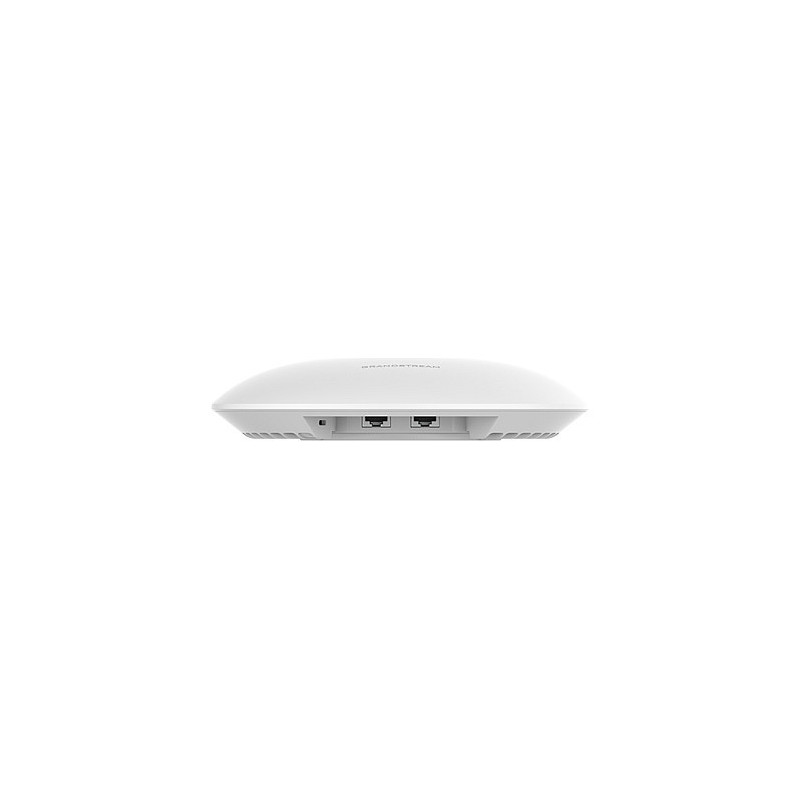

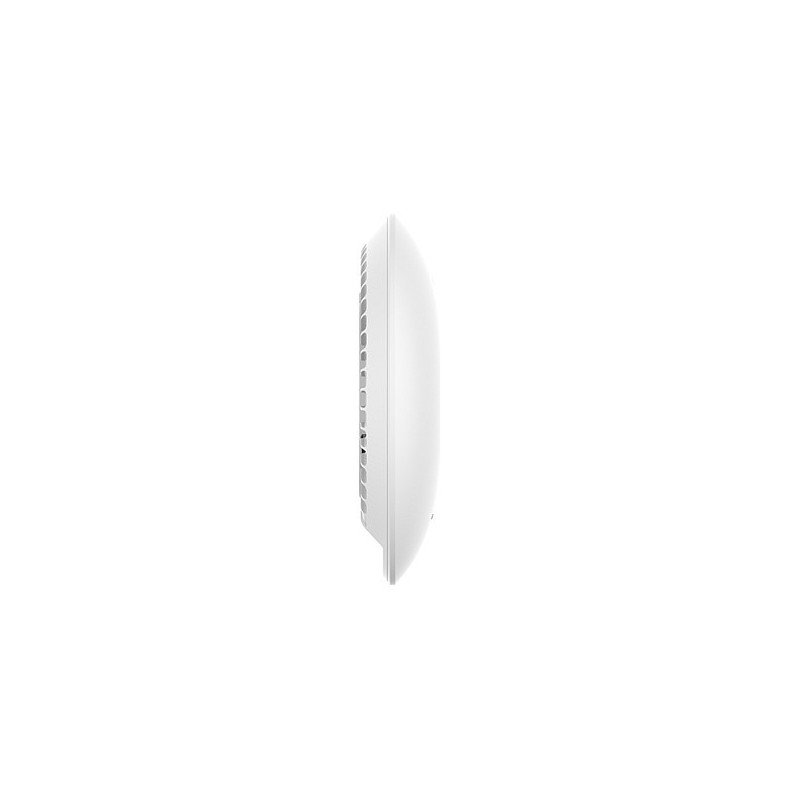

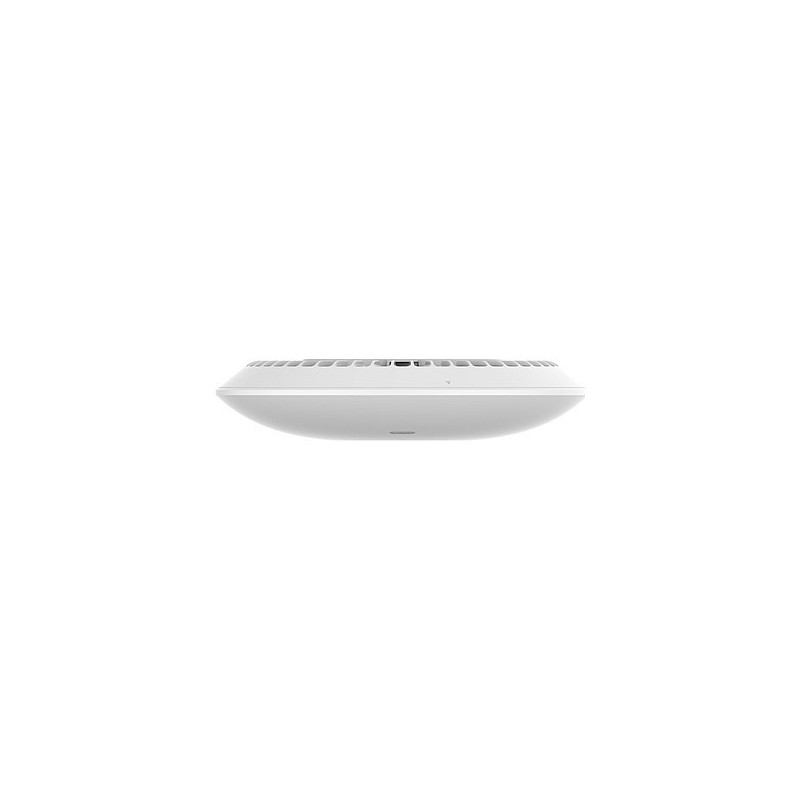

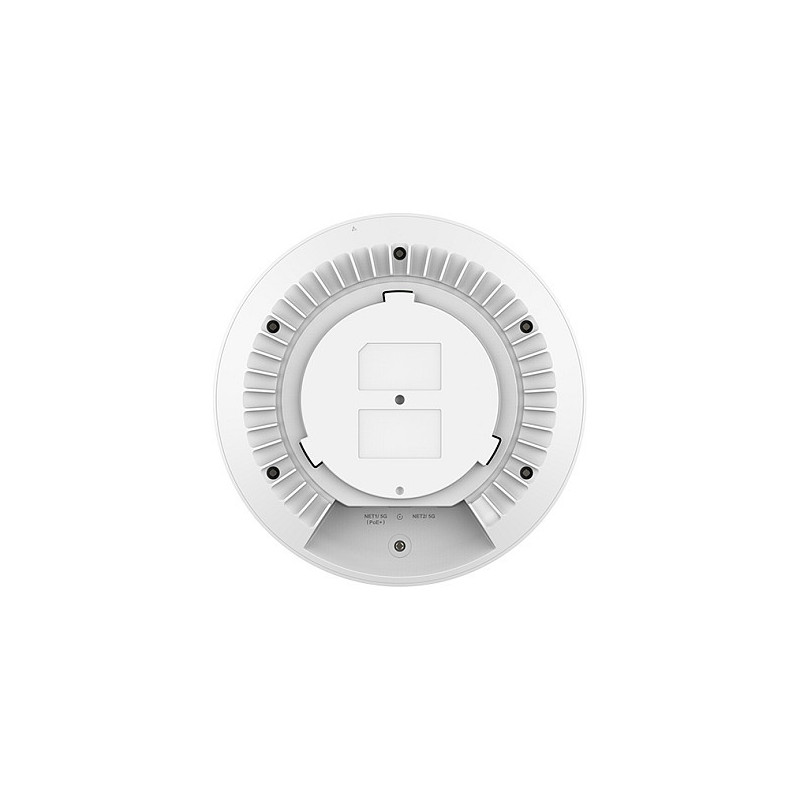

Grandstream Networks GWN7672 wireless access point

Grandstream Networks GWN7672. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5765 Mbit/s. Security algorithms: AES, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 25 W

GWN7672

The GWN7672 is a powerful enterprise-grade Wi-Fi 7 access point that provides wireless speeds up to 11Gbps (BE11000), ideal for demanding environments with medium to high user density.

State-of-the-Art Wi-Fi 7 Connectivity

The GWN7672 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

Tri-Band Maximizes Speeds and Clients

The GWN7672 provides three bands to fully utilize spectrum resources while maximizing device support and speeds.

Ideal for Demanding Environments

The GWN7672 provides speeds up to 11Gbps while supporting up to 384 clients per AP, making it an ideal solution for high-usage environments.

High-Performance, Maximum Efficiency

Devices can connect on multiple bands to ensure that high-priority data gets transmitted without delay while providing faster speeds through aggregation.

Twice as Fast as Wi-Fi 6

Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream's Wi-Fi 7 APs to provide maximum speeds and capacity.

Easy and Free Management

Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 5765 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4320 Mbit/s
Maximum data transfer rate (6 GHz): 5765 Mbit/s
Coverage area: 175 m²
Number of users: 384 user(s)
Feature: Bluetooth
Bluetooth version: 5.3
Feature: MIMO
Feature: Quality of Service (QoS) support
Maximum Tx power (2.4 GHz): 26 dBmW
Maximum Tx power (5 GHz): 25 dBmW
Maximum Tx power (6 GHz): 24 dBmW

Security

Security algorithms: AES, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
Number of SSID supported: 48

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power consumption (max): 25 W

Design

Placement: Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
LED indicators: Yes

Antenna

Antenna type: Internal
Antennas quantity: 7
Antenna gain level (max): 5 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM

Weight & dimensions

Width: 220 mm
Depth: 54 mm
Height: 220 mm
Weight: 838.4 g

Packaging data

Package width: 275 mm
Package depth: 76 mm
Package height: 266 mm
Package weight: 1.27 kg

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -30 - 60 °C
