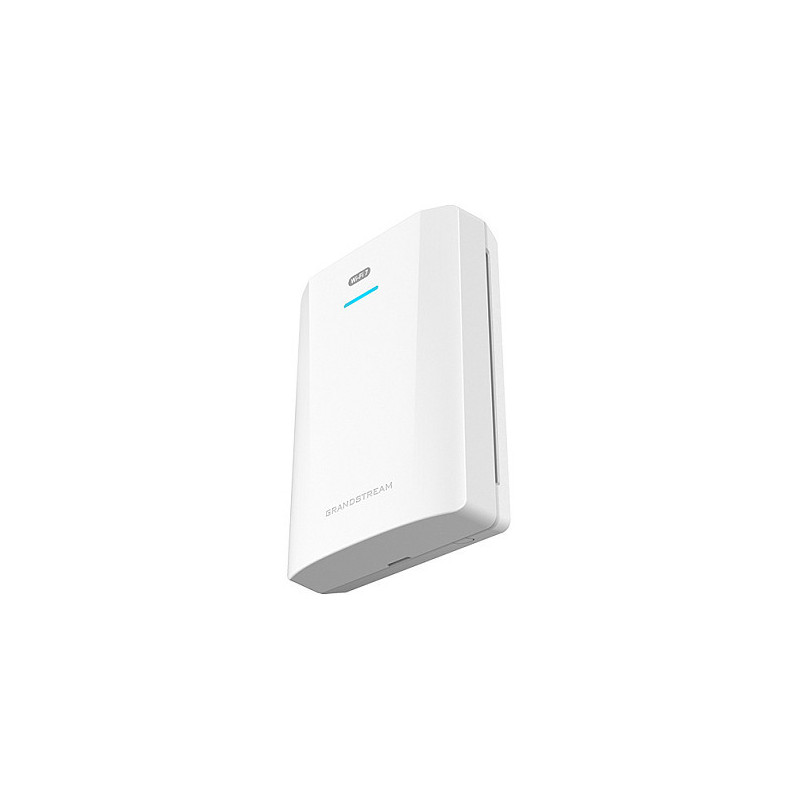

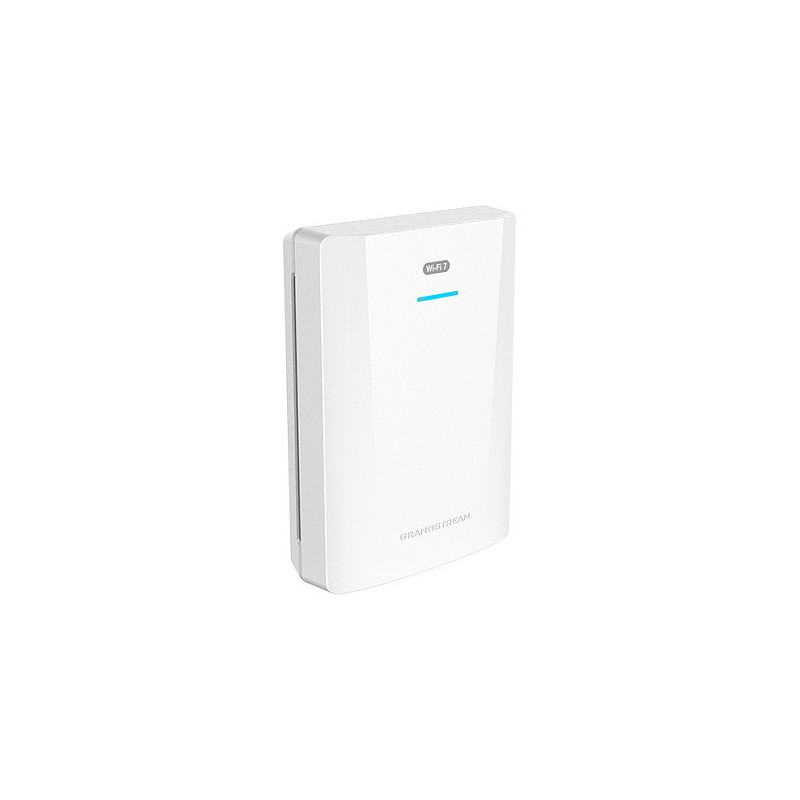

Grandstream Networks GWN7670WM wireless access point

Grandstream Networks GWN7670WM. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3600 Mbit/s. Security algorithms: WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 15.5 W

The GWN7670WM is a new generation enterprise-grade 802.11be IN-Wall Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

State-of-the-Art Wi-Fi 7 Connectivity
The GWN7670WM is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

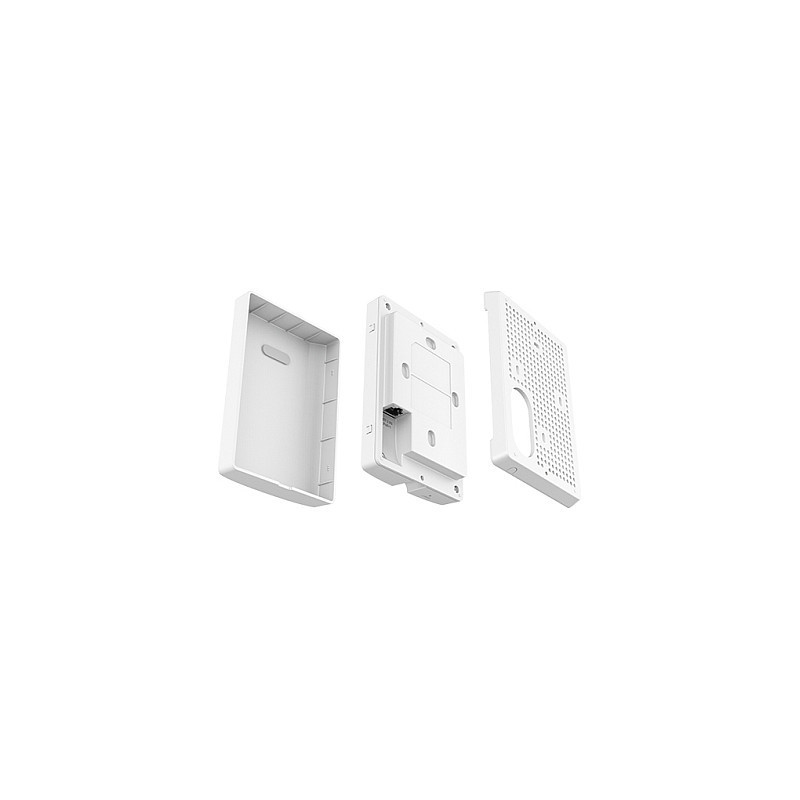

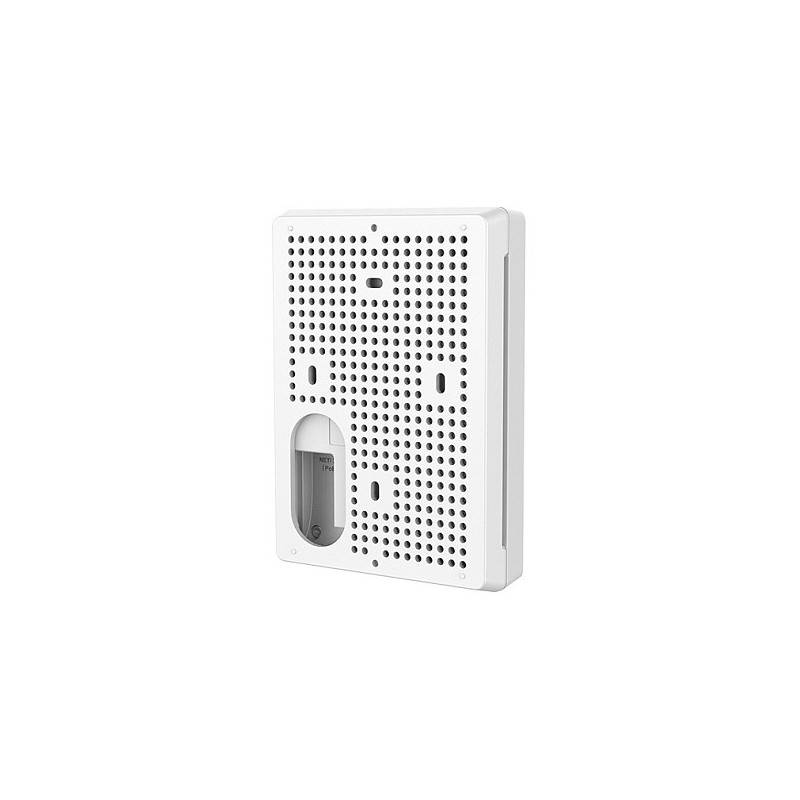

Designed for Seamless Wall Mounting

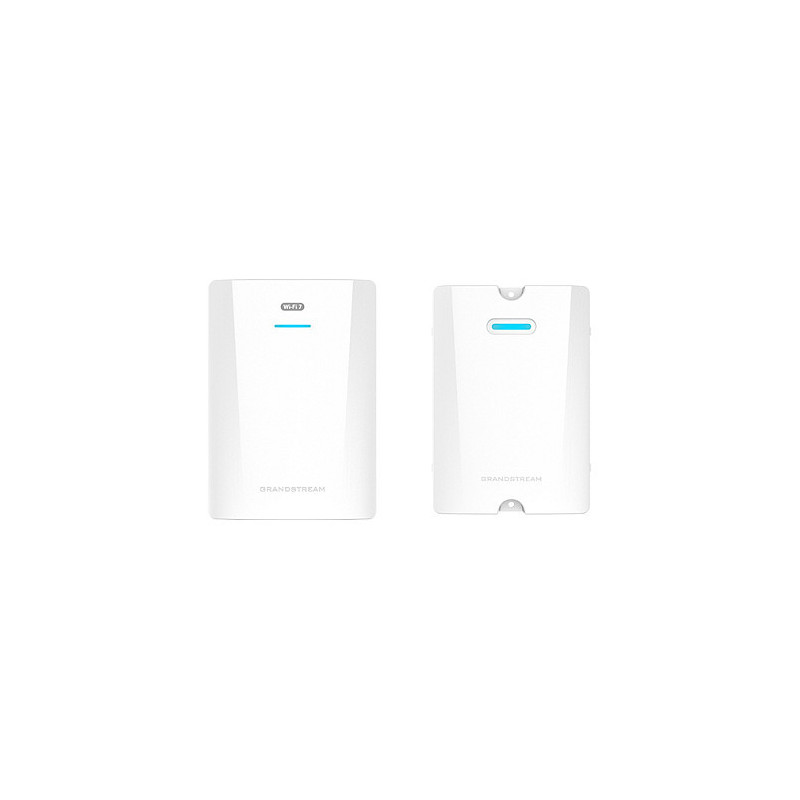

The GWN7670WM provides clean design and a paintable shell, allowing it to easily match any environment and integrate into any space.

Ideal for Environments with Medium User Density
The GWN7670WM provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.

Twice as Fast as Wi-Fi 6
Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream's Wi-Fi 7 APs to provide maximum speeds and capacity

Easy and Free Management
Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Free Network Management Options
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product's web user interface.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 3600 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 2882 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Number of simultaneously connected devices (max): 256
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Bluetooth Low Energy (BLE)
Feature: MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Feature: Quality of Service (QoS) support

Security

Security algorithms: WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3
Number of SSID supported: 32

Management features

Feature: Web-based management

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power consumption (max): 15.5 W

Design

Placement: In-wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antennas quantity: 5
Antenna gain level (max): 4 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM

Weight & dimensions

Width: 150 mm
Depth: 34.1 mm
Height: 106 mm
Weight: 473 g

Packaging data

Package weight: 600 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -30 - 60 °C
