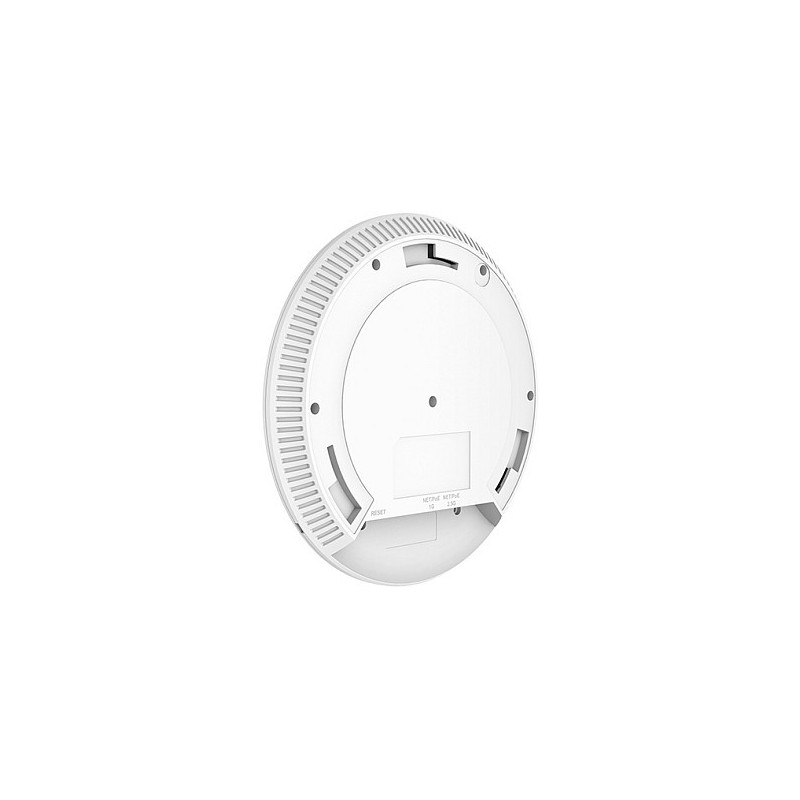

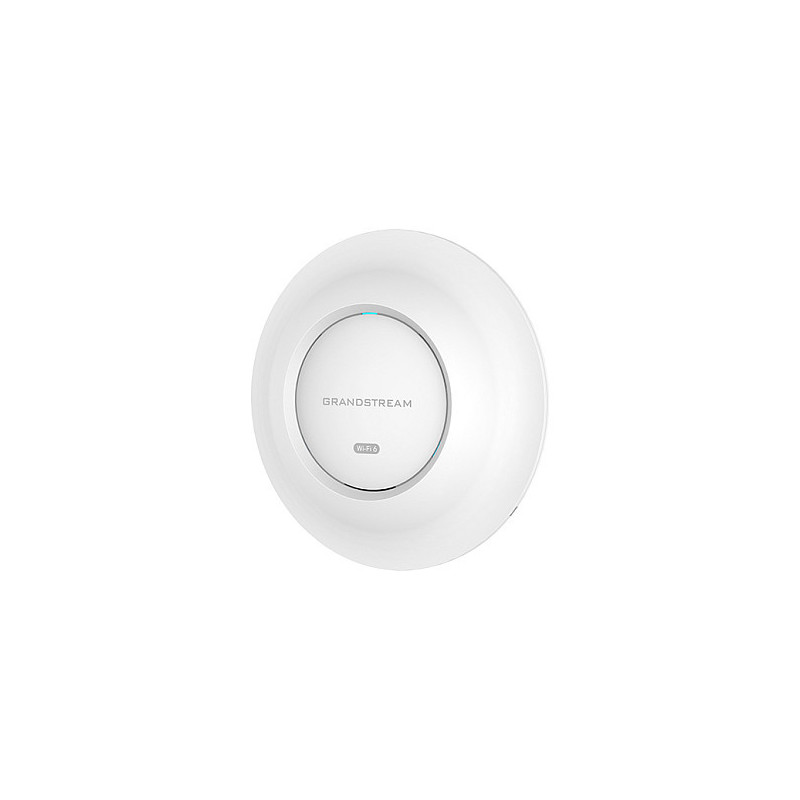

Grandstream Networks GWN7664E wireless access point

Grandstream Networks GWN7664E. 2.4 GHz, 5 GHz, Maximum data transfer rate: 6000 Mbit/s. Security algorithms: SSID, WPA, WPA2-Enterprise, WPA2-PSK, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 21 W
The GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for medium-to-large sized businesses, multiple-floor buildings, residential settings, and commercial locations.
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.
GUN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.
Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product's web user interface.

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 6000 Mbit/s
Maximum data transfer rate (2.4 GHz): 1147 Mbit/s
Maximum data transfer rate (5 GHz): 4800 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Frequency band: 2400 - 2483.5, 5150 - 5895 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Number of WLAN connections (max): 512
Quality of Service (QoS) support: Yes
Maximum outdoor range: 175 m

Security

Security algorithms: SSID, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
Number of SSID supported: 32

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE): Yes
Power consumption (max): 21 W

Design

Placement: Ceiling, Wall
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
Reset button: Yes
LED indicators: Yes

Antenna

Antenna type: Internal
Antennas quantity: 8
Antenna gain level (max): 4.5 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM

Weight dimensions

Width: 205.3 mm
Depth: 205.3 mm
Height: 45.9 mm
Weight: 714 g

Packaging data

Package width: 258 mm
Package depth: 247 mm
Package height: 86 mm
Package weight: 1.06 kg

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 60 °C
