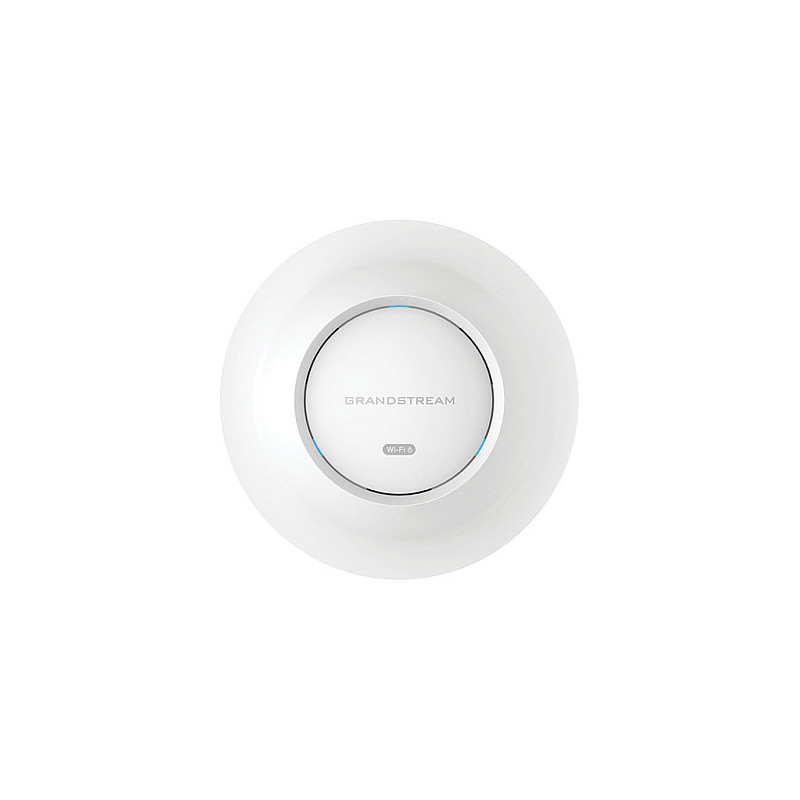

Grandstream Networks GWN7662 wireless access point

Grandstream Networks GWN7662. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4804 Mbit/s. Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9 W
The GWN7662 is an 802.11ax Wi-Fi 6 access point ideal for small -to-medium sized businesses, home offices, retail shops, restaurants, hospitality, education and more. It offers 4x 4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. Wi-Fi 6 technology supports the modern generation of dense environments where many users and many devices require consistent and reliable Wi- Fi connections at higher speeds. To ensure easy installation and management, the GWN7662 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7662 is also supported by GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7662 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 4804 Mbit/s
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 4804 Mbit/s
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO: Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Maximum indoor range: 175 m

Security

Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported: 32

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE): Yes
Power consumption (max): 9 W

Design

Placement: Wall
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
LED indicators: Status

Antenna

Antenna type: Internal
Antennas quantity: 6
Antenna gain level (max): 5.26 dBi

Certificates

Certification: FCC, CE, RCM, IC

Weight dimensions

Width: 205.3 mm
Depth: 205.3 mm
Height: 45.9 mm
Weight: 540 g

Packaging data

Package width: 247 mm
Package depth: 258 mm
Package height: 86 mm
Package weight: 910 g

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 45 °C
Storage temperature (T-T): -30 - 60 °C
