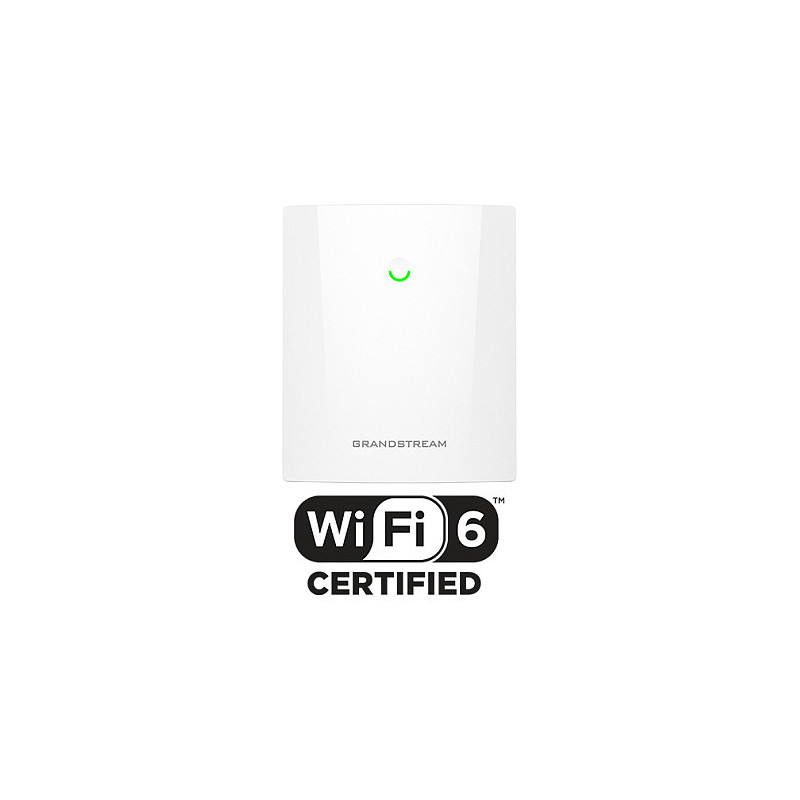

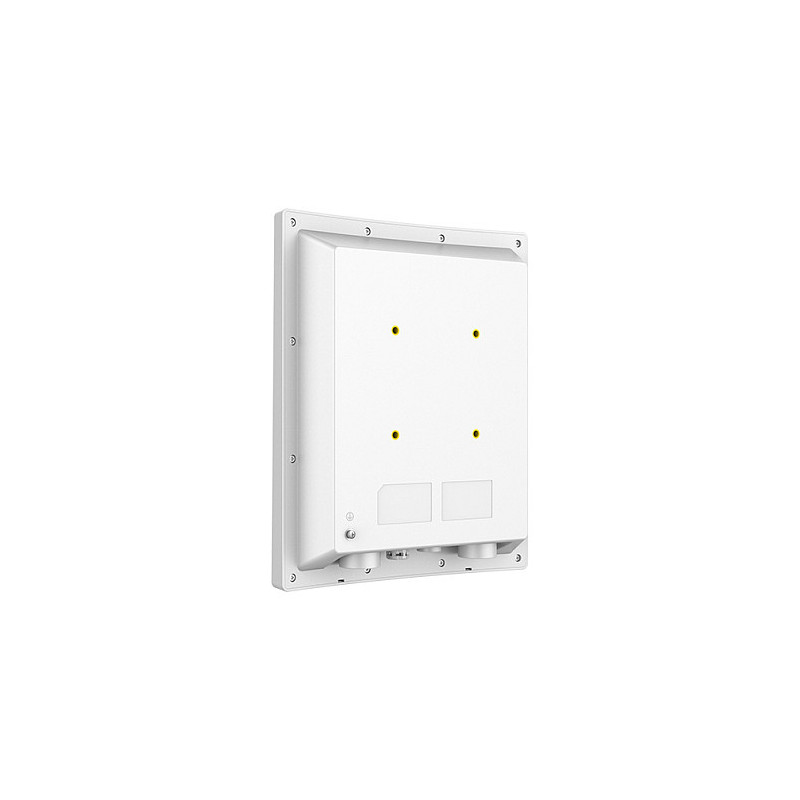

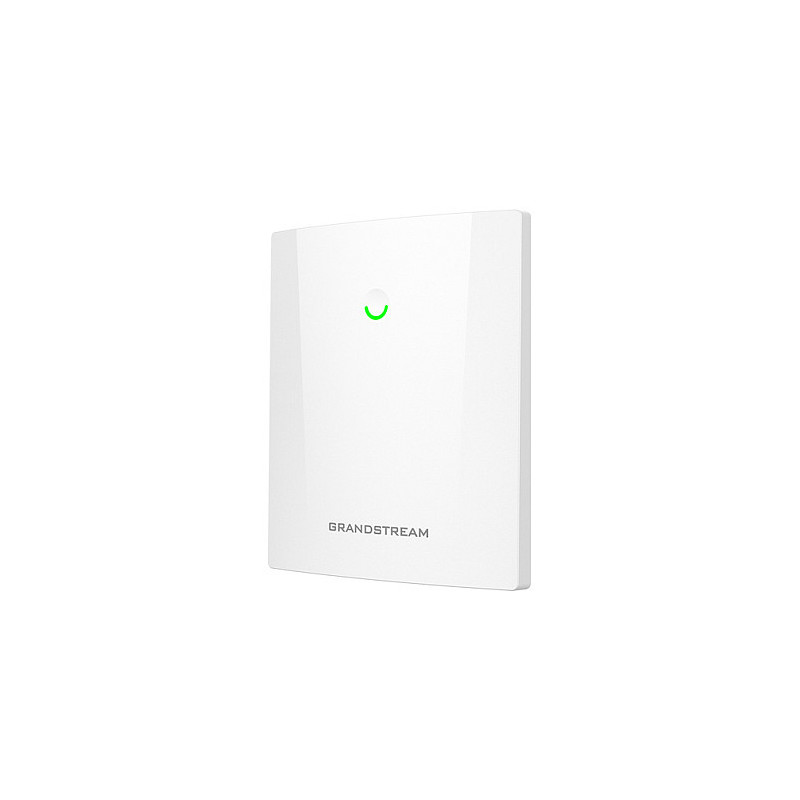

Grandstream Networks GWN7660ELR wireless access point

Grandstream Networks GWN7660ELR. 2.4 GHz, 5 GHz. Security algorithms: WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3. Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W

GWN Enterprise-Grade 2x2:2 Wi-Fi 6 Weatherproof Long-Range Access Point
The GWN7660ELR is an enterprise-grade long-range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments.

Free Network Management Options

GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product's web user interface.

Self-Guided Networking Solution Training
Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.



Wi-Fi 6
Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world's most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream's Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 2.4 Mbit/s
Ethernet LAN data rates: 1000 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Number of users: 256 user(s)
Feature: MIMO

Security

Security algorithms: WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3
Number of SSID supported: 32

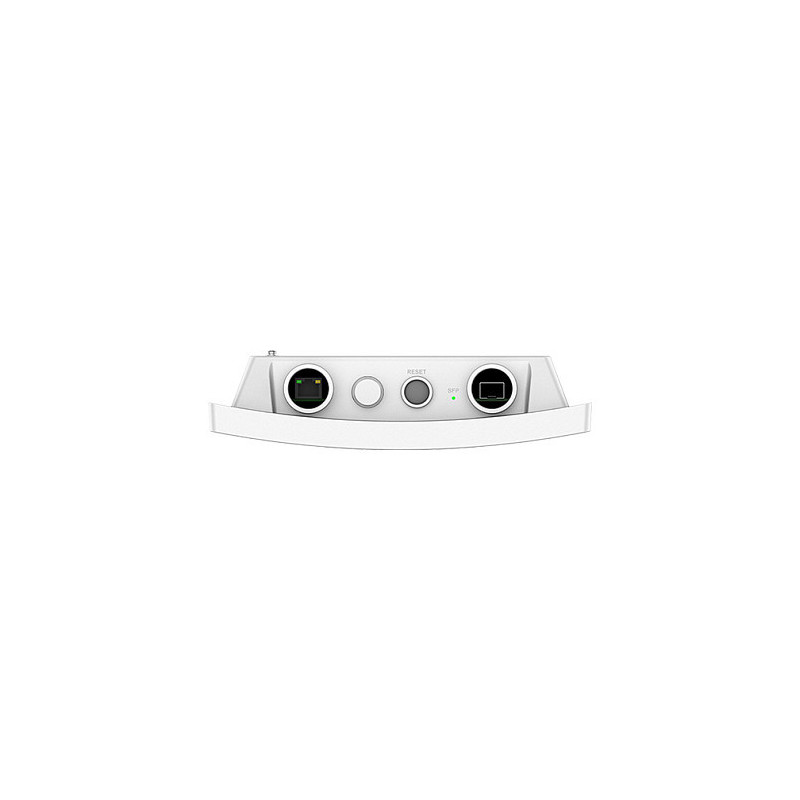

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: SFP

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 13 W

Design

Placement: Table, Wall
Product colour: White
LED indicators: Yes

Antenna

Antenna type: Internal
Antennas quantity: 5

Weight & dimensions

Width: 270 mm
Depth: 230 mm
Height: 57 mm

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit

Other features

Wireless range: 300 m
