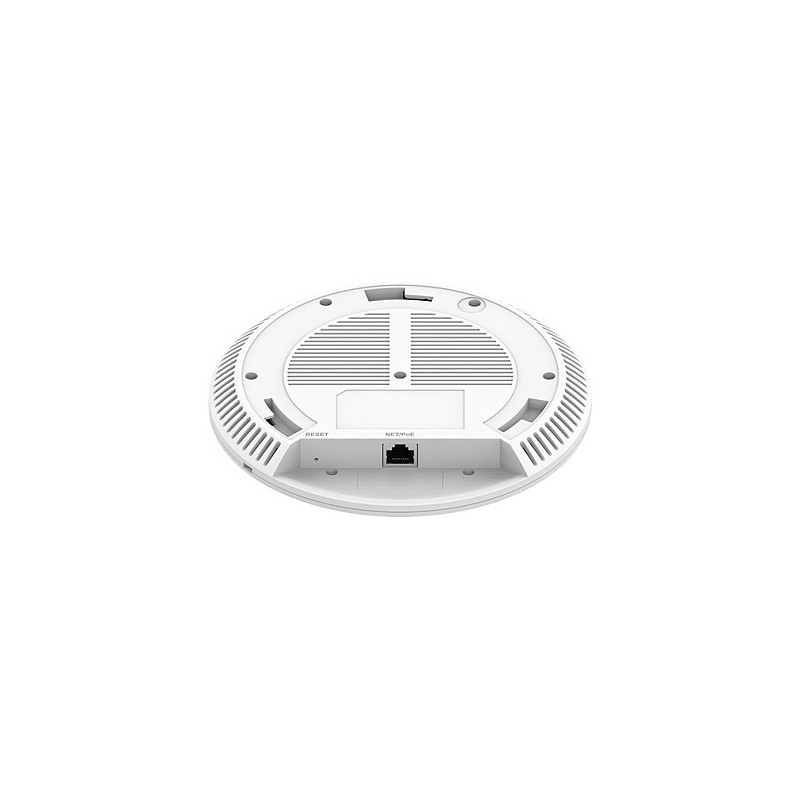

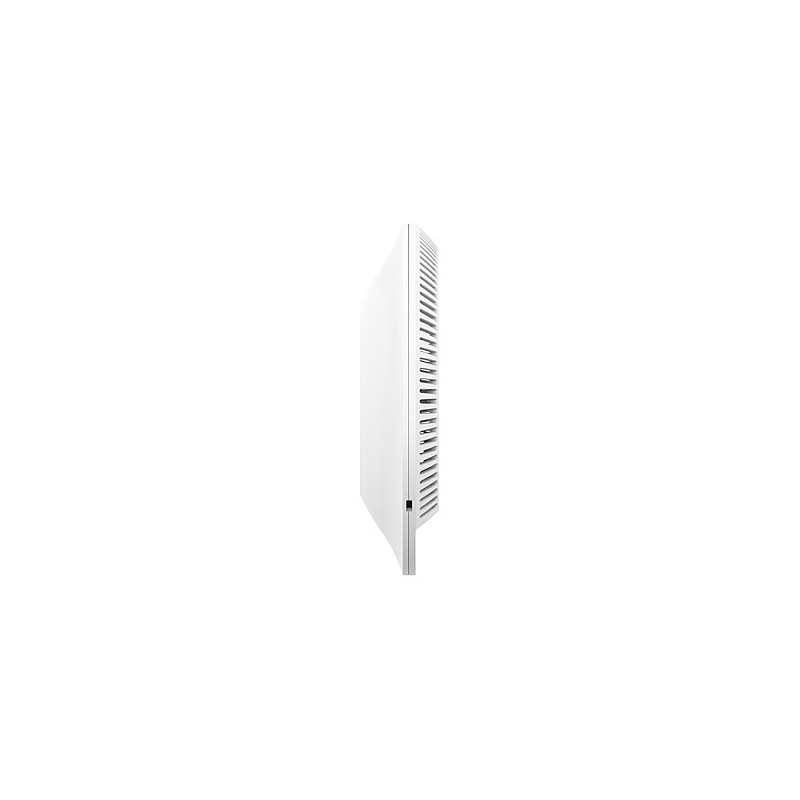

Grandstream Networks GWN7660E wireless access point

Grandstream Networks GWN7660E. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1770 Mbit/s. Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9 W
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1770 Mbit/s
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: MIMO
Feature: VLAN support
Feature: Quality of Service (QoS) support
Maximum indoor range: 175 m

Security

Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported: 32

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 9 W

Design

Placement: Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
LED indicators: Status

Antenna

Antenna type: Internal
Antenna gain level (max): 4 dBi

Certificates

Certification: FCC, CE, RCM, IC

Weight dimensions

Width: 180.4 mm
Depth: 180.4 mm
Height: 40.8 mm
Weight: 443 g

Packaging data

Package width: 228.5 mm
Package depth: 220 mm
Package height: 79 mm
Package weight: 774 g

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 60 °C

Logistics data

Harmonized System (HS) code: 85176990
