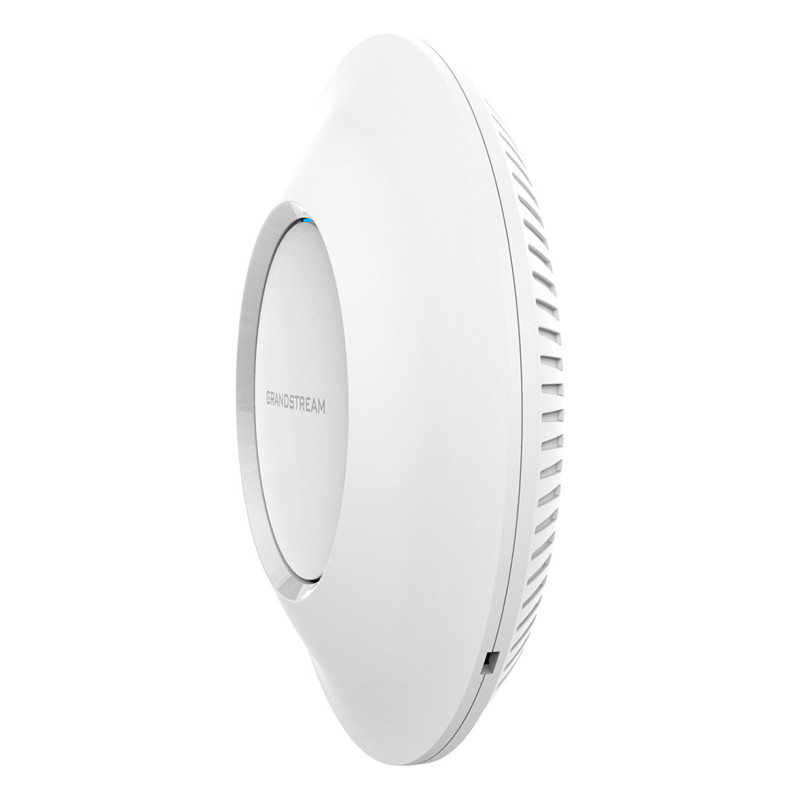

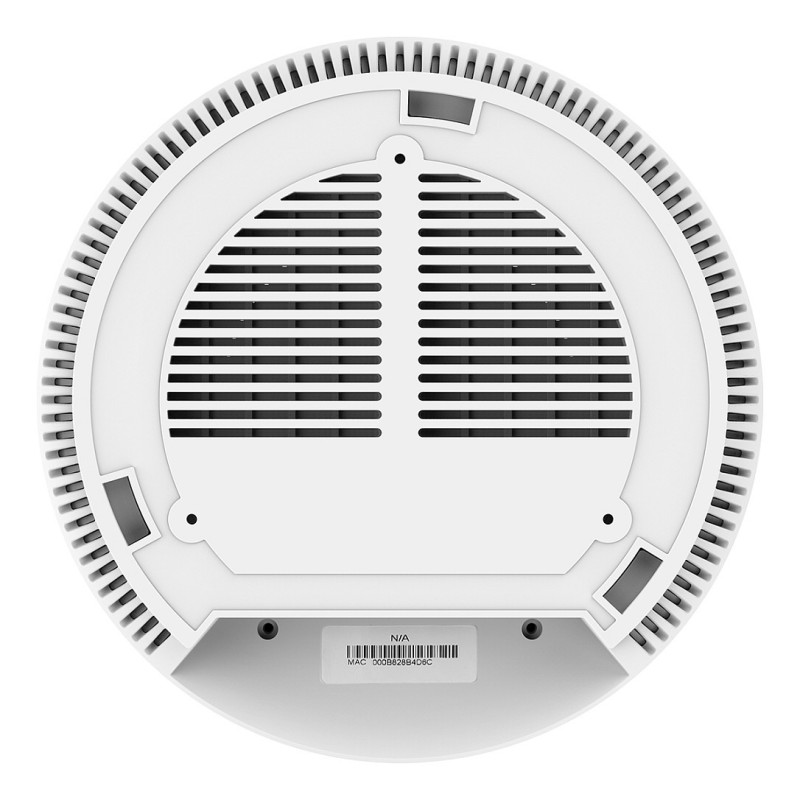

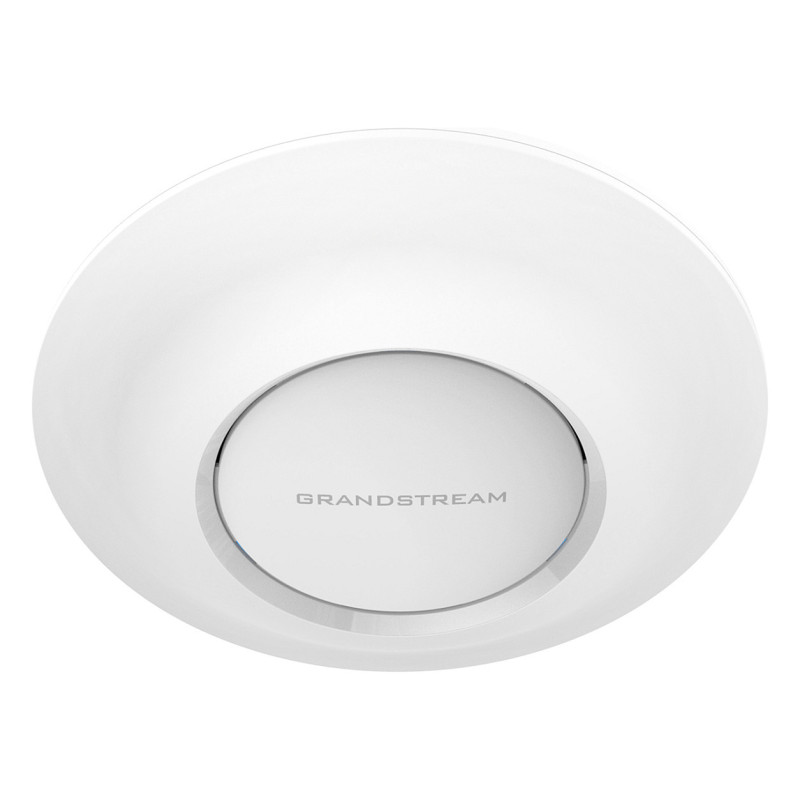

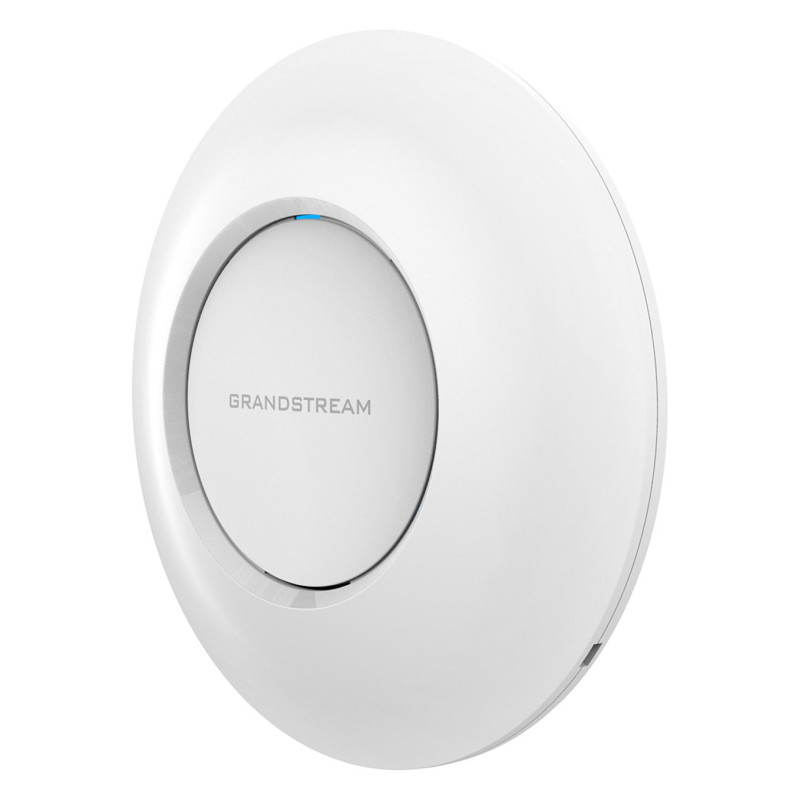

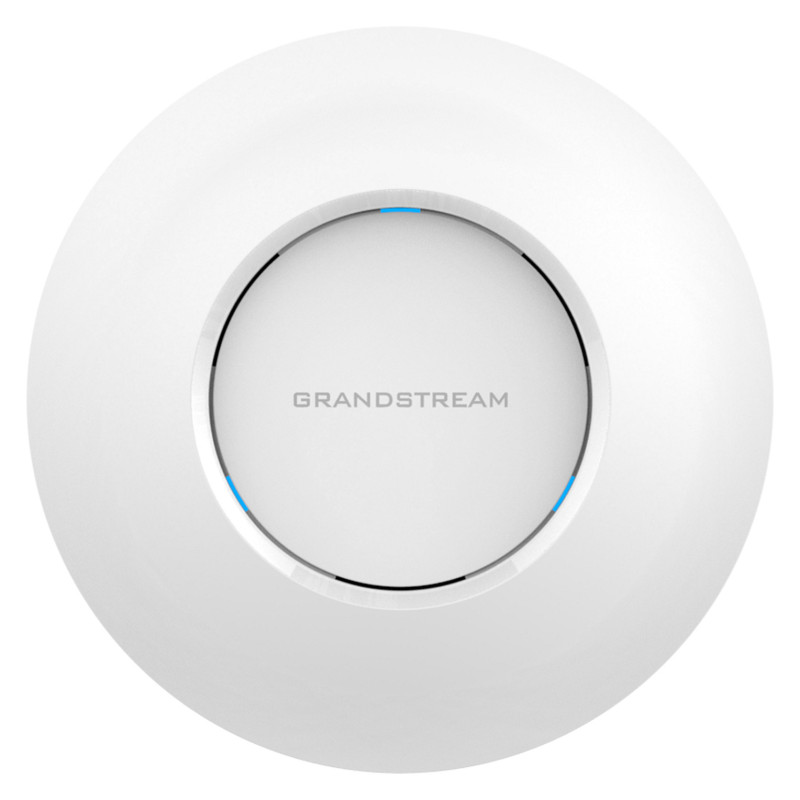

Grandstream Networks GWN7625 wireless access point

Grandstream Networks GWN7625. 2.4 GHz, 5 GHz. Security algorithms: TKIP, WEP, WPA, WPA2-PSK, WPA3. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W

The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants and more. It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7625 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7625 is also supported by GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advance d QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7625 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Quality of Service (QoS) support

Security

Security algorithms: TKIP, WEP, WPA, WPA2-PSK, WPA3
Number of SSID supported: 16

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 13 W

Design

Placement: Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Reset button

Antenna

Antenna type: Internal
Antennas quantity: 6
Antenna gain level (max): 4.5 dBi

Certificates

Certification: FCC, CE, RCM, IC, UKCA

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 60 °C
