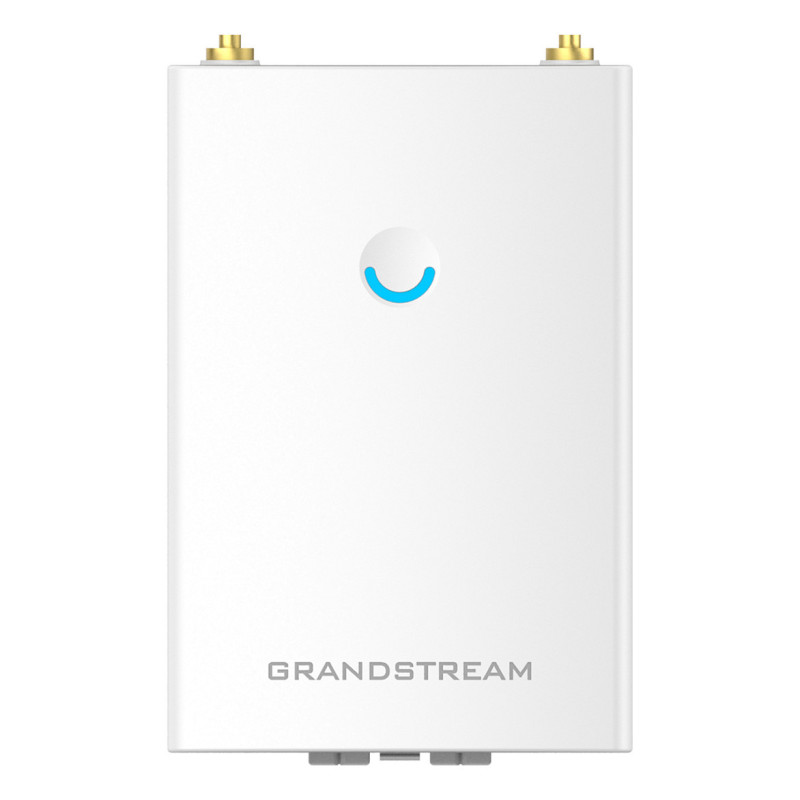

Grandstream Networks GWN7600LR wireless access point

Grandstream Networks GWN7600LR. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: WEP, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

The GWN7600LR is a powerful outdoor, long-range WiFi Access Point featuring weatherproof casing and heat resistent technology. It comes equipped with dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and extended WiFi coverage range of up to 300 meters. To ensure easy installation and management, the GWN7600LR uses a controller-less distributed network management design and an embedded controller within the product's web user interface. This allows each access point to manage a network of up to 30 GWN APs independently without needing separate controller hardware/software and without a single point-of-failure. Its easy installation and management features packed with extra coverage support and advanced performance features, make the GWN7600LR an ideal outdoor access point for mid-size wireless network deployments.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 867 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2400 - 24835, 5150 - 5250, 5725 - 5850 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Channel bandwidth: 80 MHz
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Quality of Service (QoS) support
Maximum outdoor range: 300 m
Transmitting power: 26 dBmW

Security

Security algorithms: WEP, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) features: Hidden SSID
Number of SSID supported: 16

Protocols

Supported network protocols: IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)

Design

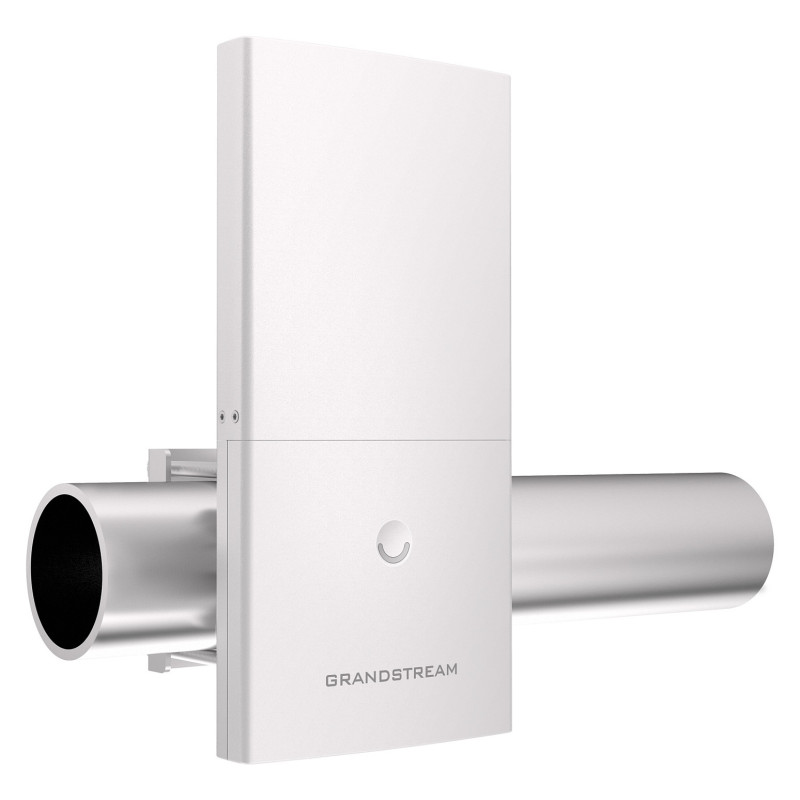

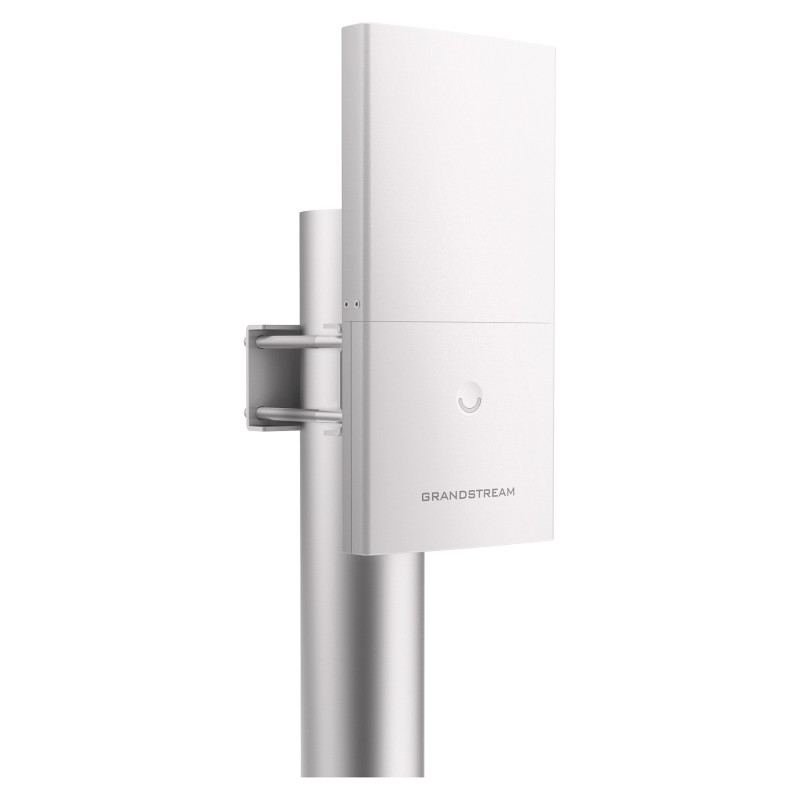

Placement: Pole
Product colour: White
International Protection (IP) code: IP66
LED indicators: Status

Antenna

Antenna type: Internal
Antenna features: Integrated antenna
Antennas quantity: 4
Antenna gain level (max): 5 dBi

Certificates

Certification: FCC, CE, RCM, IC

Weight & dimensions

Width: 150 mm
Depth: 35 mm
Height: 290 mm
Weight: 708 g

Packaging data

Package depth: 187 mm
Package height: 97 mm
Package volume: 423 cm³
Package weight: 1.84 kg

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 70 °C
Storage relative humidity (H-H): 5 - 95%
