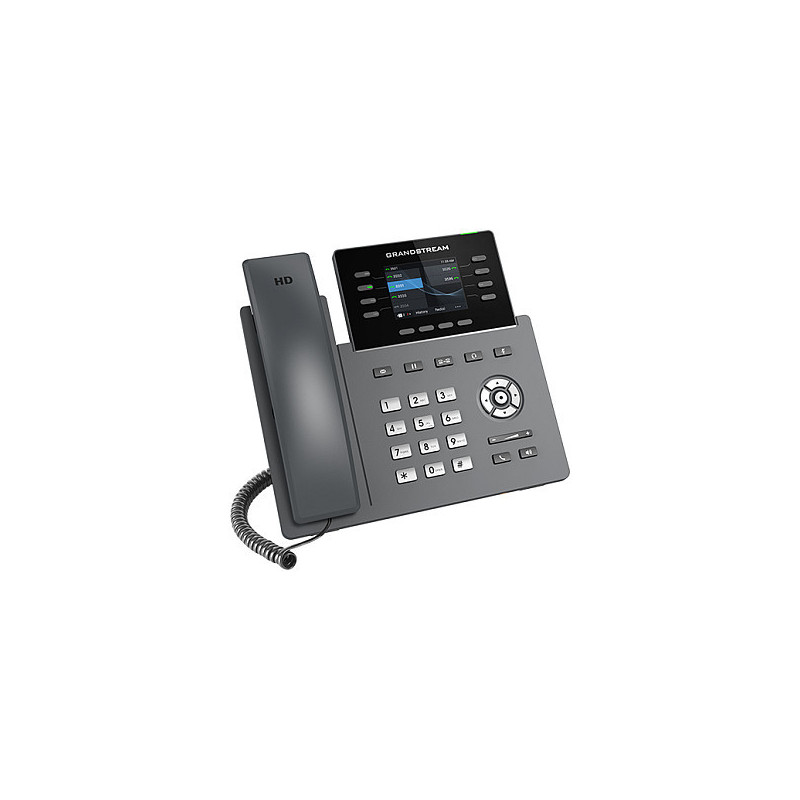

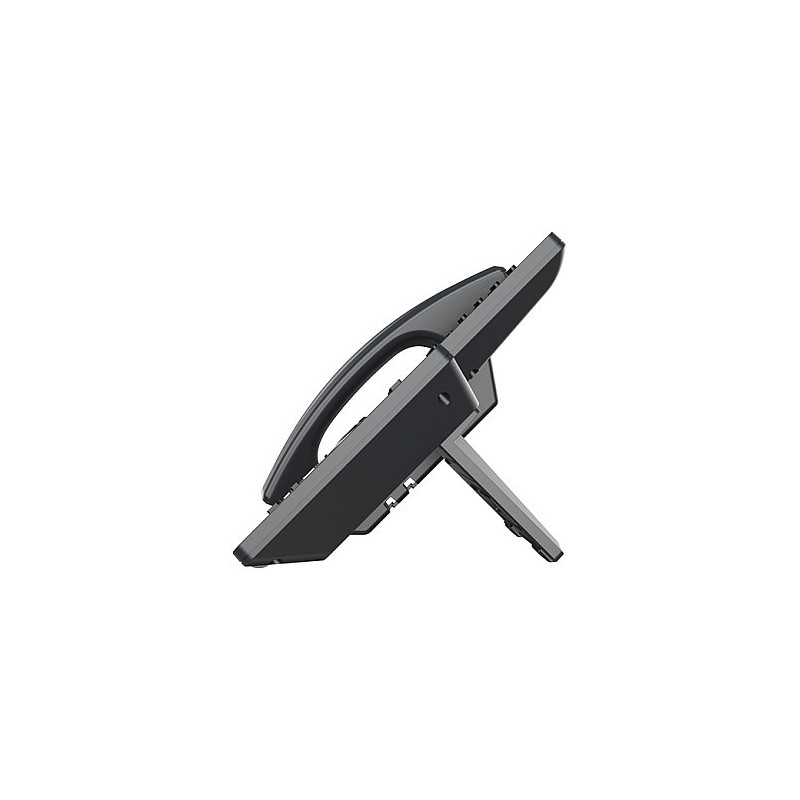

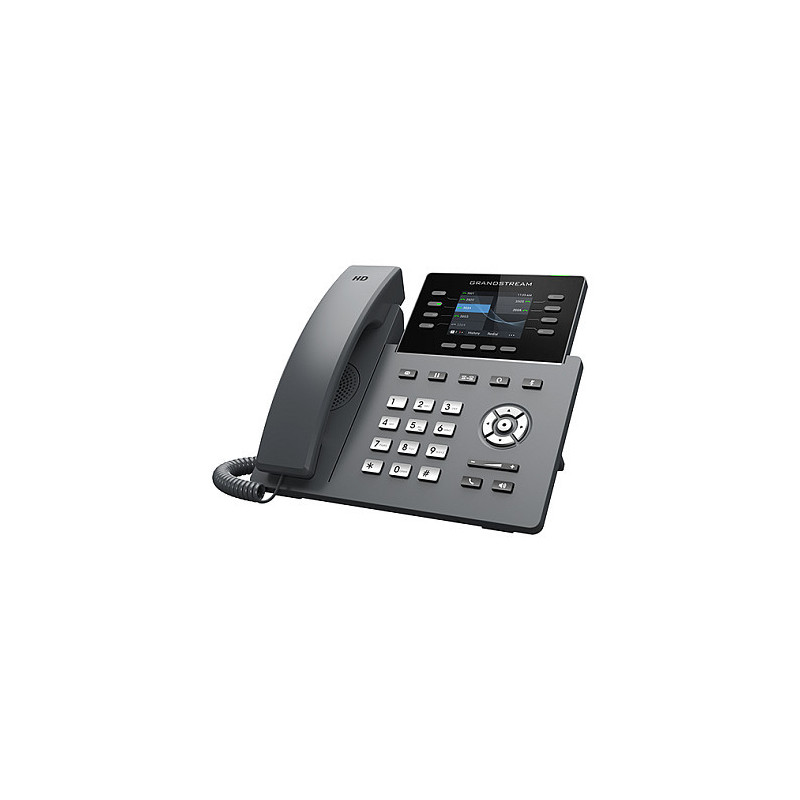

Grandstream Networks GRP2624 IP phone

Grandstream Networks GRP2624. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info, Password protection type: Supervisor, User. Lines quantity: 8 lines, Phonebook capacity: 2000 entries. Volume control: Buttons. Display: TFT, Display diagonal: 7.11 cm (2.8"), Display resolution: 320 x 240 pixels

Part of the GRP series of Carrier-Grade IP Phones, the GRP2624 is a professional 8-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including: 5-way voice conferencing to maximize productivity, integrated Wi-Fi, Bluetooth support, full HD audio on both the speaker and handset to provide the utmost clarity, EHS support for Plantronics headsets and USB to support Grandstream's GUV Series headsets. The GRP2624 is compatible with the GBX20 Extension Module that adds functionality, versatility and flexibility with up to 40 contacts per module and support for up to 160 contacts by connecting 4 extension modules. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2624 is supported by Grandstream's Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. The GRP2624 is the perfect choice for busy professionals and receptionists who need to manage high call volumes, with advanced functionality. Designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2624 offers an easy-to-use and easy-to-deploy voice endpoint.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info
Password protection type: Supervisor, User

Phone features

Lines quantity: 8 lines
Feature: Answering machine
Call log entries: 2000
Feature: Call waiting
Feature: Speed dialling
Feature: Call hold
Feature: Call forwarding
Feature: Conference call
Feature: On-hook dialling
Phonebook capacity: 2000 entries
Feature: Call park
Feature: Call pick up
Feature: Phonebook sharing
Feature: Call transfer
Feature: Call history
Feature: Customizable wallpaper

Management features

Volume control: Buttons
Number of programmable keys: 4
Number of function keys: 9
Feature: Firmware upgradeable

Display

Display: TFT
Display diagonal: 7.11 cm (2.8")
Display resolution: 320 x 240 pixels

Audio

Feature: Speakerphone
Number of microphones: 2
Voice codecs: G.722, G.729A, G.729B, G.711Mu, G.723, G.711alaw, G.726, iLBC, OPUS
Feature: Noise reduction

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Feature: Bluetooth
Feature: Quality of Service (QoS) support
Security algorithms: MD5, TLS, 256-bit AES, 802.1x RADIUS, SRTP
Networking standards: IEEE 802.3af, IEEE 802.1p, IEEE 802.1Q

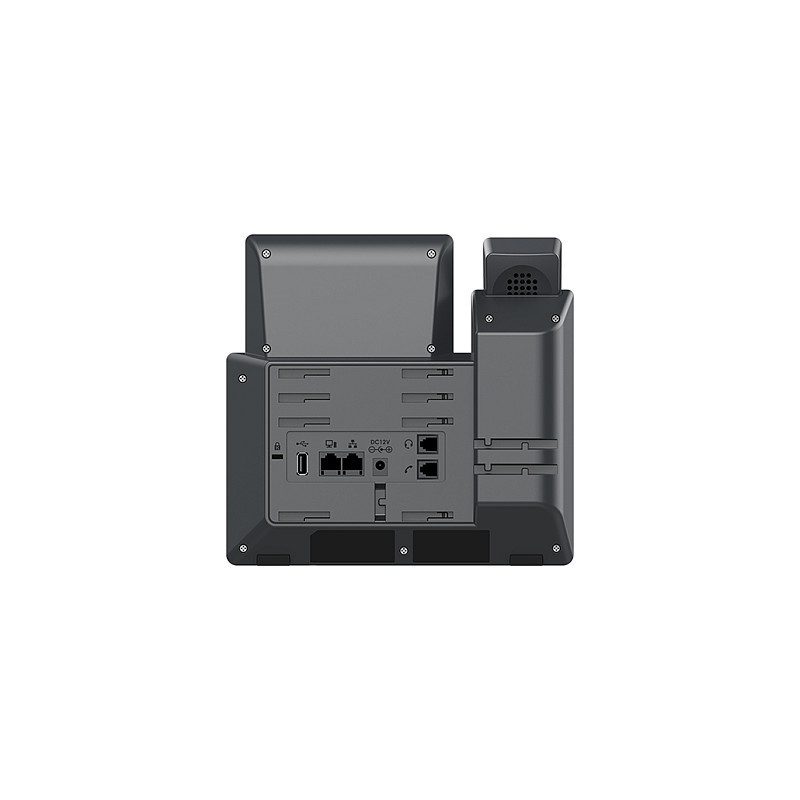

Ports & interfaces

Headset connectivity: RJ-9
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1
Headphone outputs: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 12 V
AC adapter output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight & dimensions

Width: 220 mm
Depth: 210 mm
Height: 82 mm
Weight: 880 g
Package weight: 1.26 kg

Packaging content

Feature: Base station
Handset: Yes
Feature: Quick start guide
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 85171800
