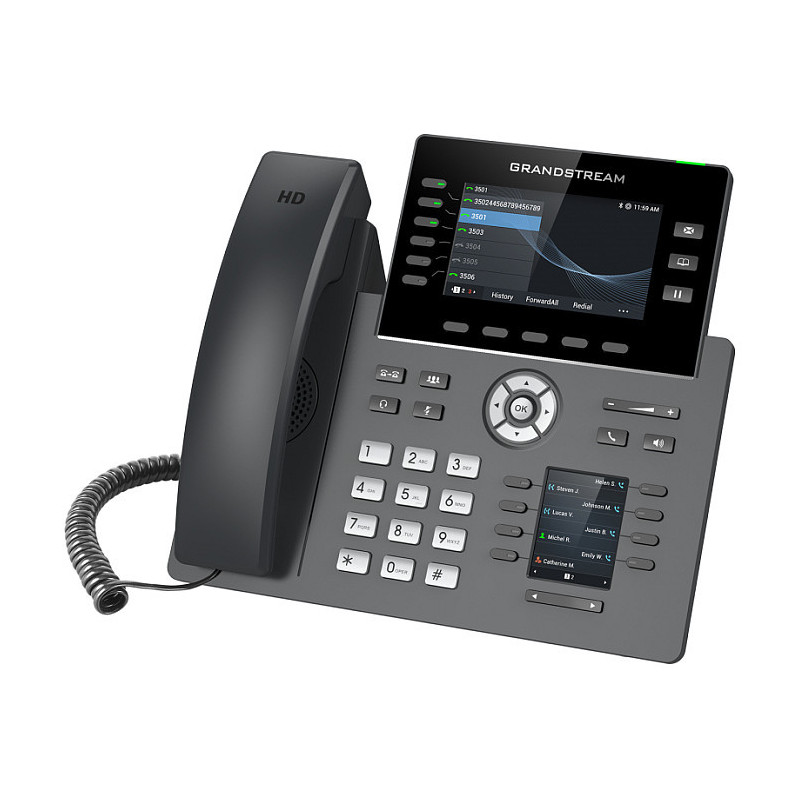

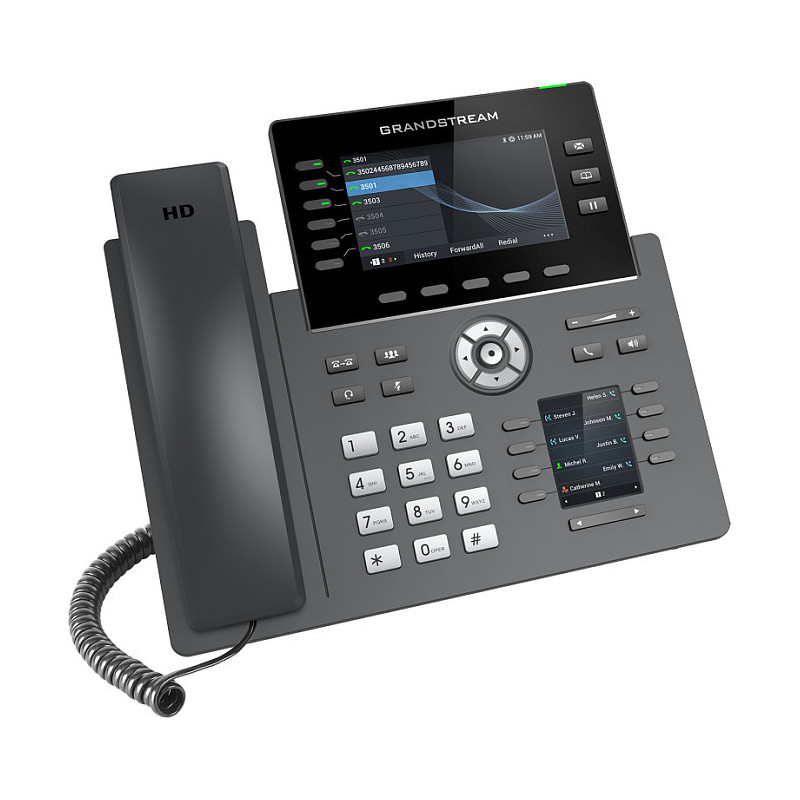

Grandstream Networks GRP2616 IP phone

Grandstream Networks GRP2616. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info, Password protection type: Supervisor, User. Lines quantity: 6 lines. Display: TFT, Display diagonal: 10.9 cm (4.3"), Display resolution: 480 x 272 pixels. Voice codecs: G.711a, G.711u, G.722, G.723, G.726, G.729ab, OPUS, iLBC
The GRP2616 is a high-end carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It supports 6 lines and 6 SIP accounts while featuring a sleek design and a suite of next-generation features including integrated Wi-Fi, Bluetooth support, 48 virtual multi-purpose keys (MPKs), dual Gigabit ports and more. This device features a 4.3 inch color LCD screen with swappable face plates to allow for easy logo customization and an additional 2.4 inch display screen. For cloud provisioning and centralized management, the GRP2616 is supported by Grandstream's Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info
Password protection type: Supervisor, User

Phone features

Lines quantity: 6 lines
Answering machine: Yes
Call log entries: 2000
Call waiting: Yes
Call hold: Yes
Call forwarding: Yes
Conference call: Yes
Call park: Yes
Call pick up: Yes
Phonebook sharing: Yes
Call transfer: Yes

Management features

Number of programmable keys: 5
Firmware upgradeable: Yes

Display

Display: TFT
Display diagonal: 10.9 cm (4.3")
Display resolution: 480 x 272 pixels
Touchscreen: No

Camera

Front camera: No

Audio

Speakerphone: Yes
Voice codecs: G.711a, G.711u, G.722, G.723, G.726, G.729ab, OPUS, iLBC

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Wi-Fi: Yes
Bluetooth: Yes
Supported network protocols: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
Quality of Service (QoS) support: Yes
Security algorithms: 256-bit AES, MD5, SRTP, SSL/TLS
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af

Ports interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1

Certificates

Certification: FCC: 15 B; 15 C 15.247; 15 E 15.407; FCC Part 68 HAC; 1 I(MPE)CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301489-1; EN 301489-17; EN 300328; EN 301893; EN 62311 RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004; AS NZS 2772.2 IC: ICES-003; CS-03; RSS-247; RSS-102(MPE).

Power

Power over Ethernet (PoE): Yes
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 12 V
AC adapter output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight dimensions

Width: 247 mm
Depth: 228 mm
Height: 82.4 mm
Weight: 1.02 kg
Package weight: 1.65 kg

Packaging content

Number of handles included: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85171800
