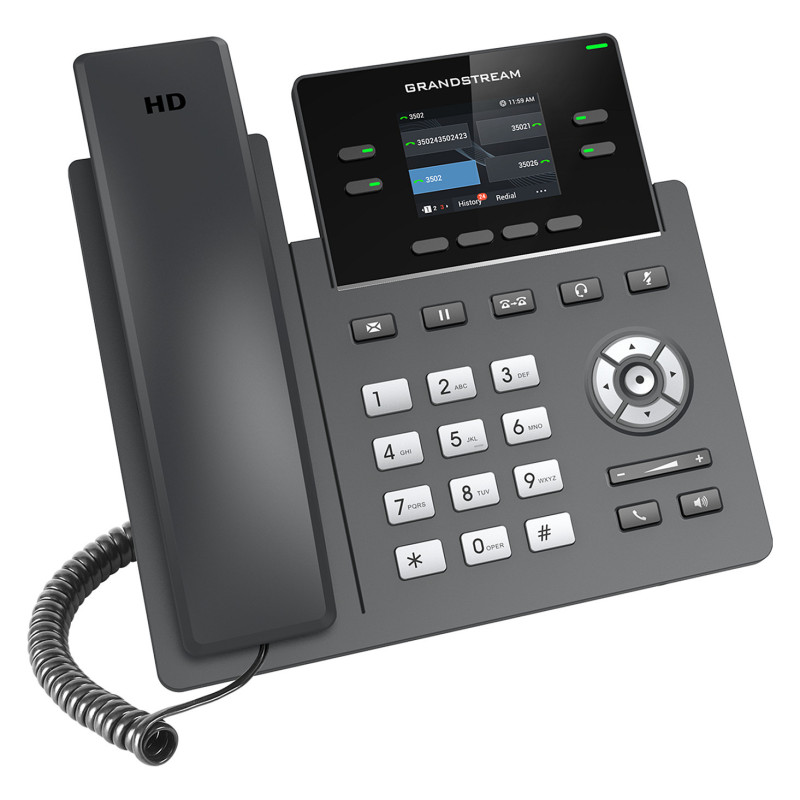

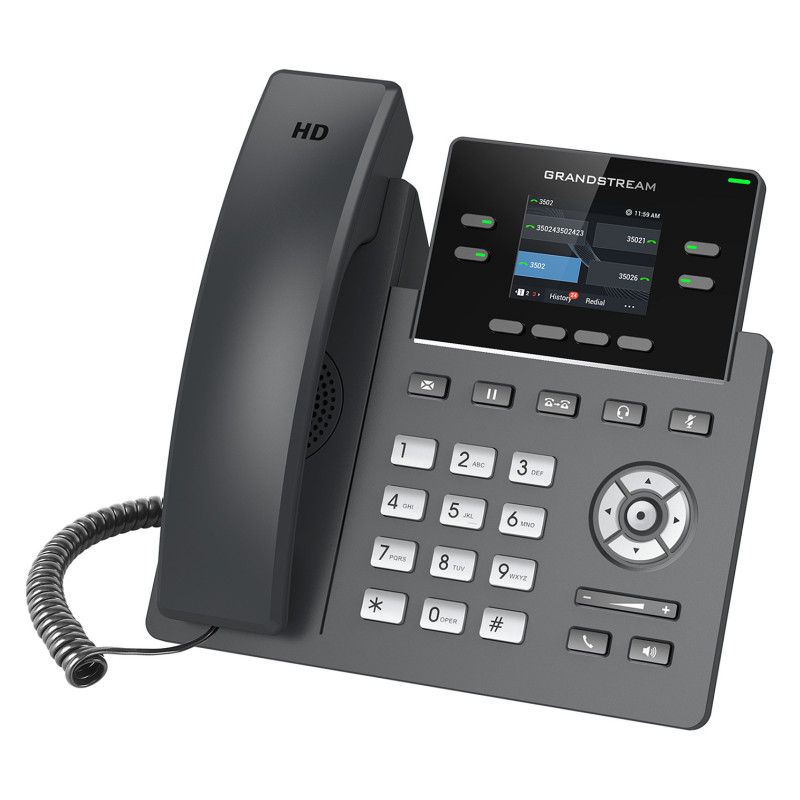

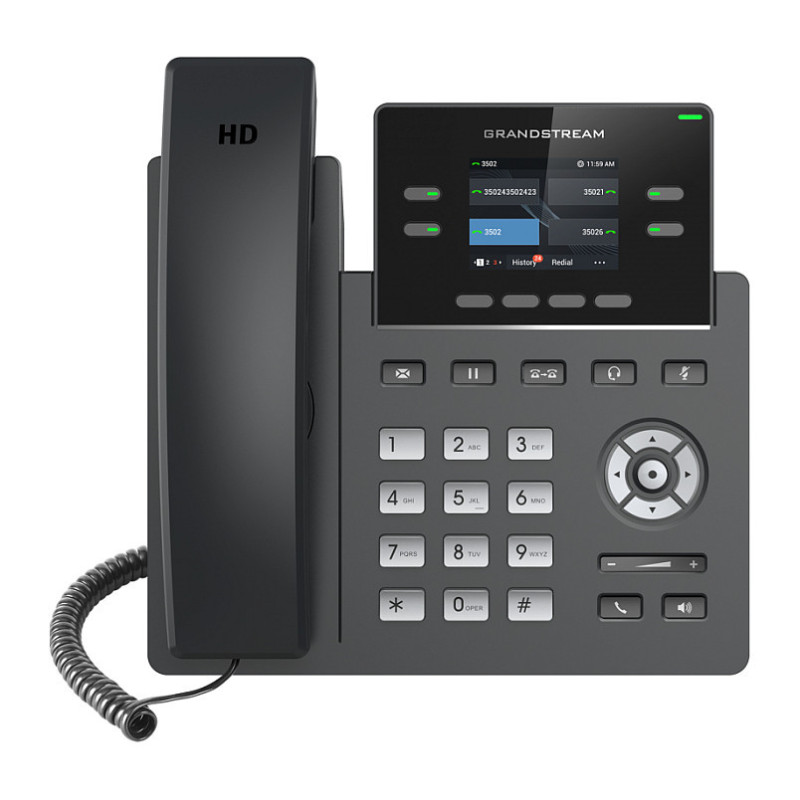

Grandstream Networks GRP2612 IP phone

Grandstream Networks GRP2612. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info, Password protection type: Supervisor, User. Lines quantity: 2 lines. Volume control: Buttons. Display diagonal: 6.1 cm (2.4"), Display resolution: 320 x 240 pixels
The GRP2612 features a sleek design and a suite of next-generation features including WiFi support on the GRP2612W and PoE on the GRP2612P. Key features include 16 virtual multi-purpose keys (VPKs), a color LCD with swappable face plates for easy logo customization and more. The GRP series includes carrier-grade security features to provide enterpriselevel security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2612 is supported by Grandstream's Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info
Password protection type: Supervisor, User

Phone features

Lines quantity: 2 lines
Answering machine: Yes
Call log entries: 1000
Call waiting: Yes
Call hold: Yes
Call forwarding: Yes
Conference call: Yes
Call park: Yes
Call pick up: Yes
Phonebook sharing: Yes
Call transfer: Yes

Management features

Volume control: Buttons
Number of programmable keys: 4
Firmware upgradeable: Yes

Display

Display diagonal: 6.1 cm (2.4")
Display resolution: 320 x 240 pixels
Touchscreen: No

Camera

Front camera: No

Audio

Speakerphone: Yes
Voice codecs: G.711a, G.711u, G.722, G.723, G.726, G.729A, G.729B, OPUS, iLBC

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Fast Ethernet
Wi-Fi: No
Bluetooth: No
Supported network protocols: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
Quality of Service (QoS) support: Yes
Security algorithms: 256-bit AES, MD5, SRTP, SSL/TLS

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1

Power

AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight dimensions

Width: 203 mm
Depth: 193 mm
Height: 52.1 mm

Packaging content

Quick start guide: Yes
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)

Logistics data

Harmonized System (HS) code: 85171800
