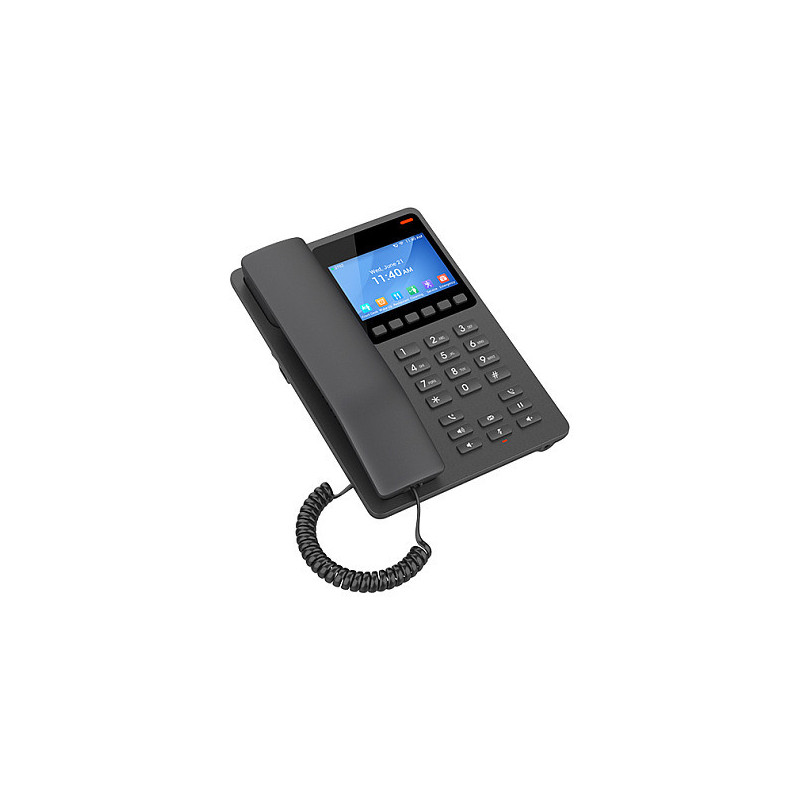

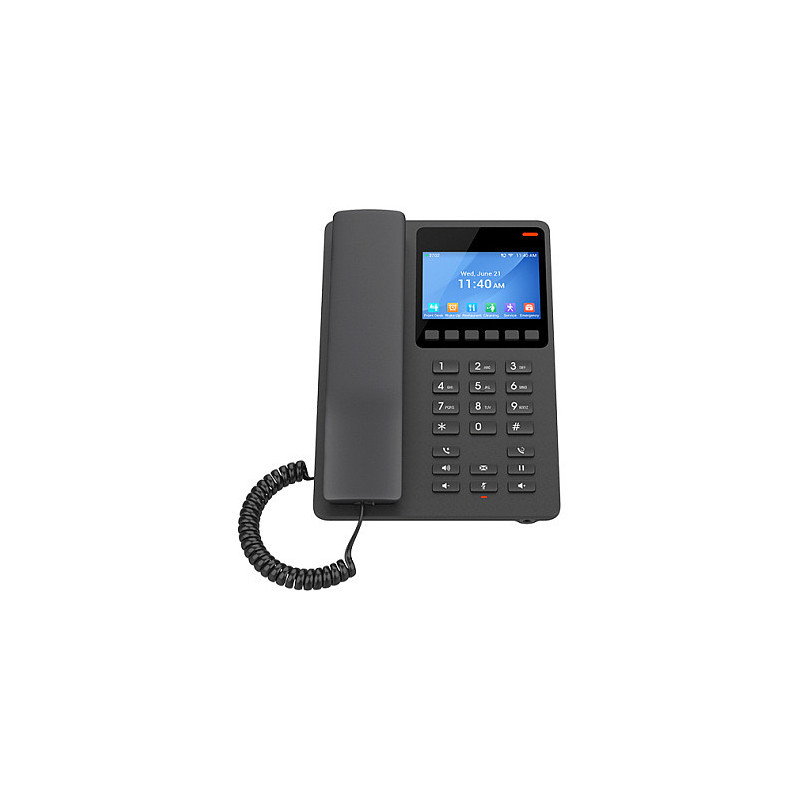

Grandstream Networks GHP631W IP phone

Grandstream Networks GHP631W. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 2 lines, Frequency band: 2.4 & 5. Management platform: GDMS. Display: LCD, Display diagonal: 8.89 cm (3.5"), Display resolution: 480 x 320 pixels

Compact Hotel Phones with color LCD Ideal for Hotel Deployments and Other Similar Environments
The GHP630(W) & GHP631(W) include an HD speaker on the handset, 2 SIP accounts/lines, 10 speed dial keys and 6 context-sensitive soft keys and includes 2 models with integrated dual-band Wi-Fi 6 support (GHP630W and GHP631W).

The GHP Series of hotel phones feature the GHP630/GHP630W and GHP631/GHP631W, easy-to-use IP phones
for any hotel room that can be programmed and customized based on the needs of hotels and their guests. The
GHP630W and GHP631W models are equipped with integrated dual-band 802.11ax Wi-Fi 6 to support wireless
deployments. This series features an HD speaker, 2 SIP accounts/lines, 6 context-sensitive soft keys, 10 speed-dial keys, 3-way voice conferencing, supports the full-band OPUS voice codec and provides an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The GHP Series is supported by Grandstream Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. GHP series IP phones can be installed on desktop or wall-mounted and can be powered by PoE, power adapter (GHP630W/GHP631W), and USB Type-C charging port. Thanks to a sleek and compact design, the GHP630/GHP630W and GHP631/GHP631W are the ideal fit for hotels, apartments, dormitories, hospitals, retail stores, and much more.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Wall mountable
Mounting: Wall

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info
Hearing aid compatibility: Yes

Phone features

Lines quantity: 2 lines
Feature: Answering machine
Feature: Speed dialling
Feature: Call hold
Feature: Conference call
Feature: Redialing
Frequency band: 2.4 & 5
Feature: Call transfer

Management features

Feature: Integrated voicemail
Keypad number of keys: 26
Number of function keys: 5
Management platform: GDMS

Display

Display: LCD
Display diagonal: 8.89 cm (3.5")
Display resolution: 480 x 320 pixels
Graphical user interface (GUI) language: English, French, Multi, Spanish

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: AEC, AGC, AJB, CNG, G.711alaw, G.711u, G.722, G.723, G.726, G.729A, G.729B, OPUS, PLC, VAD, iLBC
Feature: Adaptive jitter buffers

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Quality of Service (QoS) support
Feature: DHCP client
Security algorithms: 256-bit AES, HTTPS, SRTP, SSH, TLS
Networking standards: IEEE 802.1Q, IEEE 802.1p

Ports & interfaces

USB Type-C ports quantity: 1

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100-240 V
Input frequency: 50/60 Hz
AC adapter output voltage: 12 V
AC adapter output current: 0.5 A
USB output current: 0.5 A
Power consumption (typical): 6 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -10 - 60 °C

Weight & dimensions

Width: 147 mm
Depth: 210 mm
Height: 89.8 mm
Weight: 658 g
Package weight: 881 g

Packaging content

Handset: Yes
Feature: Quick start guide
Number of handles included: 1 pc(s)
Feature: AC adapter included
Feature: Stand included
