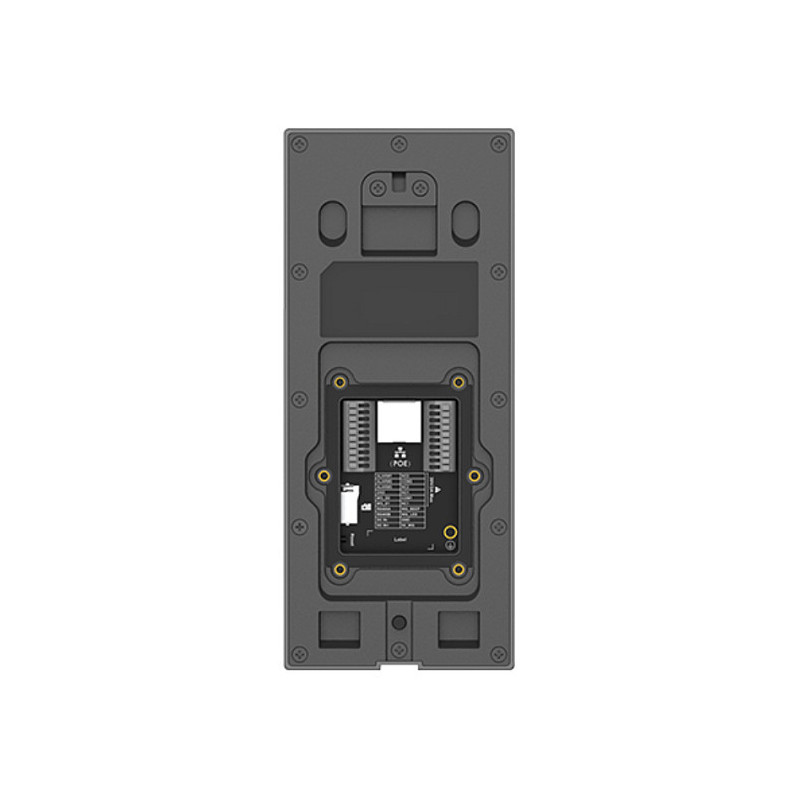

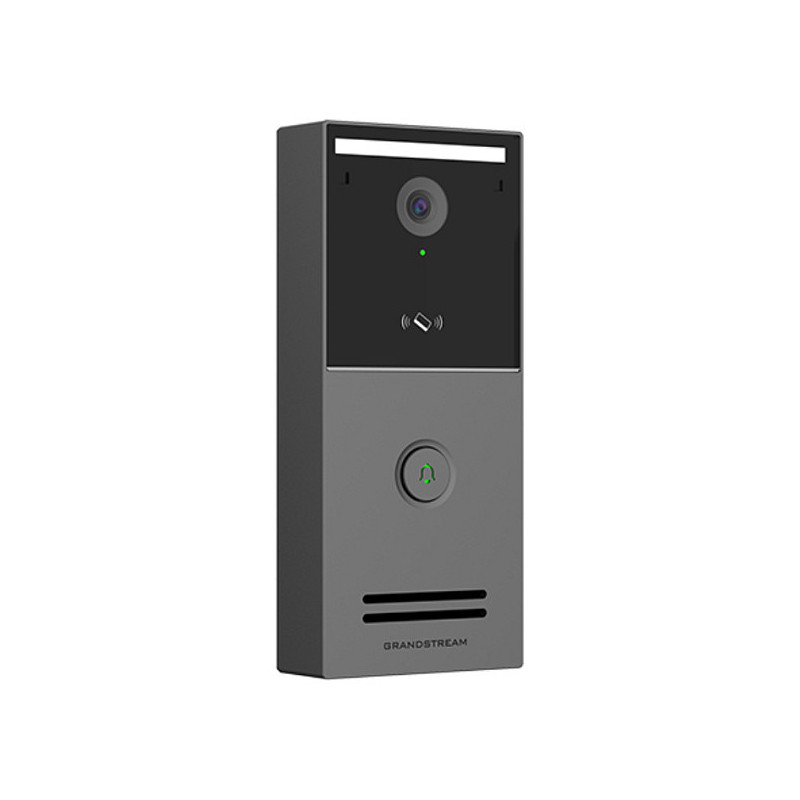

Grandstream Networks GDS3726 video intercom system

Grandstream Networks GDS3726. Video formats supported: H.264. Megapixel (approx.): 4 MP, Optical sensor size: 25.4 / 3 mm (1 / 3"), Maximum frame rate: 30 fps. Speaker power: 3 W, Voice codecs: G.711, G.722, G.726-32, G.729. Product colour: Grey, International Protection (IP) code: IP66, IK code: IK10. Compatible memory cards: SD, Maximum memory card size: 256 GB

Smart IP Video Door Stations for access control, video intercom, and security recording needs

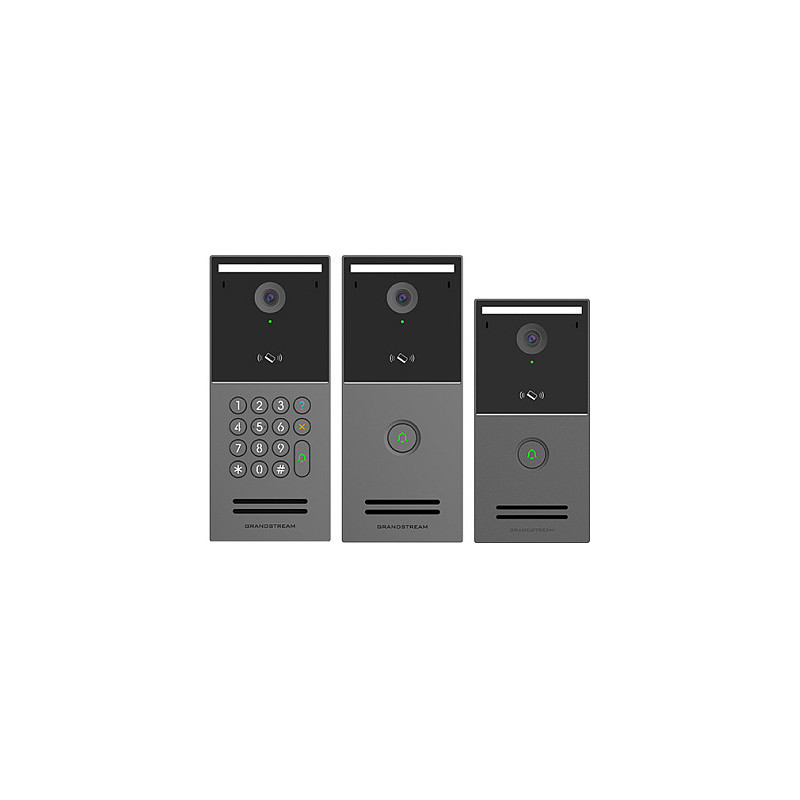

The GDS3725/3726/3727 are Smart IP Video Door Stations that also serve as high- definition IP surveillance cameras and IP intercoms to offer facility access control and security monitoring for buildings of all sizes.

Technical details

Connectivity technology: Wired & Wireless
Feature: Speakerphone
Feature: RFID reader
Feature: Built-in microphone
Feature: Motion detection function
Certification: FCC, CE, RCM, IC

Display

Video formats supported: H.264
Feature: Wide Dynamic Range (WDR)

Camera

Megapixel (approx.): 4 MP
Optical sensor size: 25.4 / 3 mm (1 / 3")
Maximum frame rate: 30 fps
Field of view (FOV) angle: 152°
Viewing angle, horizontal: 127°
Viewing angle, vertical: 70°

Night vision

Feature: Night vision
Number of illumination LEDs: 6

Audio

Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 3 W
Voice codecs: G.711, G.722, G.726-32, G.729

Design

Product colour: Grey
International Protection (IP) code: IP66
IK code: IK10
Control type: Buttons
Placement supported: Vertical
Proper use: Outdoor

Storage

Feature: Memory card slot
Compatible memory cards: SD
Maximum memory card size: 256 GB

Outdoor unit

RS-485 ports (transmitter): 1

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Bluetooth
Cabling technology: 10/100Base-T(X)
Feature: Power over Ethernet (PoE)

Power

Outdoor unit power type: DC/PoE
Power consumption (typical): 12 W

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 87 mm
Depth: 35.5 mm
Height: 204 mm
Weight: 1.55 kg

Packaging data

Feature: Outdoor unit included
Package weight: 1.73 kg

Packaging content

Feature: Quick start guide

Logistics data

Quantity per pack: 1 pc(s)
