StarTech.com MCM1110SMLC40 network media converter

StarTech.com Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 40km - TAA. Maximum data transfer rate: 2000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-LX. Maximum transfer distance: 40000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Housing material: Metal. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 0.4 A, Output voltage: 5 V

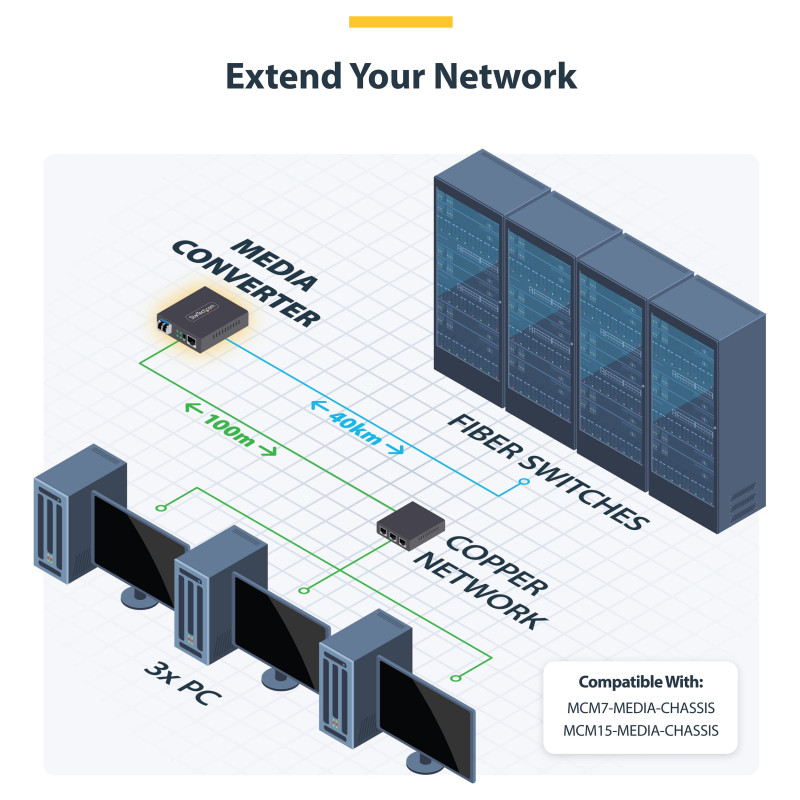

Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber.

This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 40 km (24.8 mi.) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.

Built for Versatility and Performance

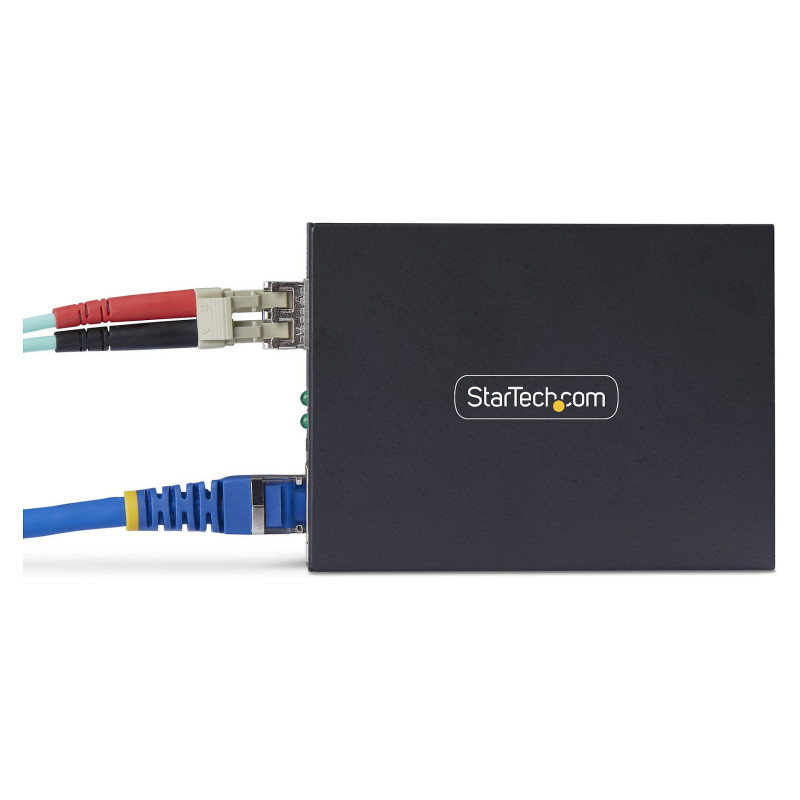

Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.

Smart Diagnostics and Rugged Design

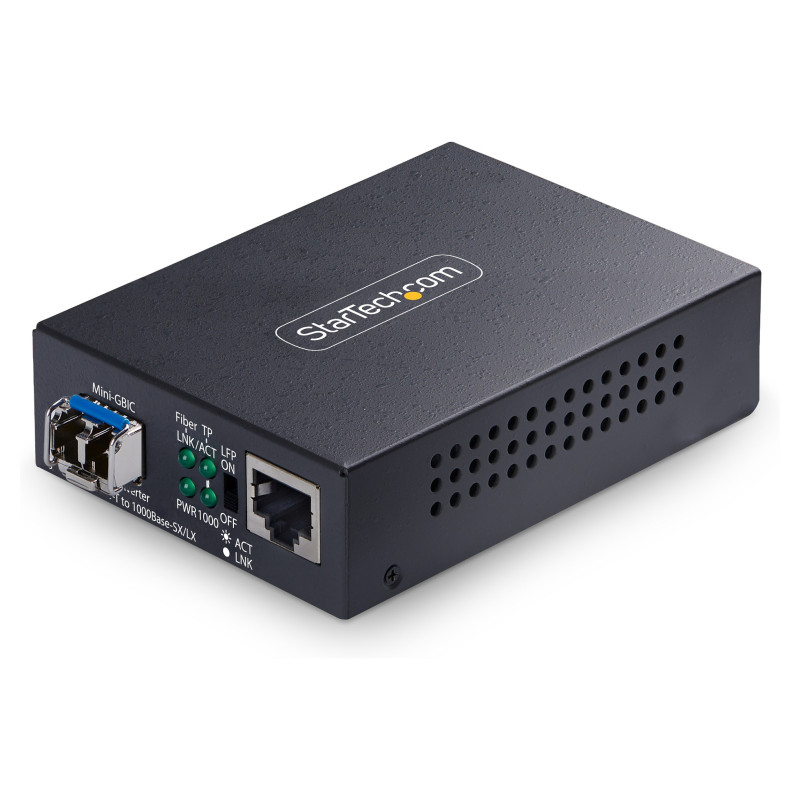

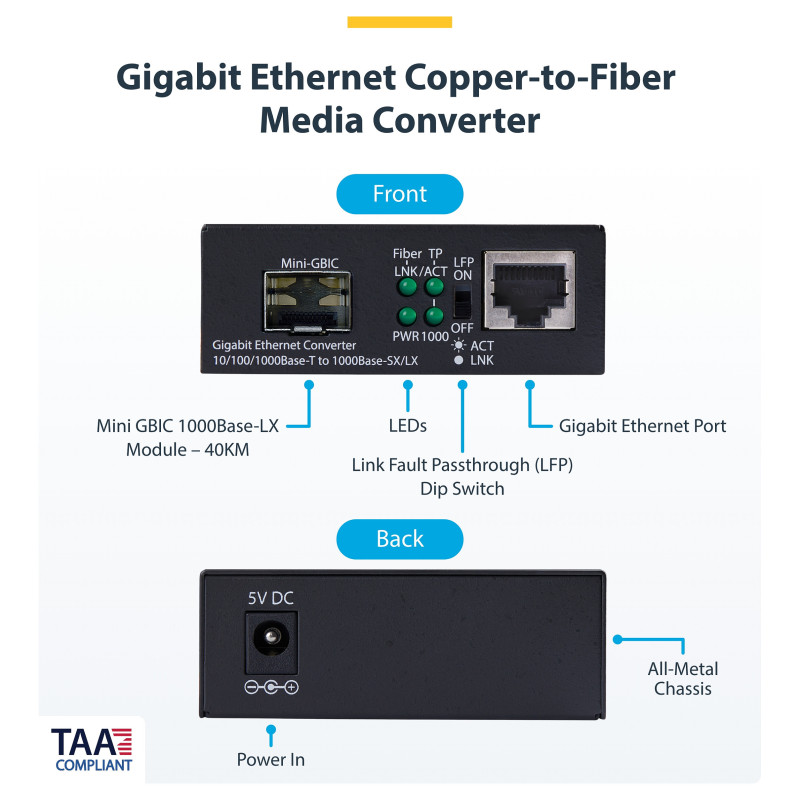

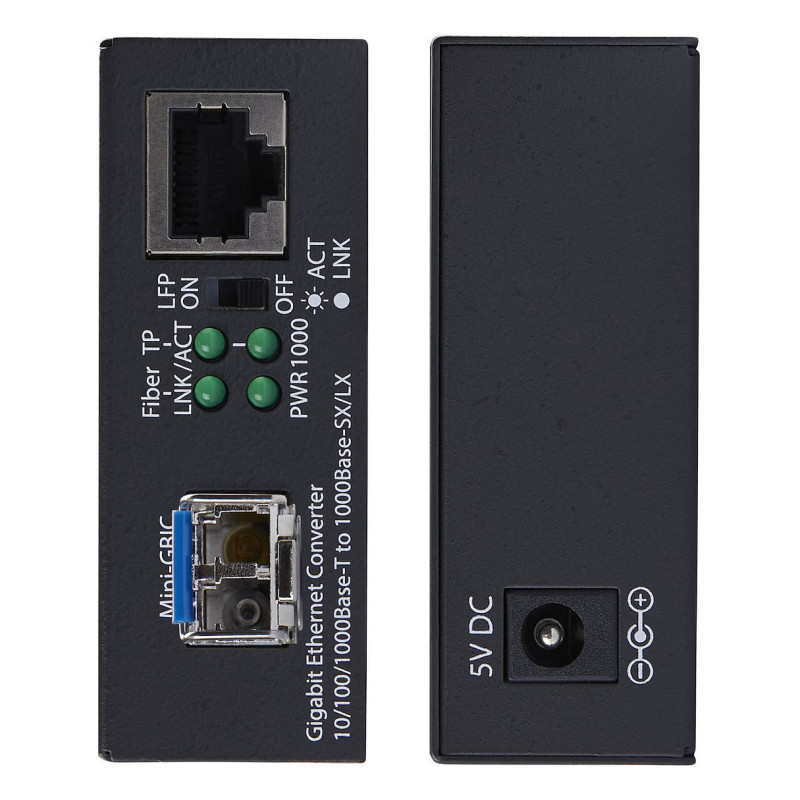

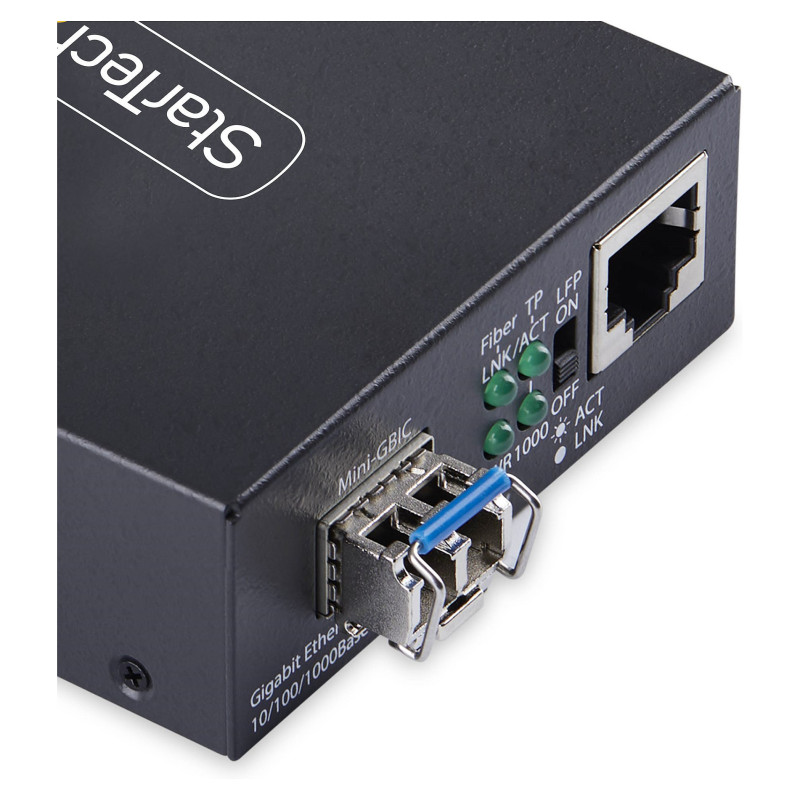

Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.

Flexible Installation for Any Network Setup

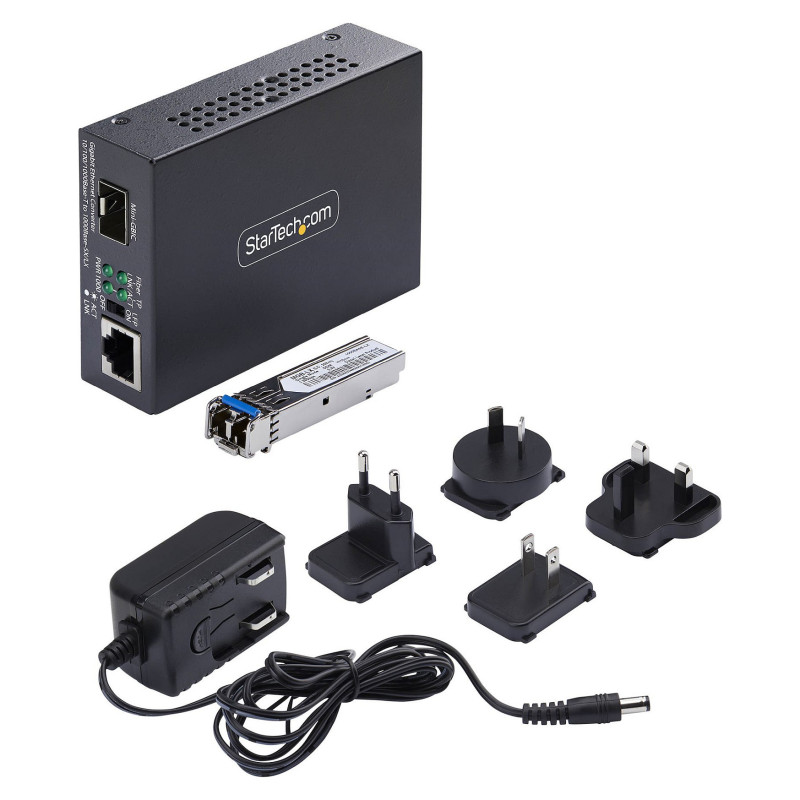

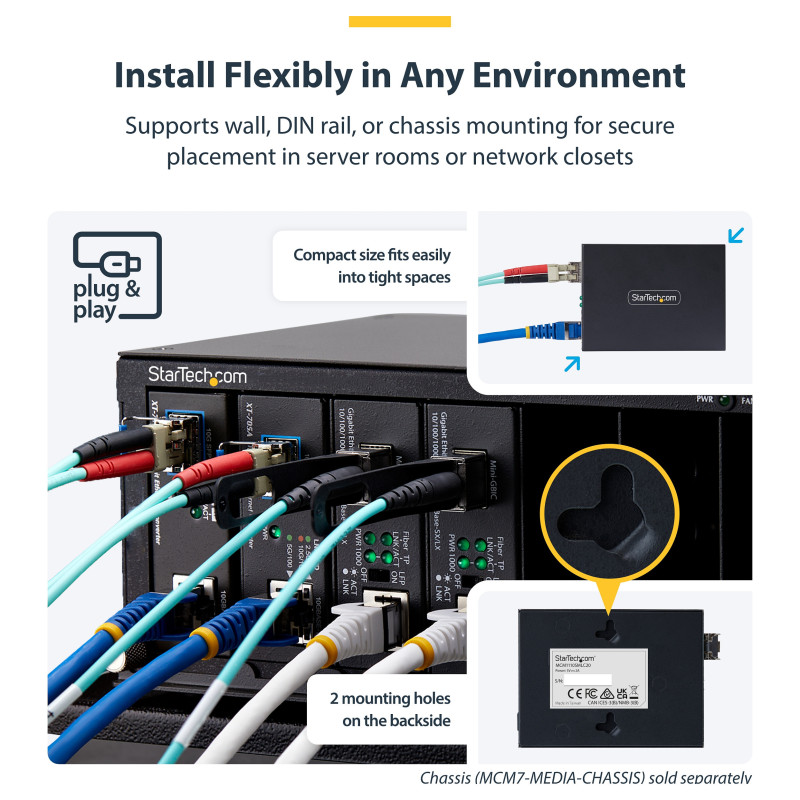

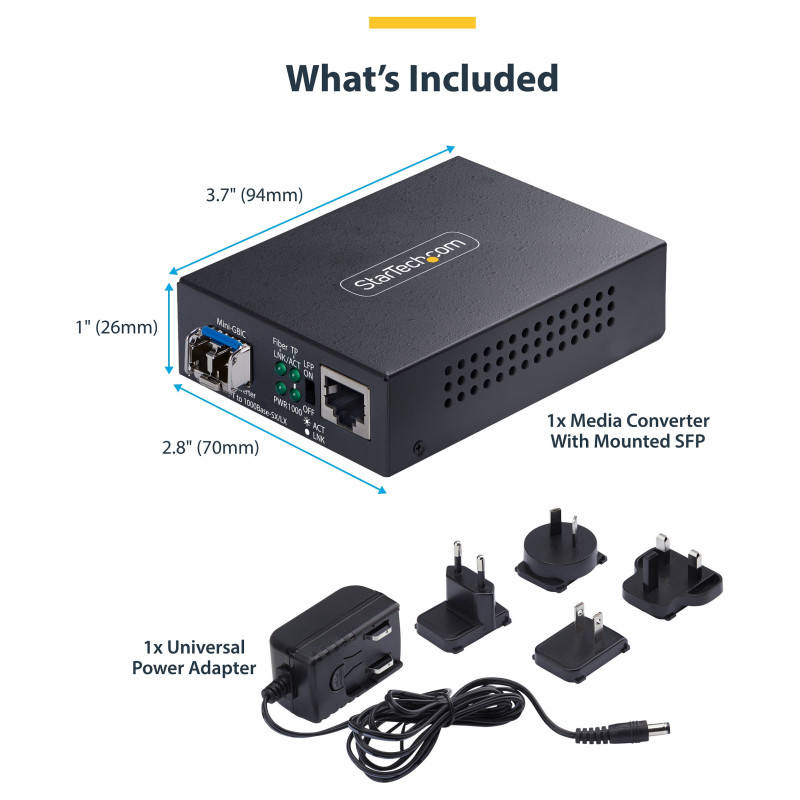

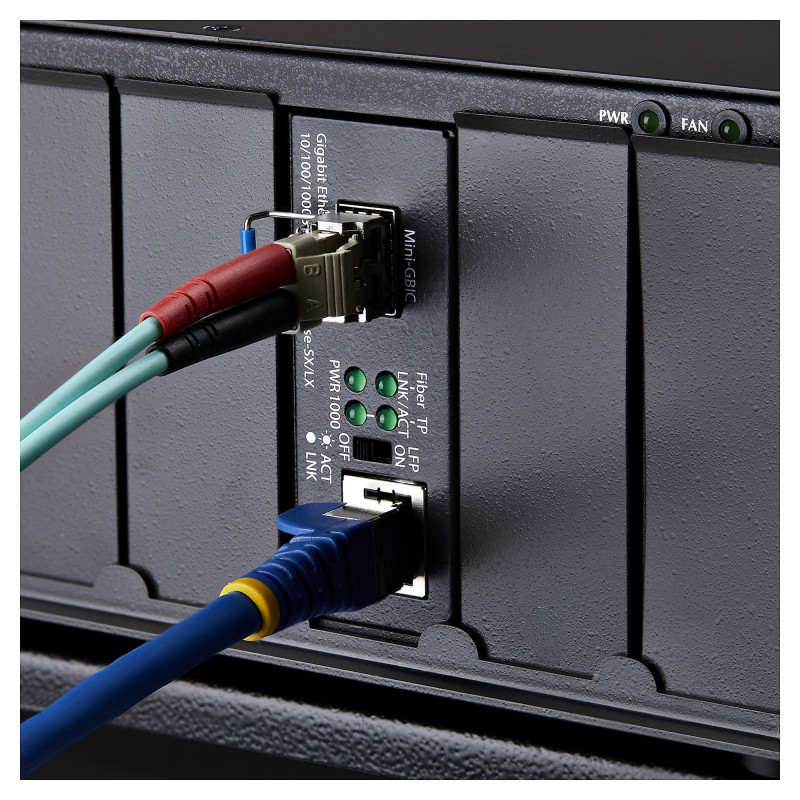

Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.

Network

Maximum data transfer rate: 2000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 1000Base-LX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full, Half
Feature: Link Fault Pass-through (LFP)

Performance

Maximum transfer distance: 40000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Mean time between failures (MTBF): 50000 h

Features

LED indicators: Yes
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: LC

Power

Input voltage: 100 - 240 V
Input current: 0.4 A
Output voltage: 5 V
Output current: 2 A
Power consumption (typical): 4.6 W

Weight & dimensions

Width: 94 mm
Depth: 79 mm
Height: 26 mm

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: AC adapter included
Feature: User guide

Packaging data

Package width: 133 mm
Package depth: 280 mm
Package height: 66 mm
Package weight: 328 g

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Logistics data

Master (outer) case width: 360 mm
Master (outer) case length: 580 mm
Master (outer) case height: 305 mm
Products per master (outer) case: 20 pc(s)
