Foscam FNA108E-T4-2T video surveillance kit

Foscam FNA108E-T4-2T. Connectivity technology: Wired, Surveillance camera form factor: Turret, Camera interface: RJ-45. Channels quantity: 8 channels, Storage media type: HDD, Maximum storage capacity: 16 TB. Ethernet interface type: Gigabit Ethernet. Power source type: DC, DC output current: 2 A. Audio formats supported: AAC, PCM

Centralized Management
Support viewing, video playback, 7*24 hours non-stop video recording, and keeping an eye on every corner of your home.

Complete Protection
Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home with complete protection.

Easy Installation
With Power over Ethernet connection, each DIY user can use a single network cable to connect each PoE camera to Foscam NVR for both power supply and video recording.
Just hook each camera up with the NVR and the whole security system can be seen day and night.

Human/Vehicle Detection
Say goodbye to the unwanted alarms triggered by moving branches or flying bugs.
With advanced human/vehicle detection, the camera identifies true threats in the light of cutting-edge detection algorithms, giving you the utmost peace and relief.

Sound and Light Alarm
Once an intruder is detected, the camera's spotlight and siren will be triggered to warn potential criminals. You can also manually activate the spotlight to stop crimes before it happens.

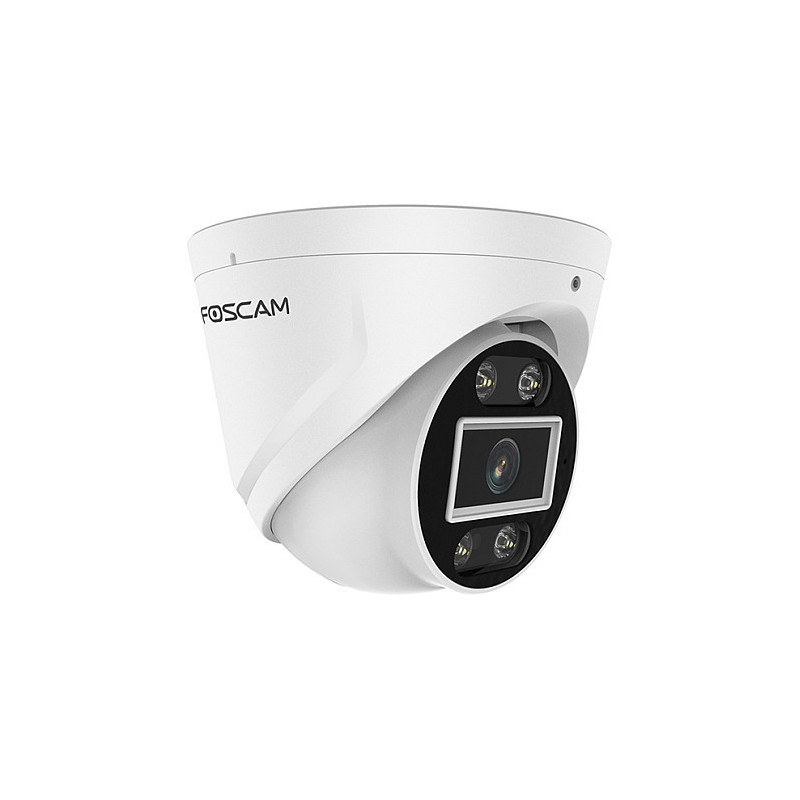

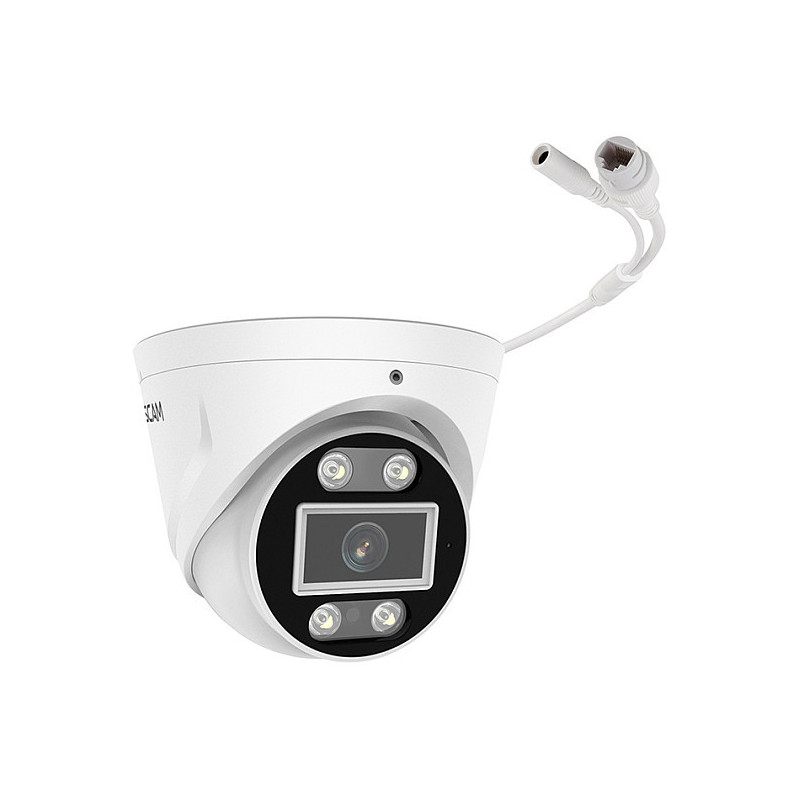

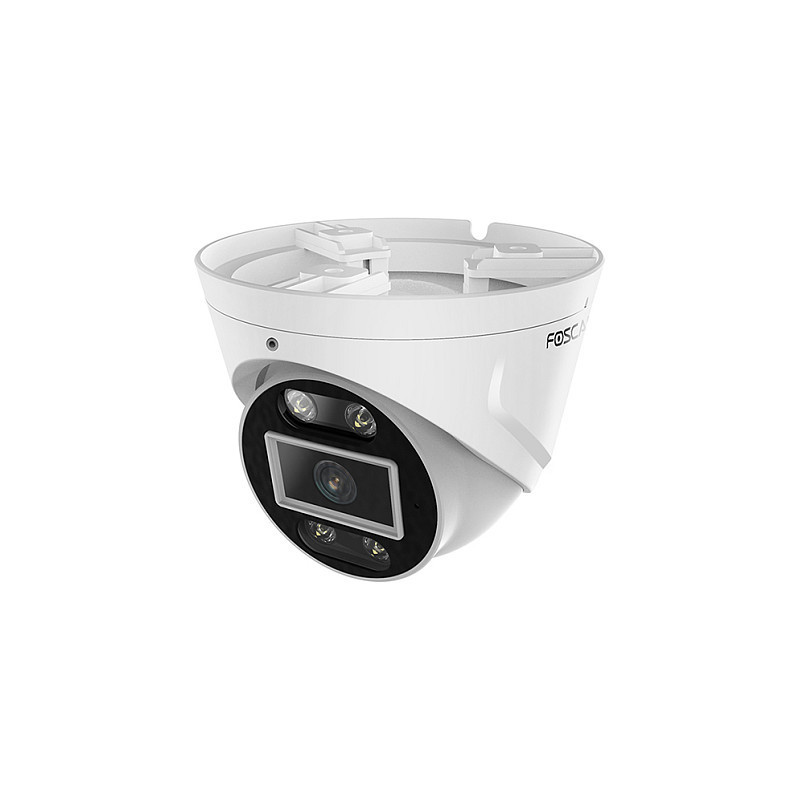

8MP PoE IP Camera
This PoE camera comes with 8MP resolution and provides high-definition images. 7*24h continuous video monitoring, no matter day or night.

More Efficient Streaming for Optimum Viewing Experience
It supports video stream compression H.264+ Codec, which has the advantages of storage and bandwidth savings with greater efficiency and achieves high-quality video preview and recording in low-bit rate.

- Supports ultra-long continuous 24/7 recording (supports external hard drive up to 16TB).
- The table below shows how long the Foscam NVR can record 24/7 under different HDD capacities for reference.

Camera

Connectivity technology: Wired
Feature: Camera included
Feature: Colour
Surveillance camera form factor: Turret
Camera interface: RJ-45
Feature: Night mode
Placement supported: Outdoor
Fixed focal length: 4.3 mm
Maximum aperture number: 1.6
Feature: Zoom capability
Digital zoom: 6x
Viewing angle, horizontal: 90.1°
Viewing angle, vertical: 46.2°
Viewing angle, diagonal: 108.5°
Number of cameras: 4
Night vision distance: 20 m
Sensor type: CMOS
LED type: IR
Camera resolution: 3840 x 2160 pixels
Megapixel (approx.): 8 MP
International Protection (IP) code: IP66
Protection features: Waterproof

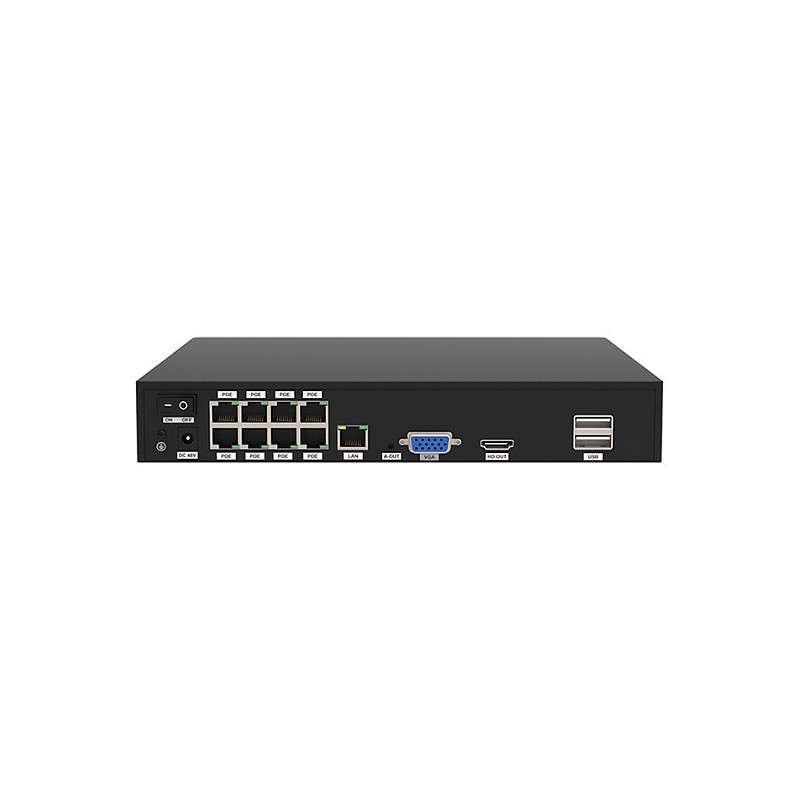

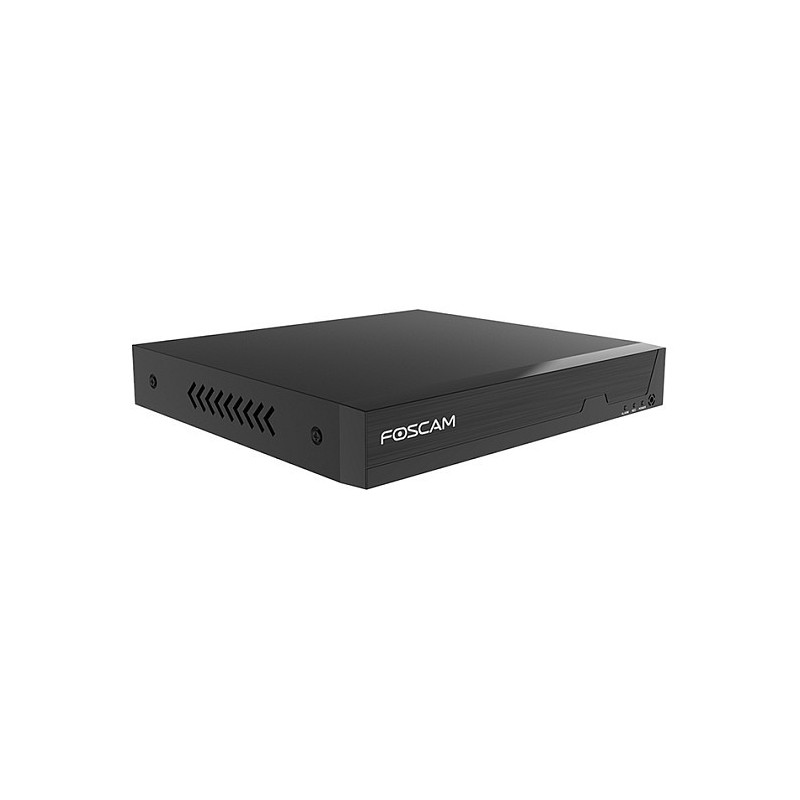

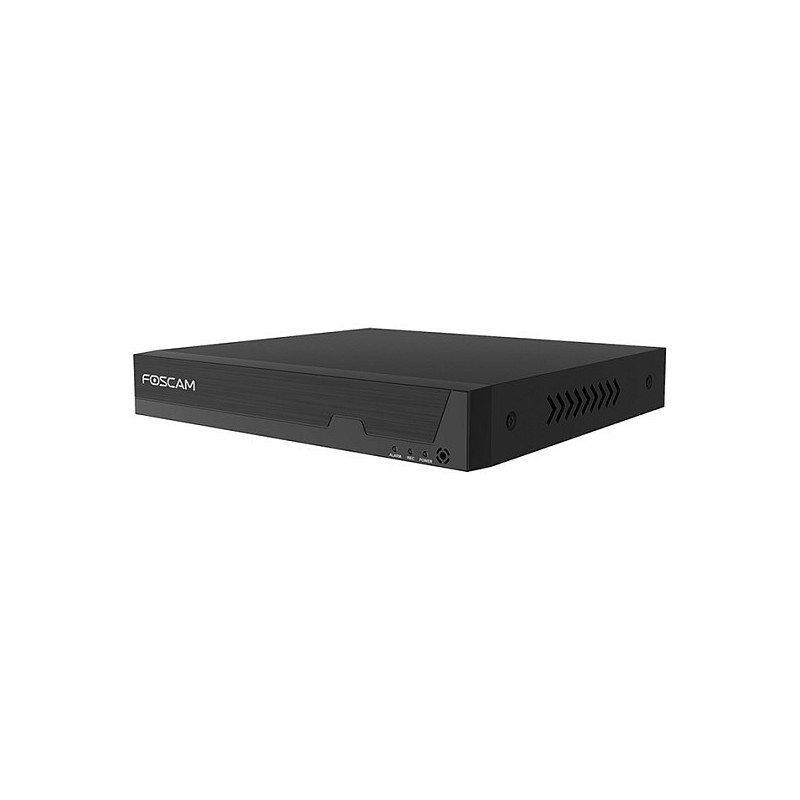

Recorder

Feature: Recorder included
Channels quantity: 8 channels
Storage media type: HDD
Maximum storage capacity: 16 TB
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
Playback modes: Fast, Pause, Slow, Stop
Supported network protocols: IP, TCP, UDP, SMTP, DHCP, RTSP
Feature: On Screen Display (OSD)
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Display resolution: 3840 x 2160 pixels
Playback resolutions supported: 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet

Power

Power source type: DC
DC output voltage: 48
DC output current: 2 A

Audio

Feature: Built-in microphone
Audio formats supported: AAC, PCM

System requirements

Feature: Mac compatibility
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Windows operating systems supported: Yes

Operational conditions

Camera operating temperature (T-T): -20 - 40 °C
Camera operating relative humidity (H-H): 10 - 80%
Recorder operating temperature (T-T): 0 - 55 °C
Recorder operating relative humidity (H-H): 0 - 90%

Technical details

Video compression formats: H.264, H.264+
Feature: Reset button
Certification: FCC, CE, RoHS

Weight & dimensions

Camera width: 11 cm
Camera depth: 11 cm
Camera height: 10 cm
Camera weight: 380 g
Recorder width: 23.8 cm
Recorder depth: 25.5 cm
Recorder height: 5 cm
Recorder weight: 880 g

Packaging content

Feature: Screws included
Feature: Manual
Feature: Mouse included
Cables included: HDMI, LAN (RJ-45)
Feature: Quick installation guide
