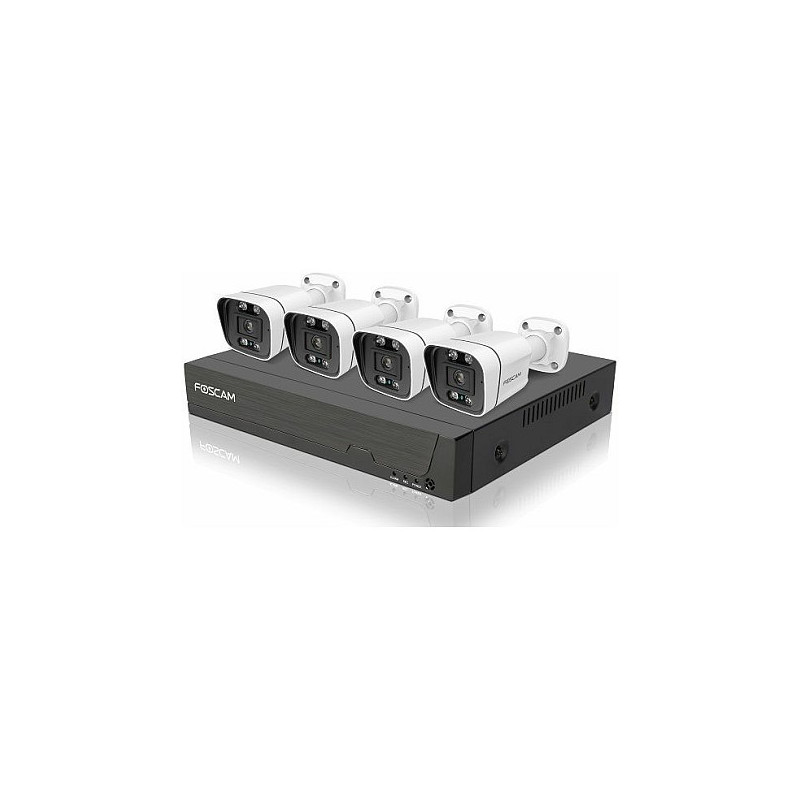

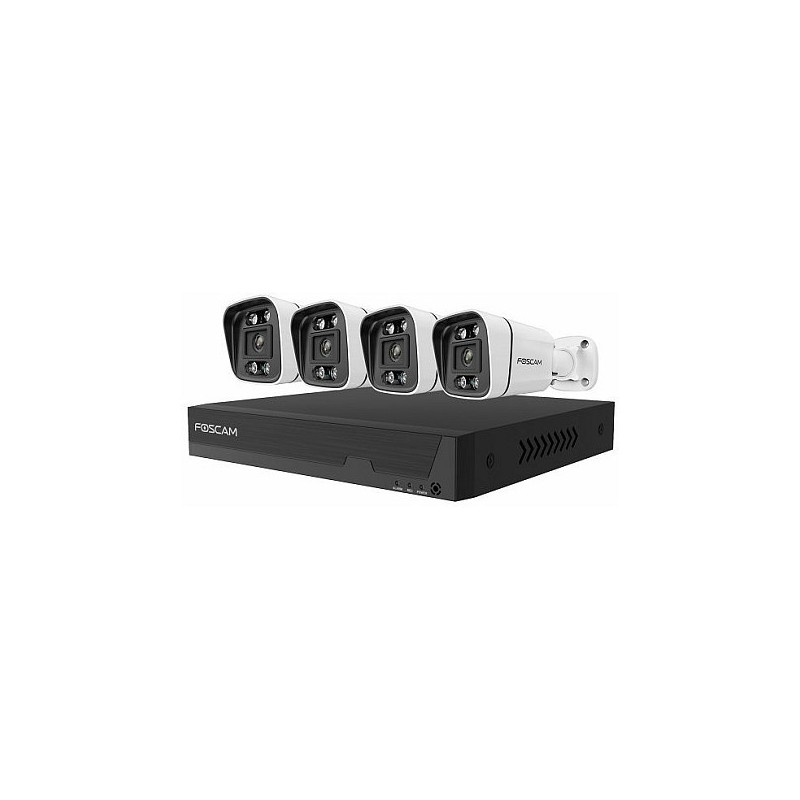

Foscam FN9108E-B4-2T video surveillance kit

Foscam FN9108E-B4-2T. Connectivity technology: Wired, Surveillance camera form factor: Turret, Camera interface: RJ-45. Channels quantity: 8 channels, Storage media type: HDD, Maximum storage capacity: 2 TB. Ethernet interface type: Gigabit Ethernet. Power source type: DC, DC output current: 2 A. Audio formats supported: AAC, PCM

Protect your home in all directions!

Centralized management
Support viewing, video playback, 7*24 hours non-stop video recording, and keeping an eye on every corner of your home.

Complete protection
Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home with complete protection.

Easy installation
With Power over Ethernet connection, each DIY user can use a single network cable to connect each POE camera to Foscam NVR for both power supply and video recording. Just hook each camera up with the NVR and the whole security system can be seen day and night.

Human/Vehicle detection
Say goodbye to the unwanted alarms triggered by moving branches or flying bugs. With advanced human/vehicle detection, the camera identifies true threats in the light of cutting-edge detection algorithms, giving you the utmost peace and relief.

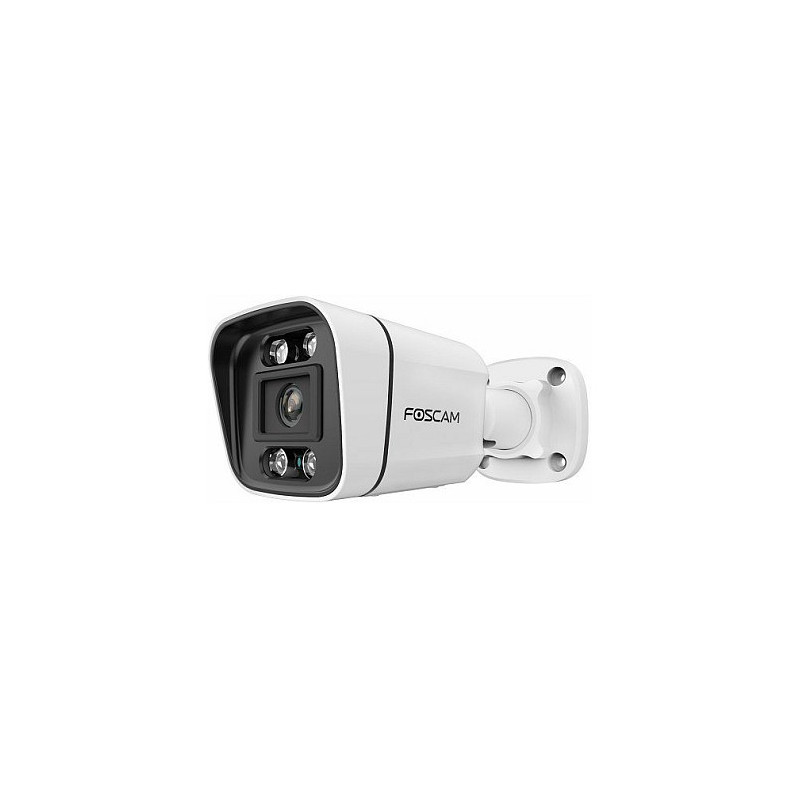

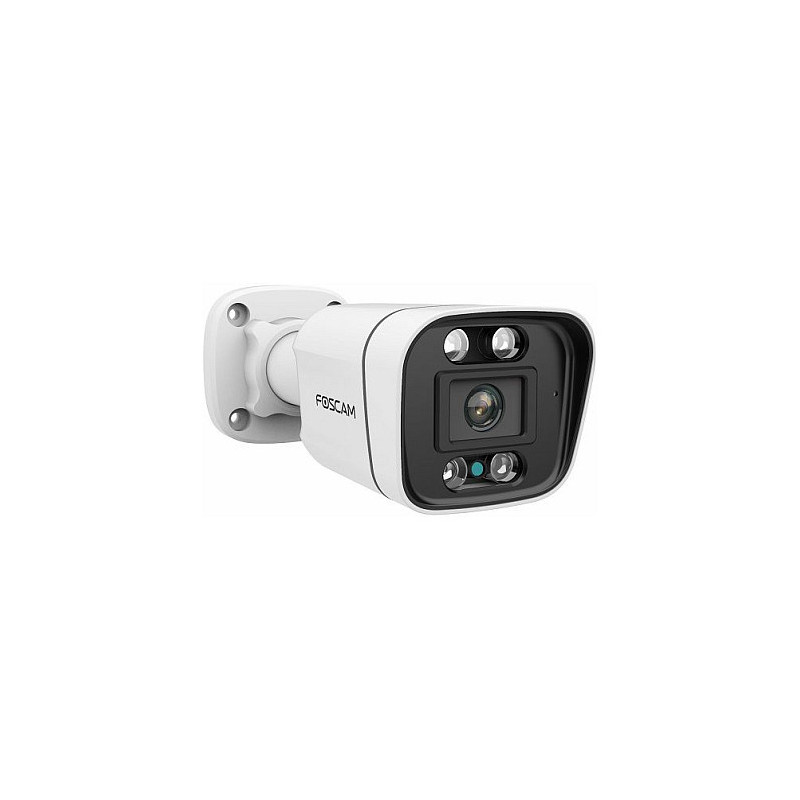

Camera

Connectivity technology: Wired
Feature: Camera included
Feature: Colour
Surveillance camera form factor: Turret
Camera interface: RJ-45
Feature: Night mode
Placement supported: Outdoor
Fixed focal length: 4 mm
Maximum aperture number: 2.1
Feature: Zoom capability
Digital zoom: 6x
Viewing angle, horizontal: 78°
Viewing angle, vertical: 43.6°
Viewing angle, diagonal: 94°
Number of cameras: 4
Night vision distance: 20 m
Sensor type: CMOS
LED type: IR
Camera resolution: 3072 x 1728 pixels
Megapixel (approx.): 5 MP
International Protection (IP) code: IP66
Protection features: Waterproof

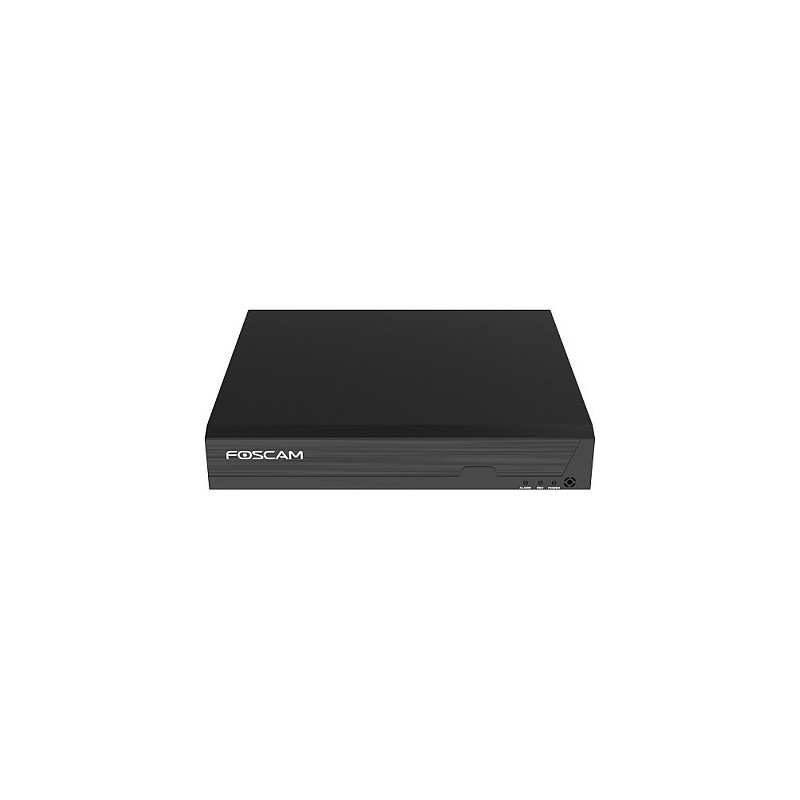

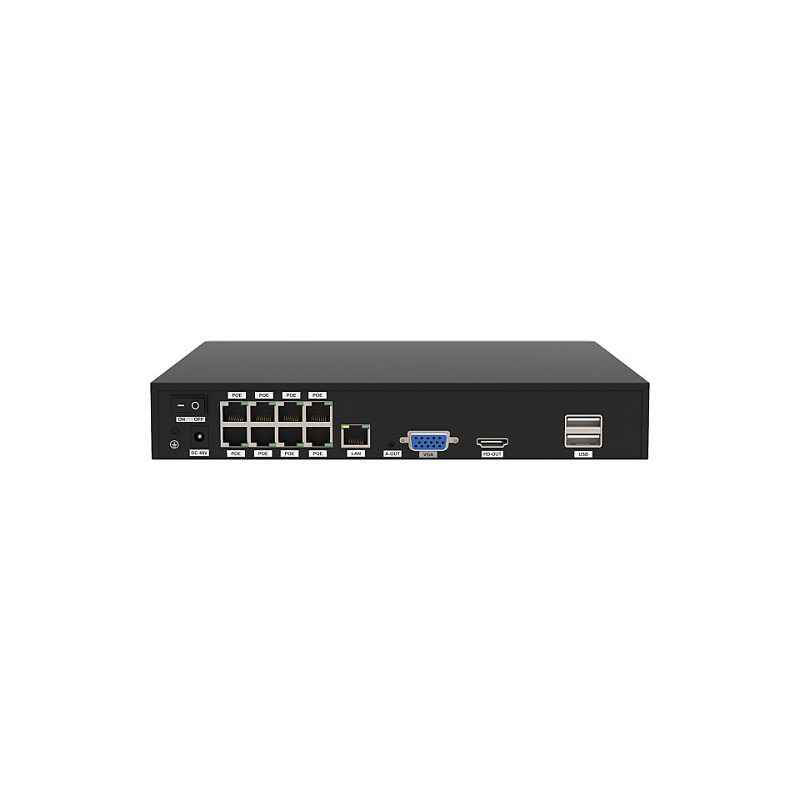

Recorder

Feature: Recorder included
Channels quantity: 8 channels
Storage media type: HDD
Maximum storage capacity: 2 TB
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
Playback modes: Fast, Pause, Slow, Stop
Supported network protocols: IP, TCP, UDP, SMTP, DHCP, RTSP
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Display resolution: 3840 x 2160 pixels
Playback resolutions supported: 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet

Power

Power source type: DC
DC output voltage: 48
DC output current: 2 A

Audio

Audio formats supported: AAC, PCM

System requirements

Feature: Mac compatibility
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Windows operating systems supported: Yes

Operational conditions

Camera operating temperature (T-T): -20 - 40 °C
Camera operating relative humidity (H-H): 10 - 80%
Recorder operating temperature (T-T): 0 - 55 °C
Recorder operating relative humidity (H-H): 0 - 90%

Technical details

Video compression formats: H.264, H.264+
Feature: Reset button
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: FCC, CE, RoHS

Weight & dimensions

Camera weight: 342 g
Recorder width: 25.5 cm
Recorder depth: 23.8 cm
Recorder height: 5 cm

Packaging content

Feature: Screws included
Feature: Manual
Feature: Mouse included
Cables included: HDMI, LAN (RJ-45)
Feature: Quick installation guide
