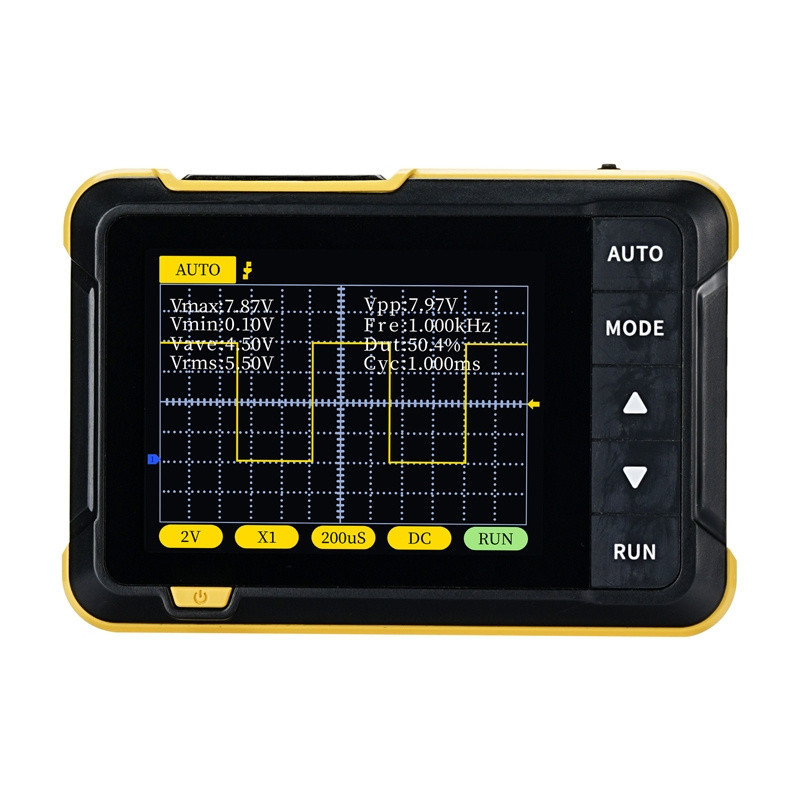

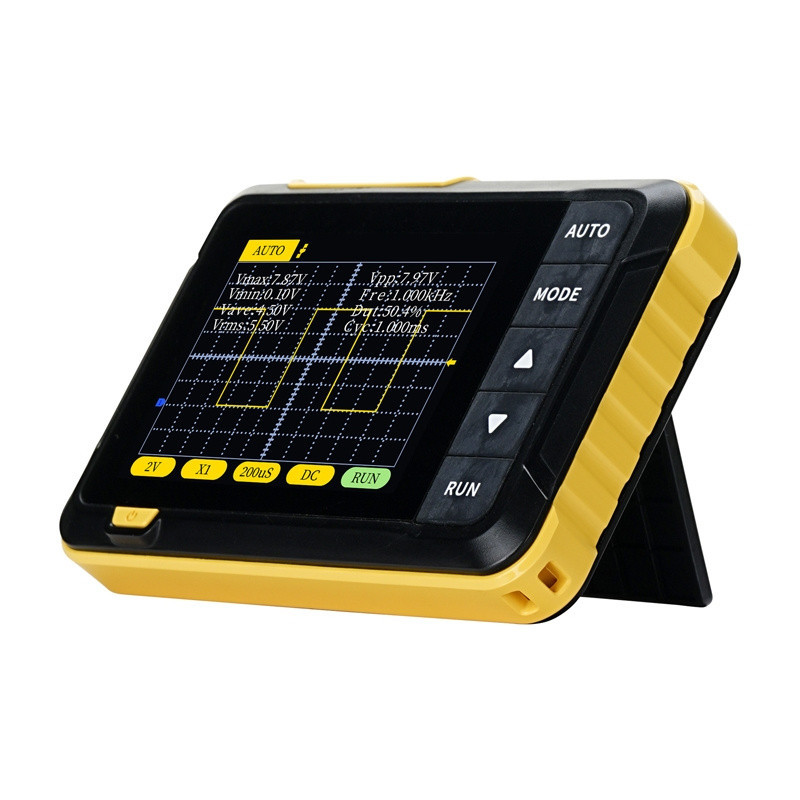

FNIRSI DSO152 2.5MS / s, 200kHz, ±400V Mini Oscilloscope
Product reference:
14-5907085526980
FNIRSI DSO152 is a portable mini oscilloscope with a sampling rate of 2.5 MS/s and a bandwidth of 200 kHz, suitable for measuring voltage signals up to ±400V. It features a 2.8-inch display, an integrated calibration signal source, and a rechargeable 1,000mAh battery for convenient outdoor use.
FNIRSI DSO152 2.5MS / s, 200kHz, ±400V Mini Oscilloscope
Product reference:
14-5907085526980
FNIRSI DSO152 is a portable mini oscilloscope with a sampling rate of 2.5 MS/s and a bandwidth of 200 kHz, suitable for measuring voltage signals up to ±400V. It features a 2.8-inch display, an integrated calibration signal source, and a rechargeable 1,000mAh battery for convenient outdoor use.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
FNIRSI DSO152 Portable Mini Oscilloscope
FNIRSI DSO152 is a portable mini oscilloscope with 2.5MS/s sampling rate and 200kHz bandwidth, suitable for measuring voltage signals up to ±400V. It features a 2.8-inch display, integrated signal source for calibration, and a rechargeable 1,000 mAh battery for convenient outdoor use.
- Compact and portable design, perfect for outdoor work and educational purposes.
- High-precision measurements with 200kHz bandwidth and ±400V voltage range.
- Intuitive operation with automatic parameter settings for quick diagnostics.
- Integrated signal source for easy calibration and testing of measuring probes.
Features | |
|---|---|
| Product Type | Portable Mini Oscilloscope |
| Product Brand | FNIRSI |
| Model | DSO152 |
Specifications | |
| Sampling Frequency | 2.5MS/s |
| Band Width | 200kHz |
| Vertical Sensitivity | 10mV/Div - 20V/Div |
| Voltage Range | X1: ±400V (Vpp: 800V), X10: ±40V (Vpp: 800V) |
| Trigger Method | Auto/Normal/Single |
| Pairing Type | AC/DC |
| Screen | 2.8 inches, 320×240 PPI |
| USB Charging | 5V/1A |
| Lithium Battery Capacity | 1000mAh |
| Integrated Signal Source Frequency | 1kHz |
| Dimensions | 99 × 68.3 × 19.5 mm |
| Weight | 100g |
Included Accessories | |
| Included Items | FNIRSI DSO152 oscilloscope, Probe with crocodile clips, Charging cable, User manual |
Safety Warning | |
| Use the oscilloscope only for its intended purpose to ensure safety and measurement accuracy. | |
| Length | 200mm |
| Height | 50mm |
| Width | 120mm |
| Weight | 150 g |
