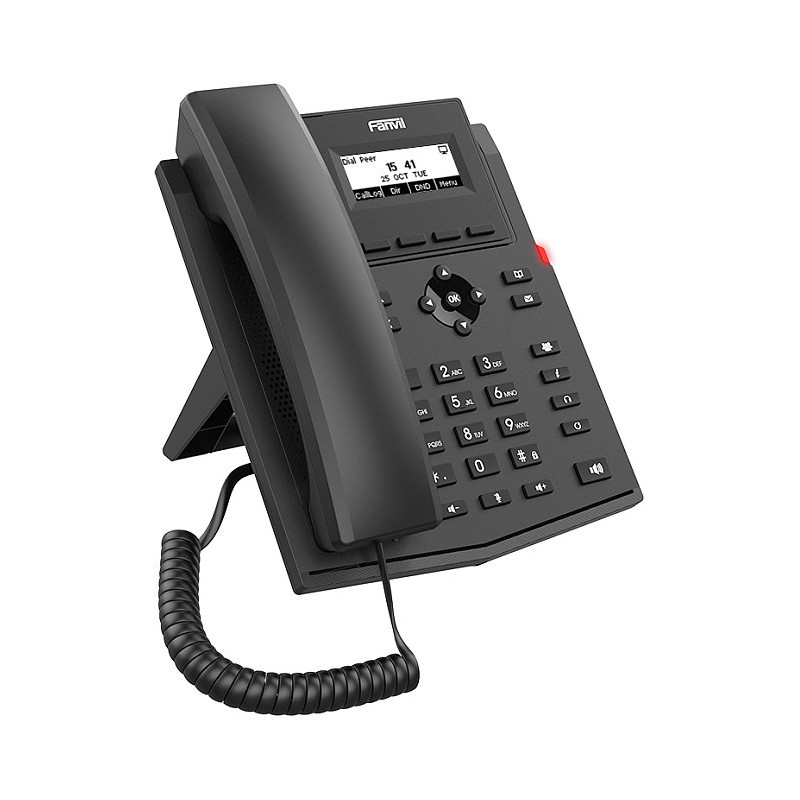

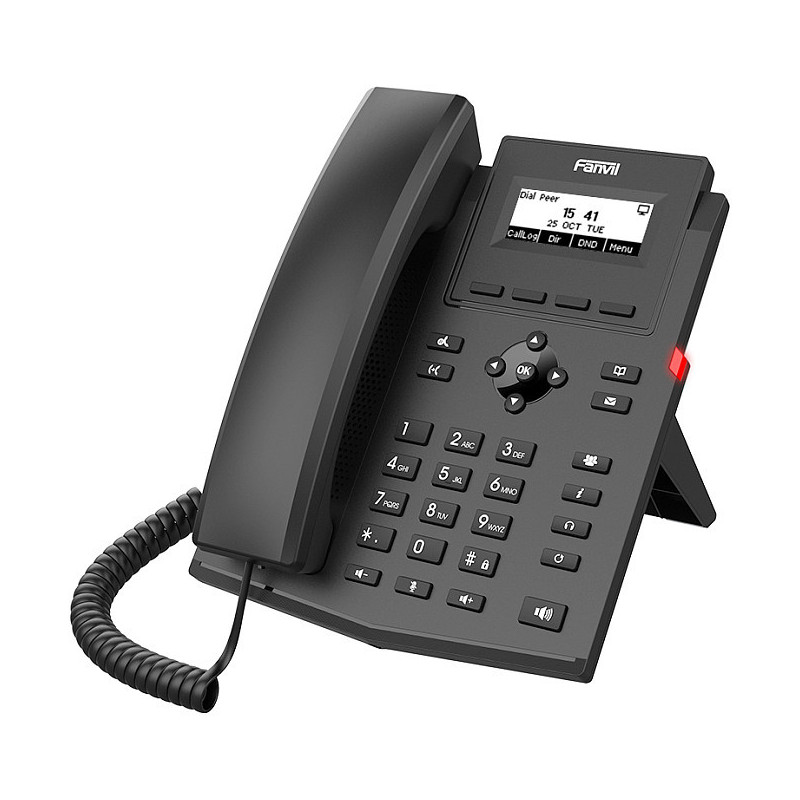

Fanvil X301W IP phone

Fanvil X301W. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Operating system installed: Linux, Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 2 lines, Phonebook capacity: 1000 entries. Volume control: Buttons. Display: LCD, Display diagonal: 5.84 cm (2.3"), Display resolution: 128 x 48 pixels

X301W is the cost-effective Wi-Fi IP phone with multi-function. It features a 2.3-inch 128x48 pixel dot-matrix display, supporting 2 SIP lines and local 6-party conferencing to render a user-friendly experience. X301W has rich functions such as HD audio and built-in 2.4GHz & 5GHz Wi-Fi, providing an efficient and high-quality business communication experience for enterprises.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Wall mountable
Mounting: Desk/Wall

Performance

Operating system installed: Linux
Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Lines quantity: 2 lines
Call log entries: 600
Feature: Hot desking
Feature: Call waiting
Feature: Intercom
Feature: Call hold
Feature: Call forwarding
Feature: Caller ID
Phonebook capacity: 1000 entries
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Call park
Feature: Call pick up
Feature: Anonymous call
Feature: Full duplex
Feature: Phonebook sharing
Feature: Call transfer
Feature: Message-waiting indicator (MWI)

Management features

Volume control: Buttons
Keypad number of keys: 33
Number of function keys: 9
Feature: Firmware upgradeable

Display

Display: LCD
Display diagonal: 5.84 cm (2.3")
Display resolution: 128 x 48 pixels
Feature: Backlight display

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: G.711a, G.711u, G.723.1, G.726, G.729ab, iLBC
Feature: Noise reduction
Feature: Echo cancellation
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Automatic gain control
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256
Feature: Quality of Service (QoS) support
Feature: DHCP client
Feature: Syslog

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power consumption (Power over Ethernet (PoE)): 2.11 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 177.4 mm
Depth: 169 mm
Height: 201.1 mm
Weight: 9 kg
Package width: 220 mm
Package depth: 55 mm
Package height: 250 mm
Package weight: 9.72 kg

Packaging content

Feature: Mounting kit
Feature: Analog line cable
Feature: Ethernet cable
Number of handles included: 1 pc(s)
Feature: Stand included
