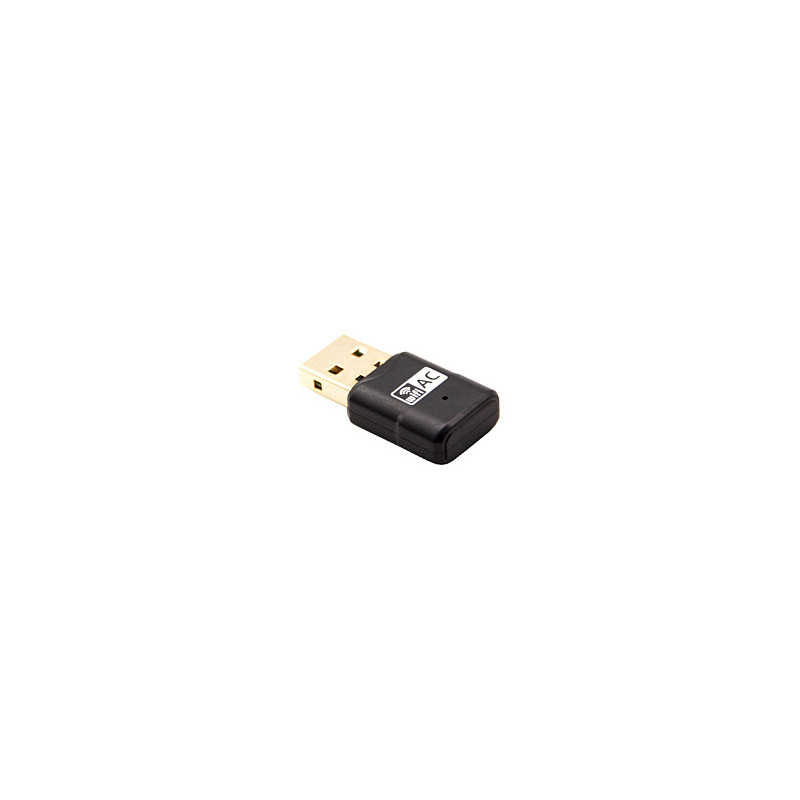

Fanvil WF20 network card

Fanvil WF20. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 150 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). USB powered. Product colour: Black

WF20 USB Wi-Fi Dongle is a low-power, small form factor device that can be implemented within offices for connecting their IP phones to available wireless networks. Supported by a powerful transmission rate of 150 Mbps, this dynamic plug-and-play style USB device is able to quickly and reliably establish Wi-Fi connectivity so that users can optimally communicate, collaborate, access pertinent documents and resources and more.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN
USB version: 2.0

Network

Maximum data transfer rate: 150 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Frequency range: 2.4 - 5.8 GHz
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Design

Component for: PC
Product colour: Black
Feature: Plug and Play

Power

Feature: USB powered

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 20 - 85%

Weight & dimensions

Width: 16 mm
Depth: 33 mm
Height: 7 mm
