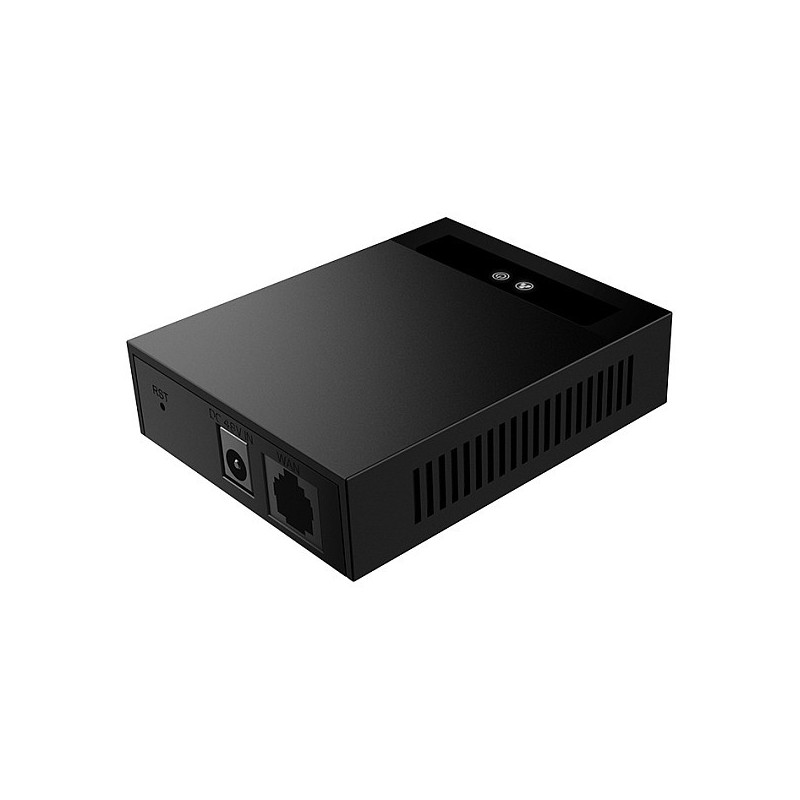

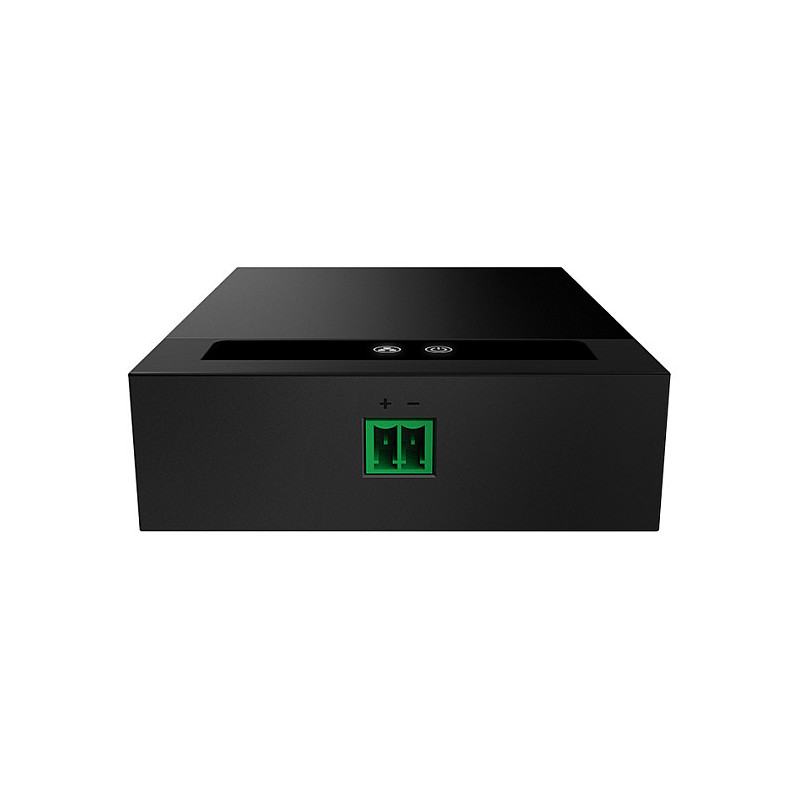

Fanvil PN1 network media converter

Fanvil PN1. Maximum data transfer rate: 100 Mbit/s. Maximum transfer distance: 1600 m. LED indicators: Network, Power, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1.5 A

Fanvil PN1 is a 2-wire converter featuring a unique design that facilitates the reuse of existing wires. It requires no cumbersome installation or wiring, simply plug it in and it's ready to use. This not only saves installation time but also significantly reduces overall wiring costs. This innovative feature makes PN1 an ideal choice for quick and efficient deployment in existing infrastructure, providing users with a more convenient and cost-effective experience.

Network

Maximum data transfer rate: 100 Mbit/s

Performance

Maximum transfer distance: 1600 m

Features

Feature: Reset button
LED indicators: Network, Power
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1

Power

Input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.5 A

Weight & dimensions

Width: 85 mm
Depth: 68 mm
Height: 22.7 mm
Weight: 690 g

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -30 - 80 °C

Packaging data

Package width: 202 mm
Package depth: 123 mm
Package height: 64 mm
