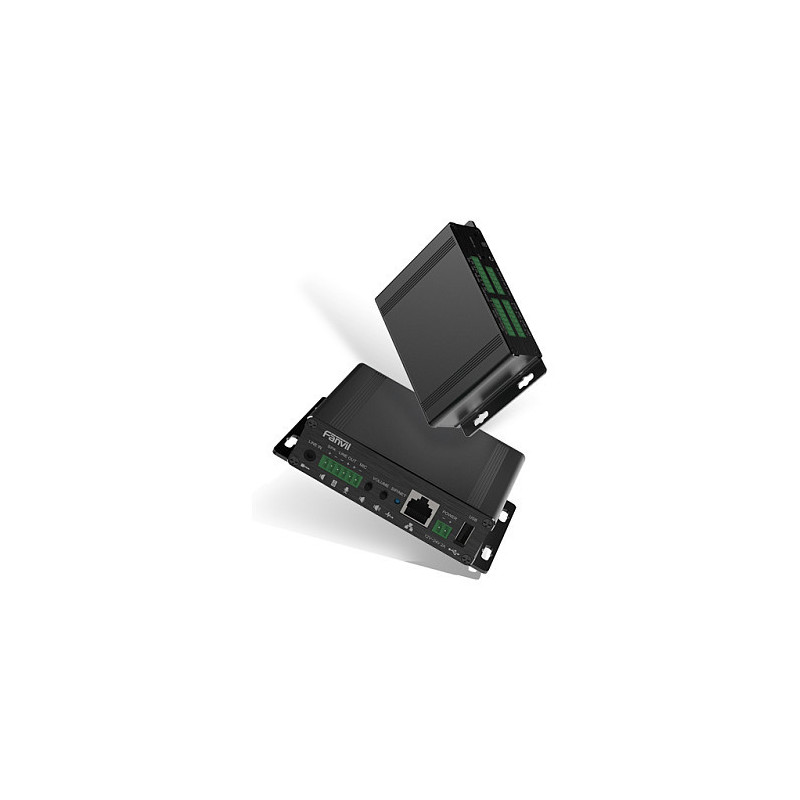

Fanvil PA3 gateway / controller

Fanvil PA3. Product colour: Black, Mounting type: Desktop/Wall mounting, LED indicators: Status. Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN.... Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X), VPN support: L2TP / OpenVPN. Headphone connectivity: 3.5 mm, Microphone connectivity: 3.5 mm. Input voltage: 12 - 24 V, Input current: 2 A

The design of Fanvil PA3 fits to every internal installation, especially for public broadcasting. With HD audio and function-rich interfaces, Fanvil PA3 can be used for real-time & fix-time MP3 broadcasting, and one-touch intercom when connecting to the external devices. Fanvil PA3 is your perfect choice to DIY the integrated broadcasting solution for the campus, shopping mall, railway station, building, etc.

Tiny Design for Limited Space
Small and stylish, Fanvil PA3 is suitable for the limited space in most of the application scenarios.

HD Audio for Public Broadcasting
With Wideband codec G.722 and Opus, Fanvil PA3
brings the users a crystal-clear telecom auditory
experience.

Perfect Choice for Secondary Development
Featuring rich interfaces, Fanvil can be developed into broadcasting devices, amplifiers,
and intercoms to meet the different requirements.

Achieve the Real-time and Fix-time Broadcasting
Connected to the USB or TF card max to 32G, Fanvil PA3 can be used to do the MP3
offline local broadcast as well as the online broadcast.

Video Linkage with IP Camera
Users can view the HD video image of the camera
on the IP phone through Fanvil PA3, for monitoring
the surrounding situation in real-time.

Design

Product colour: Black
Mounting type: Desktop/Wall mounting
LED indicators: Status

Protocols

Feature: DHCP server
Feature: DHCP client
Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLSRTP/RTCP/SRTPSTUNDHCPIPv6PPPoEL2TPOpenVPNSNTPFTP/TFTPHTTP/HTTPSTR-069

Network

Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
VPN support: L2TP / OpenVPN

Security

Feature: VLAN support

Ports & interfaces

USB 2.0 ports quantity: 1
Headphone connectivity: 3.5 mm
Microphone connectivity: 3.5 mm
Feature: SIM card slot
Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Reset button

Power

Input voltage: 12 - 24 V
Input current: 2 A
Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 125 mm
Depth: 31 mm
Height: 84.2 mm

Packaging data

Package width: 147 mm
Package depth: 58 mm
Package height: 114 mm

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 95%
