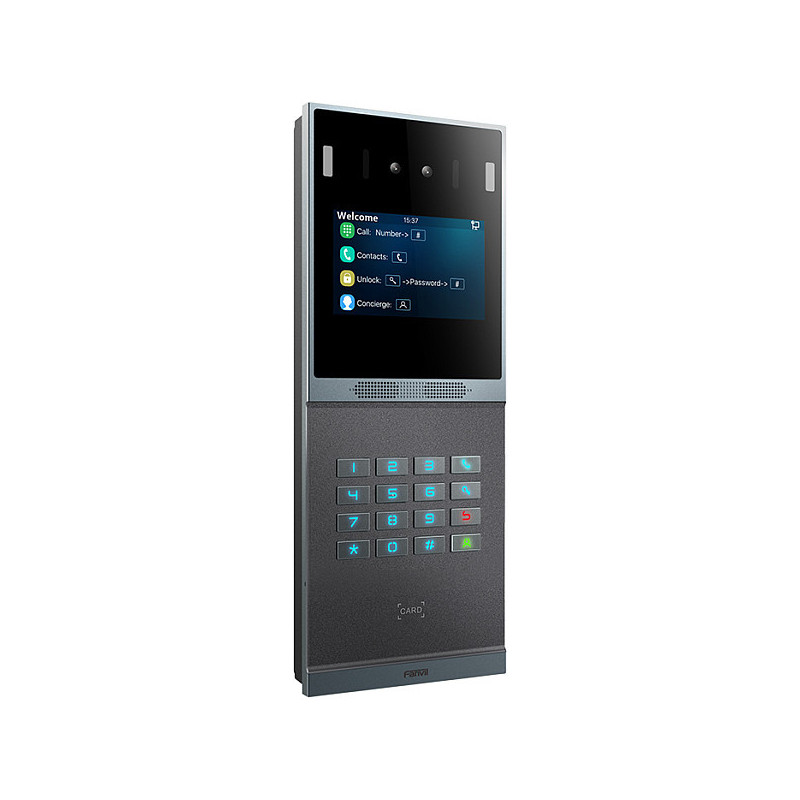

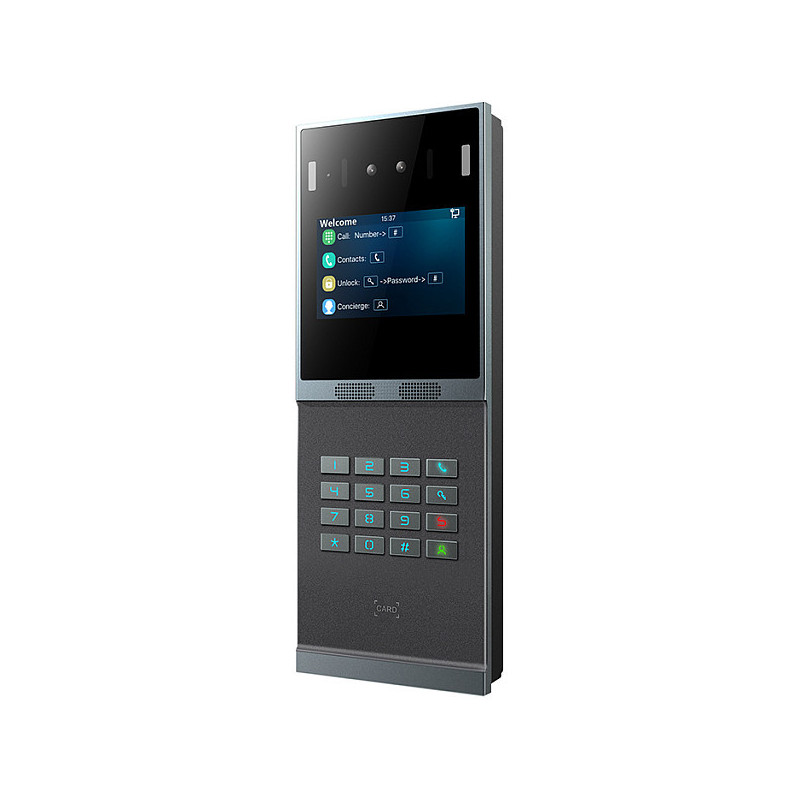

Fanvil i66 video intercom system

Fanvil i66. Display diagonal: 10.2 cm (4"), Display resolution: 800 x 400 pixels, Video formats supported: H.264. Megapixel (approx.): 2 MP, Viewing angle, horizontal: 62°, Viewing angle, vertical: 37.4°. LED type: IR. Speaker power: 3 W, Voice codecs: G.711a, G.711u, G.722, G.723.1, G.726-32, G.729A, G.729B, iLBC. Product colour: Black, Grey, International Protection (IP) code: IP66, IK code: IK07

i66 Face Recognition Door Phone
The i66 face recognition door phone is equipped with a 4-inch IPS color screen and incorporates high-precision face recognition technology. It features anti-spoofing liveness detection for images, videos, and masks, maximizing community security. Additionally, it supports audio and video communication with IP phones, indoor stations, or via a mobile app. With multiple door opening methods, it is widely applicable in community, apartment, and office building scenarios.

Technical details

Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Feature: Wall mountable
Feature: Motion detection function
Number of buttons: 16 buttons

Display

Display diagonal: 10.2 cm (4")
Display resolution: 800 x 400 pixels
Video formats supported: H.264

Camera

Megapixel (approx.): 2 MP
Viewing angle, horizontal: 62°
Viewing angle, vertical: 37.4°

Night vision

LED type: IR

Audio

Feature: Built-in speaker(s)
Speaker power: 3 W
Voice codecs: G.711a, G.711u, G.722, G.723.1, G.726-32, G.729A, G.729B, iLBC

Design

Product colour: Black, Grey
International Protection (IP) code: IP66
IK code: IK07
Housing material: Aluminium
Control type: Buttons
Proper use: Indoor & outdoor

Network

Feature: Power over Ethernet (PoE)
Supported network protocols: SIP 2.0 over UDP/TCP/TLS

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 115.6 mm
Depth: 33.2 mm
Height: 300 mm

Packaging data

Feature: Outdoor unit included

Logistics data

Quantity per pack: 1 pc(s)
