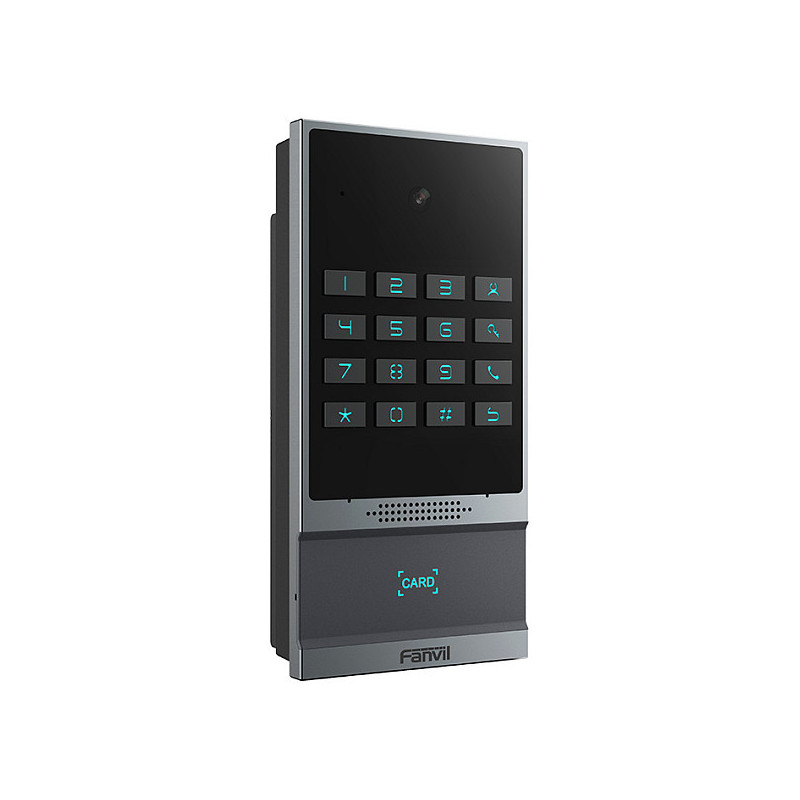

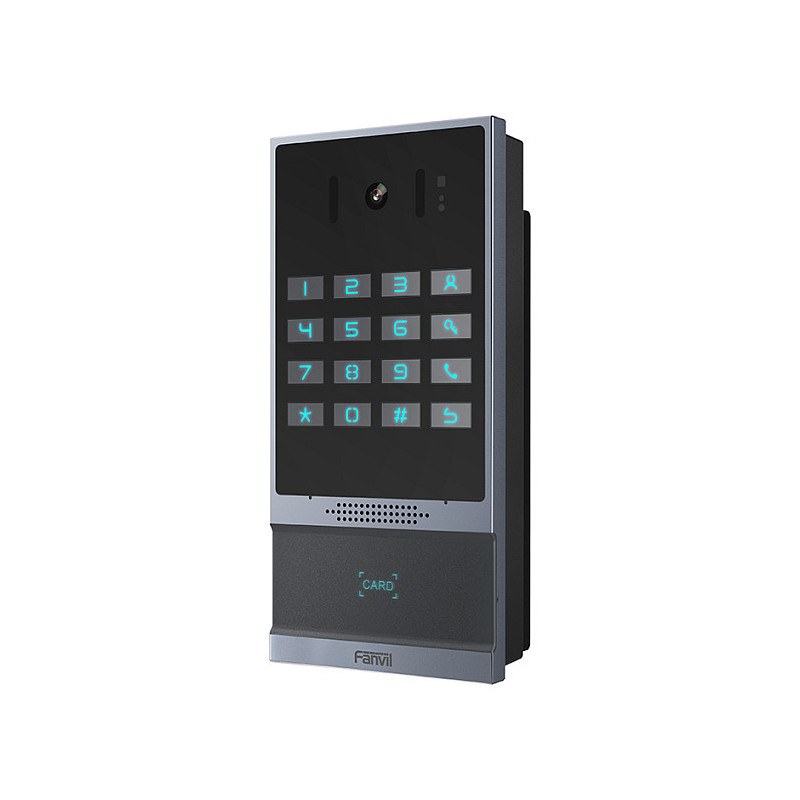

Fanvil i64 video intercom system

Fanvil i64. Megapixel (approx.): 2 MP, Maximum image resolution: 1920 x 1080 pixels, Supported video modes: 1080p. LED type: IR. Voice codecs: G.722. Product colour: Aluminium, International Protection (IP) code: IP67, IK code: IK07. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 128 GB

Based on SIP and ONVIF protocols, i64 is a video door phone that integrates powerful functionalities of access control, intercom, and security protection. Featuring an aluminum alloy design and a lighting numeric keypad, i64 delivers a high-quality elegant appearance. With high protection level IP66 and IK07, it is waterproof, dustproof and anti-collision in most outdoor environments. i64 allows users to make audio/video calls via a speed-dial button and a 2 Mega-pixel camera and achieve access control by different modes. With rich input and output interfaces, i64 is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.

Technical details

Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Feature: RFID reader
Feature: Motion detection function
Number of buttons: 1 buttons

Camera

Megapixel (approx.): 2 MP
Maximum image resolution: 1920 x 1080 pixels
Supported video modes: 1080p
Sensor type: CMOS
Optical sensor size: 30.5 / 9 mm (1.2 / 9")
Viewing angle, horizontal: 120°
Viewing angle, vertical: 60°

Night vision

Feature: Night vision
LED type: IR

Audio

Voice codecs: G.722

Design

Product colour: Aluminium
International Protection (IP) code: IP67
IK code: IK07
Housing material: Aluminium
Control type: Buttons
Proper use: Outdoor

Storage

Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 128 GB

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)

Management features

Feature: Web-based management
Feature: Syslog

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 88 mm
Depth: 36.1 mm
Height: 177.4 mm

Packaging data

Feature: Outdoor unit included
