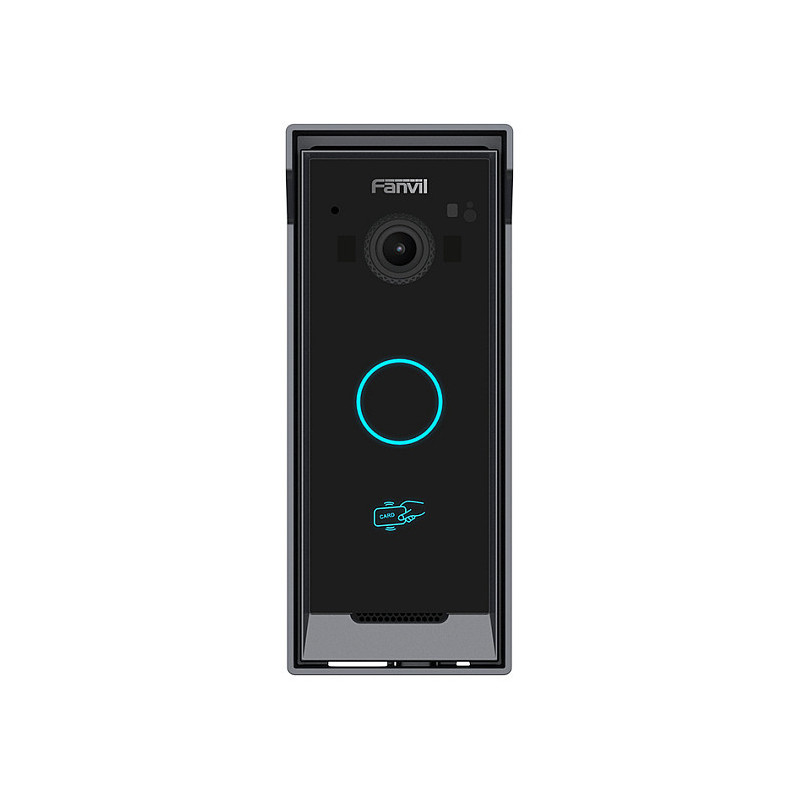

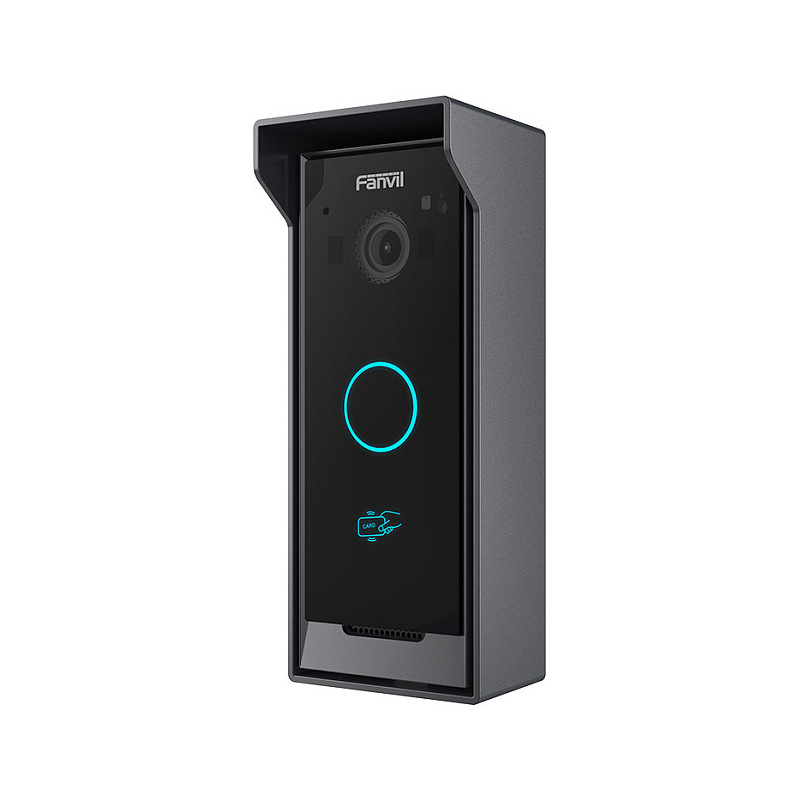

Fanvil I60 video intercom system

Fanvil i60 Video Door Phone. Video formats supported: H.264. Megapixel (approx.): 2 MP, Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). LED type: IR. Product colour: Black, International Protection (IP) code: IP65, Indoor unit housing material: ABS, Polycarbonate. Supported network protocols: SIP 2.0 over UDP/TCP/TLS

Fanvil i60 is a compact video door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as BLE, IC cards, remote DTMF and indoor switches for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.

Technical details

Maximum number of cameras supported: 1
Feature: Wall mountable
Feature: Motion detection function
Number of buttons: 1 buttons
Feature: Backlight buttons
Viewing angle: 140°

Display

Video formats supported: H.264

Camera

Megapixel (approx.): 2 MP
Sensor type: CMOS
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")

Night vision

Feature: Night vision
LED type: IR

Design

Product colour: Black
International Protection (IP) code: IP65
Indoor unit housing material: ABS, Polycarbonate

Network

Feature: Bluetooth
Supported network protocols: SIP 2.0 over UDP/TCP/TLS

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 50 mm
Depth: 30 mm
Height: 130 mm

Packaging data

Feature: Outdoor unit included
Feature: Camera included
Feature: Rain cover

Logistics data

Quantity per pack: 1 pc(s)
