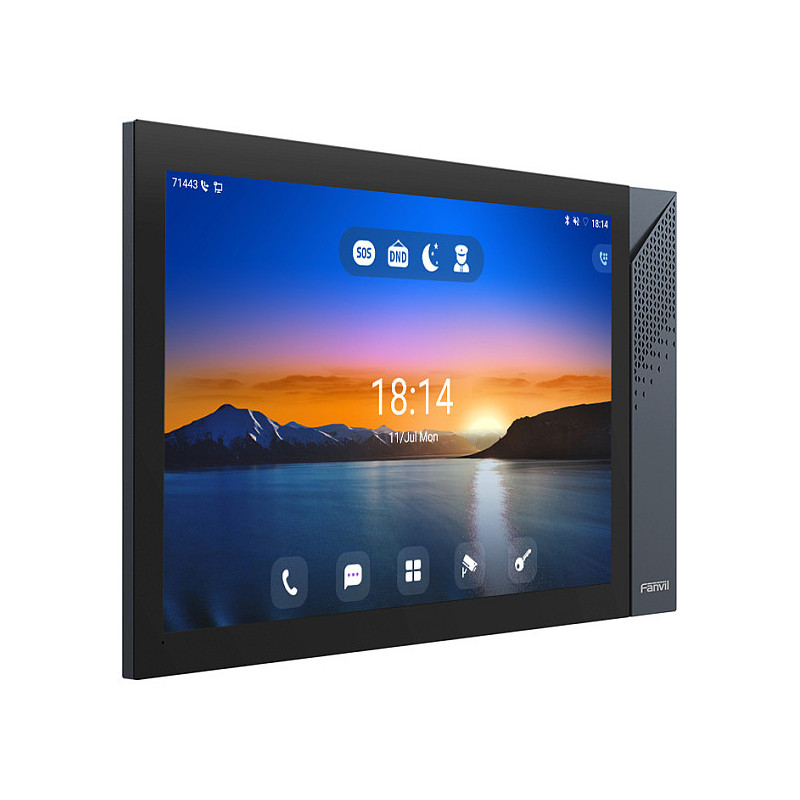

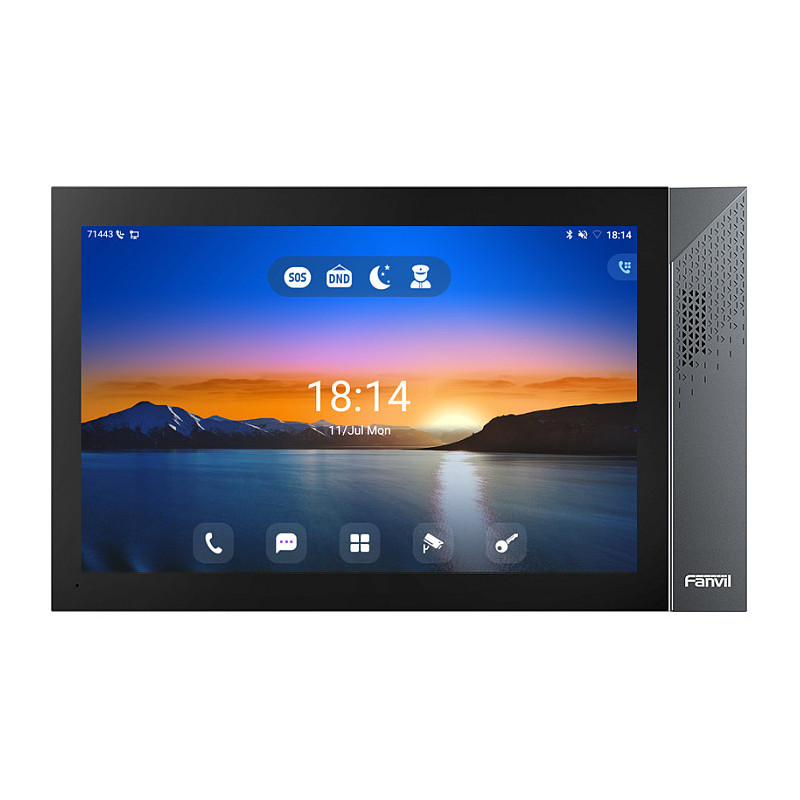

Fanvil i57A video intercom system

Fanvil i57A. Display diagonal: 25.6 cm (10.1"), Display technology: LCD, Display resolution: 1280 x 600 pixels. Speaker power: 2 W, Volume control: Buttons, Voice codecs: G.722, PLC, G.729ab, G.711a, VAD, G.711u, iLBC, CNG. Product colour: Stainless steel, Black, Control type: Buttons, Placement supported: Horizontal. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 256 GB. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X)

Fanvil i57A indoor station features a 10.1-inch color touch screen with an intuitive UI. Based on Android 9.0 operating system, it can meet industry application customization needs and secondary development. Featuring powerful functionalities like remote door opening and real-time monitoring for security devices, i57A can serve as a management assistant for communities, villas and office buildings.

Technical details

Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Number of displays supported: 1
Feature: Echo cancellation
Feature: Wall mountable
Feature: Built-in microphone
Video codecs: H.264
Number of buttons: 2 buttons

Display

Display diagonal: 25.6 cm (10.1")
Display technology: LCD
Display resolution: 1280 x 600 pixels

Audio

Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 2 W
Volume control: Buttons
Voice codecs: G.722, PLC, G.729ab, G.711a, VAD, G.711u, iLBC, CNG

Design

Product colour: Stainless steel, Black
Control type: Buttons
Placement supported: Horizontal
Proper use: Indoor

Storage

Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Feature: Bluetooth
Cabling technology: 10/100Base-T(X)
Feature: Power over Ethernet (PoE)

Management features

Feature: Web-based management
Feature: Static IP

Power

AC adapter output voltage: 12 V
AC adapter output current: 1 A

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 295 mm
Depth: 181 mm
Height: 24 mm

Packaging data

Feature: Indoor unit included
Feature: Mounting kit
Package width: 342 mm
Package depth: 227 mm
Package height: 76 mm

Logistics data

Quantity per pack: 1 pc(s)
