Fanvil i506W video intercom system

Fanvil i506W. Display diagonal: 25.6 cm (10.1"), Display technology: IPS, Display resolution: 1280 x 800 pixels. Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080p. Speaker power: 2 W, Voice codecs: G.722, OPUS. Product colour: Black, Indoor unit housing material: ABS, Proper use: Indoor. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.1x

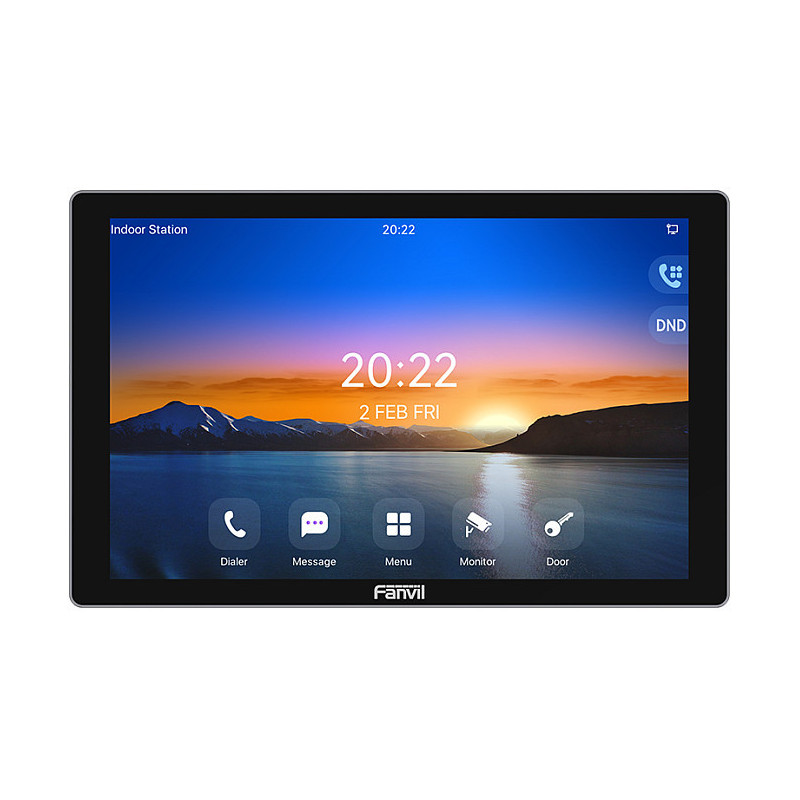

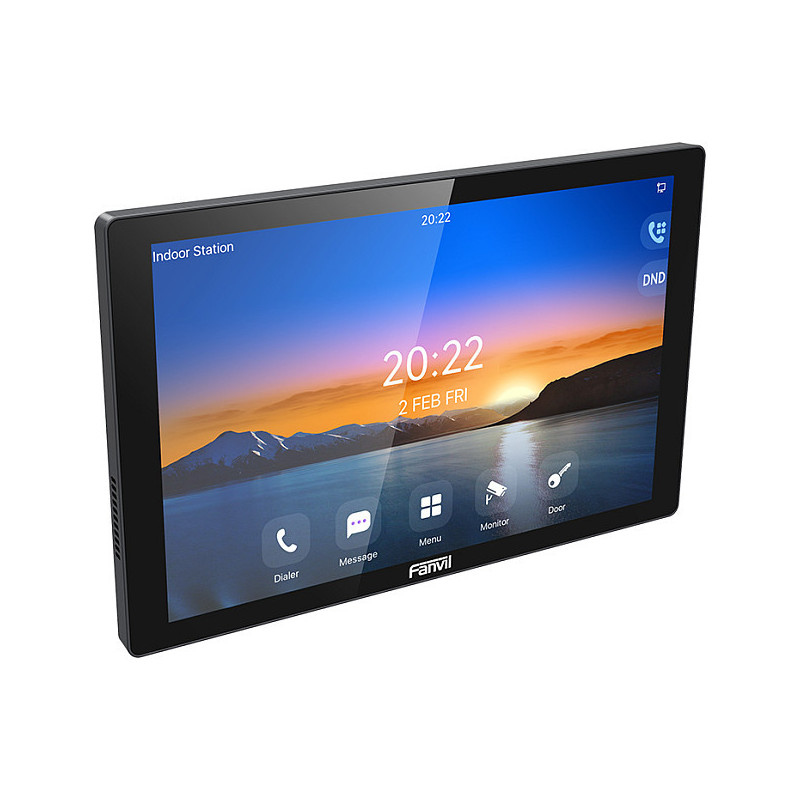

The i506W is a 10.1-inch touch screen indoor station, featuring a stylish design and intuitive UI. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.

Technical details

Connectivity technology: Wired & Wireless
Feature: Colour
Feature: Speakerphone
Number of displays supported: 1
Video codecs: H.264, H.265

Display

Display diagonal: 25.6 cm (10.1")
Display technology: IPS
Display resolution: 1280 x 800 pixels
Feature: Touchscreen
Touchscreen type: Capacitive

Camera

Maximum video resolution: 1920 x 1080 pixels
Supported video modes: 720p, 1080p

Audio

Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 2 W
Voice codecs: G.722, OPUS

Design

Product colour: Black
Indoor unit housing material: ABS
Proper use: Indoor

Indoor unit

RS-485 ports: 1

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.1x

Software

Operating system installed: Android
Operating system version: 9

Power

Indoor unit power type: DC/PoE
AC adapter output voltage: 12 V
AC adapter output current: 1 A
Power consumption (typical): 5.5 W
Power consumption (max): 6.6 W

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 157 mm
Depth: 248 mm
Height: 25.6 mm

Packaging data

Feature: Indoor unit included
