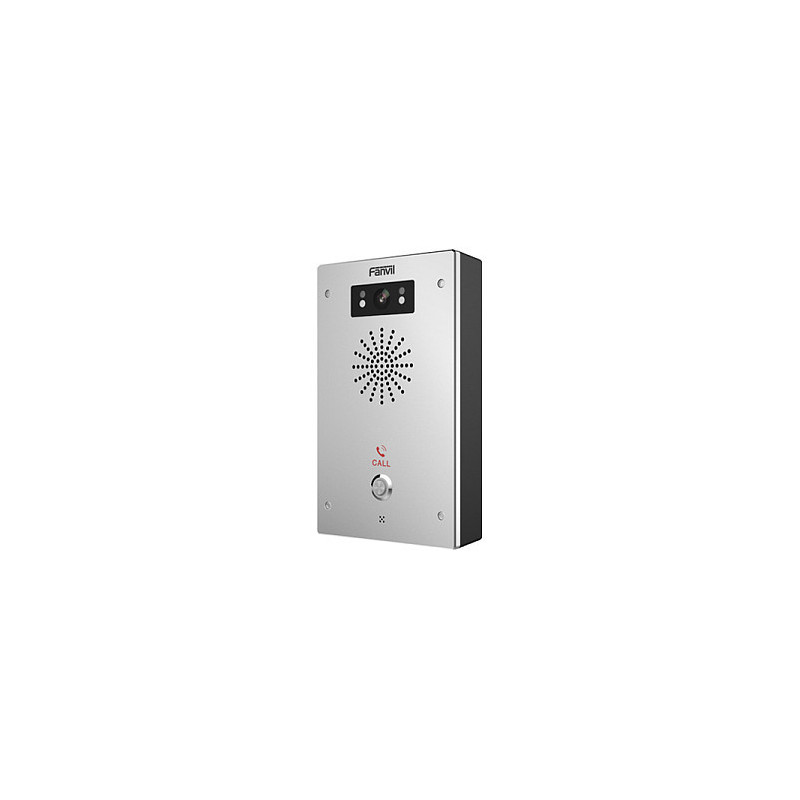

Fanvil I16SV video intercom system

Fanvil I16SV. Video formats supported: H.264. Megapixel (approx.): 2 MP, Supported video modes: 720p, 1080p, Minimum illumination: 0.1 lx. Volume control: Buttons, Voice codecs: G.711, G.711a, G.711u, G.723.1, G.726-32, G.729A, G.729B. Product colour: Silver, International Protection (IP) code: IP65, Indoor unit housing material: Aluminium. Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet, Ethernet LAN data rates: 10,100 Mbit/s

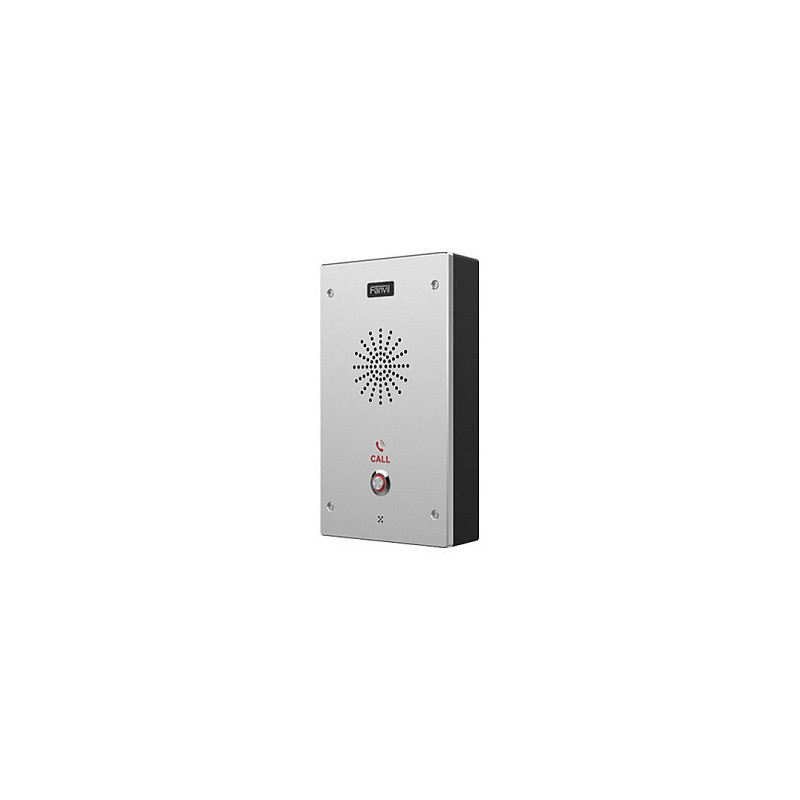

Fanvil i16S/i16SV SIP Audio/Video Intercom
Fanvil i16S/i16SV is a SIP intercom with exquisite appearance, integrating audio/video intercom and broadcasting functionalities. It supports wall mounting. With a dustproof, waterproof and anti-collision design rated at IP65 and IK10 protection grade, it can be applied in many indoor and outdoor scenarios and offer the best communication experience for users.

Superior Intercom Experience with HD Audio
i16S/i16SV intercom supports wideband codec G.722 and Opus,
providing superior HD intercom experience. Built-in audio line-out interface enables
it to do the broadcasting with an active speaker.

Emergency Call with HD Video
Featuring a 2M pixels camera, Fanvil i16SV can provide you a superb clear
video image when connecting to the devices that support video decoding.

Flexible Configuration for DSS Key
DSS key on Fanvil i16S/i16SV can be configured as different
functionalities on the webpage. Users can make an emergency
call to the specified IP/SIP account.

Achieve Local Broadcasting
Fanvil i16S/i16SV can be used to play the local music and audio
prompt with a TF card up to 32G.

Support Security Linkage, Make Alarm in Time
i16S/i16SV can trigger the video monitoring of the camera or the alarm
indicator with the short output port.

Multiple Protection Design
Featured with IP65 and IK10 protection grade and a wide temperature
range from -30°C to 60°C, i16S/i16SV can be applied in
many outdoor scenarios.

Easy Management
Configured via embedded web；Auto provisioning via Fanvil FDMS.
Reduce operation and maintenance costs

Technical details

Connectivity technology: Wired
Feature: Speakerphone
VoIP protocols: SIP INFO
Feature: Wall mountable

Display

Video formats supported: H.264

Camera

Megapixel (approx.): 2 MP
Supported video modes: 720p, 1080p
Minimum illumination: 0.1 lx
Viewing angle, horizontal: 98°
Viewing angle, vertical: 65°

Night vision

Feature: Night vision

Audio

Feature: Built-in speaker(s)
Volume control: Buttons
Voice codecs: G.711, G.711a, G.711u, G.723.1, G.726-32, G.729A, G.729B

Design

Product colour: Silver
International Protection (IP) code: IP65
Indoor unit housing material: Aluminium
Outdoor unit housing material: Aluminium
Proper use: Outdoor

Storage

Feature: Memory card slot

Network

Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Power over Ethernet (PoE)

Management features

Feature: Web-based management

Power

Indoor unit power type: AC/DC
Outdoor unit power type: AC/DC
AC adapter input voltage: 125 V
AC adapter output current: 0.5 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 195 mm
Depth: 120 mm
Height: 40 mm

Packaging data

Feature: Indoor unit included
Feature: Outdoor unit included
