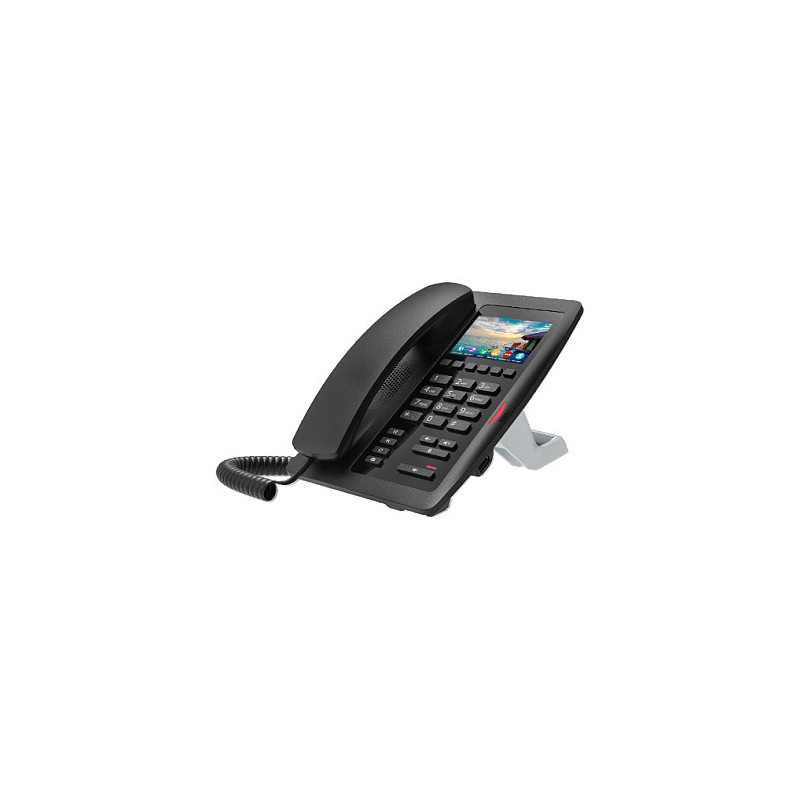

Fanvil H5W IP phone

Fanvil H5W. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 2 lines. Display diagonal: 8.89 cm (3.5"), Display resolution: 320 x 480 pixels. Voice codecs: G.711a, G.711u, G.722, G.729ab, OPUS, iLBC

As a WiFi IP phone with HD audio, Fanvil H5W can deliver you a smoother communication experience with HD audio and no cabling troubles. Fanvil H5W supports H.264 video decoding to help owners to view the video image before opening the door. More than a hotel IP phone, it is also suitable for the supermarket, hospital, shopping mall, etc.

3.5''Color Screen Displays
Hotel InformationFanvil H5W Hotel IP phone possesses one 3.5-inch color screen. Hotel managers could DIY the information on the screen from IP phone's management platform.

Check before Opening the Door
When connected with the SIP door phones, intercoms or camera at the door, Fanvil H5W enables you to view the video image of visitors in advance and achieve the remote door unlock.

Wireless, Limitless
Get tired of the messy cables? Connecting to the Network with 2.4G built-in WiFi, Fanvil H5W can be installed anywhere in the room without the limitation of cabling.

Capture Every HD Voice
With the wide codec G.722 and Opus, Fanvil H5W can convey every voice during your communications clearly and stably.

Elegant Outlook
Fanvil H5W is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

Programmable Soft Keys for Service Hotline
6 programmable Soft Keys for service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services (Morning call, Voice message, and etc).

Support SIP Hotspot
Fanvil H5W IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won't miss a call.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Lines quantity: 2 lines
Feature: Answering machine
Call log entries: 600
Feature: Distinctive ring
Feature: Speed dialling
Feature: Call hold
Feature: Redialing
Feature: Full duplex
Feature: Call transfer
Feature: Message-waiting indicator (MWI)

Management features

Keypad number of keys: 26
Feature: Firmware upgradeable

Display

Display diagonal: 8.89 cm (3.5")
Display resolution: 320 x 480 pixels

Audio

Feature: Microphone mute
Voice codecs: G.711a, G.711u, G.722, G.729ab, OPUS, iLBC
Feature: Noise reduction
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Video

Video codecs: H.264

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Supported network protocols: OpenVPN, L2TP, PPPoE, IPv6, DHCP, STUN, RTP/RTCP/SRTP, SIP v1 (RFC2543), v2 (RFC3261)
Feature: Quality of Service (QoS) support
Feature: Syslog
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
AC adapter output voltage: 5 V
AC adapter output current: 2 A

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 151.7 mm
Depth: 193.2 mm
Height: 131.7 mm
Package width: 225 mm
Package depth: 210 mm
Package height: 125 mm
