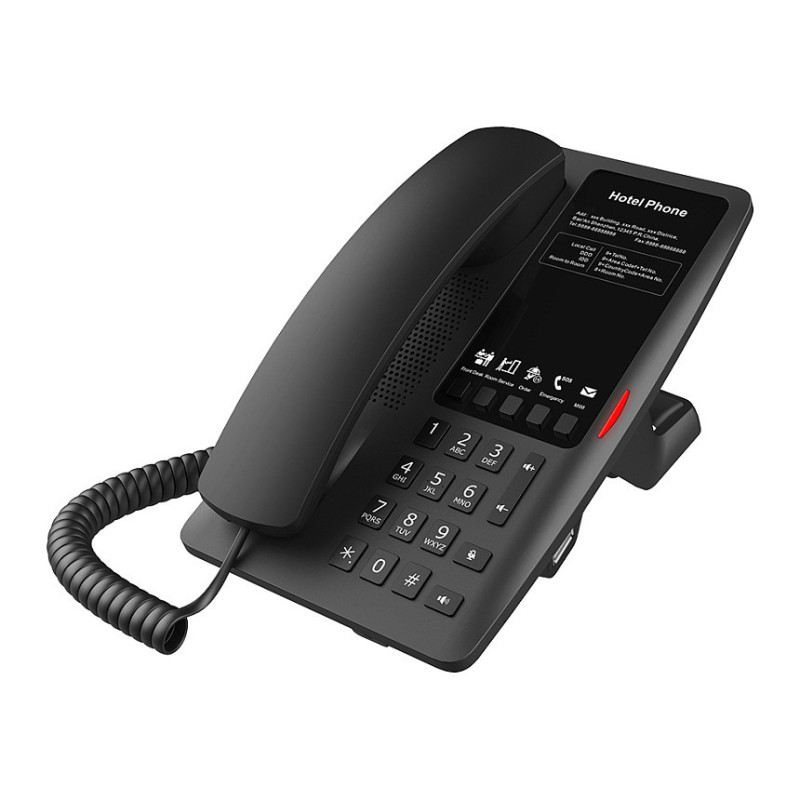

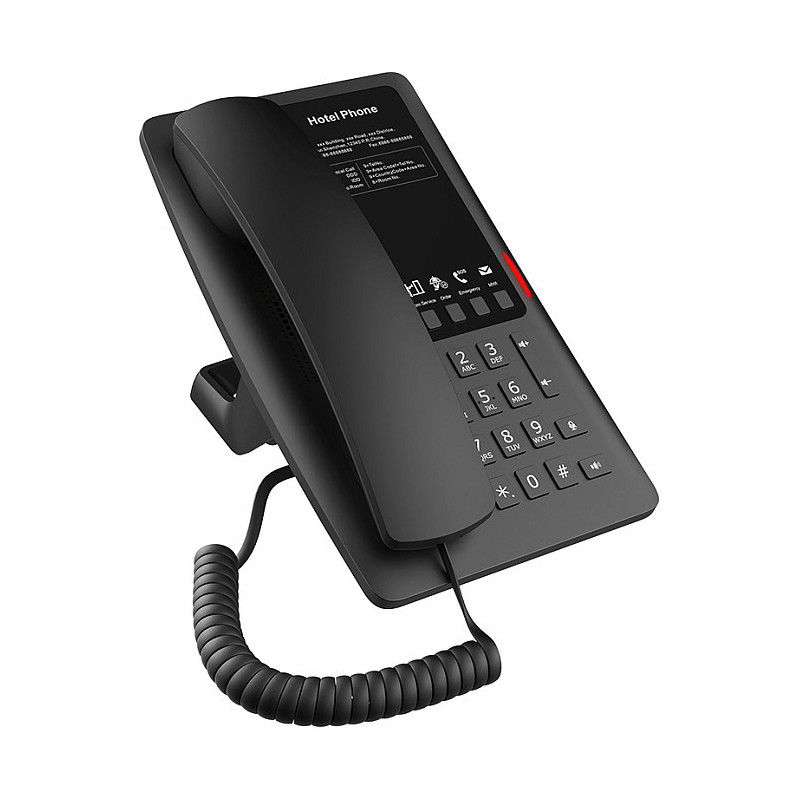

Fanvil H4 IP phone

Fanvil H4. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 2 lines. Voice codecs: G.711a, G.711u, G.722, G.729ab, OPUS, iLBC. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: OpenVPN, L2TP, PPPoE, IPv6, DHCP, STUN, RTP/RTCP/SRTP, SIP v1 (RFC2543), v2 (RFC3261)

Fanvil H4 is a cost-effective hotel IP phone with multiple functions and an elegant appearance. It is equipped with 5 programmable soft keys for the services hotline, catering to diverse hotel scenarios. Additionally, it features HD voice, 10/100Mbps Ethernet, and PoE, enhancing the overall user experience while reducing hotel deployment costs. Beyond hotel settings, the H4 is also suitable for use in shopping malls, hospitals, supermarkets, and other environments.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Lines quantity: 2 lines
Feature: Answering machine
Feature: Distinctive ring
Feature: Speed dialling
Feature: Call hold
Feature: Redialing
Feature: Full duplex
Feature: Call transfer
Feature: Message-waiting indicator (MWI)

Management features

Keypad number of keys: 21
Feature: Firmware upgradeable

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: G.711a, G.711u, G.722, G.729ab, OPUS, iLBC
Feature: Noise reduction
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Supported network protocols: OpenVPN, L2TP, PPPoE, IPv6, DHCP, STUN, RTP/RTCP/SRTP, SIP v1 (RFC2543), v2 (RFC3261)
Feature: Quality of Service (QoS) support
Feature: Syslog
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
RJ-9 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (typical): 7.8 W
Power consumption (Power over Ethernet (PoE)): 5.79 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 221 mm
Depth: 127.5 mm
Height: 70.5 mm
Package width: 190 mm
Package depth: 228 mm
Package height: 95 mm
