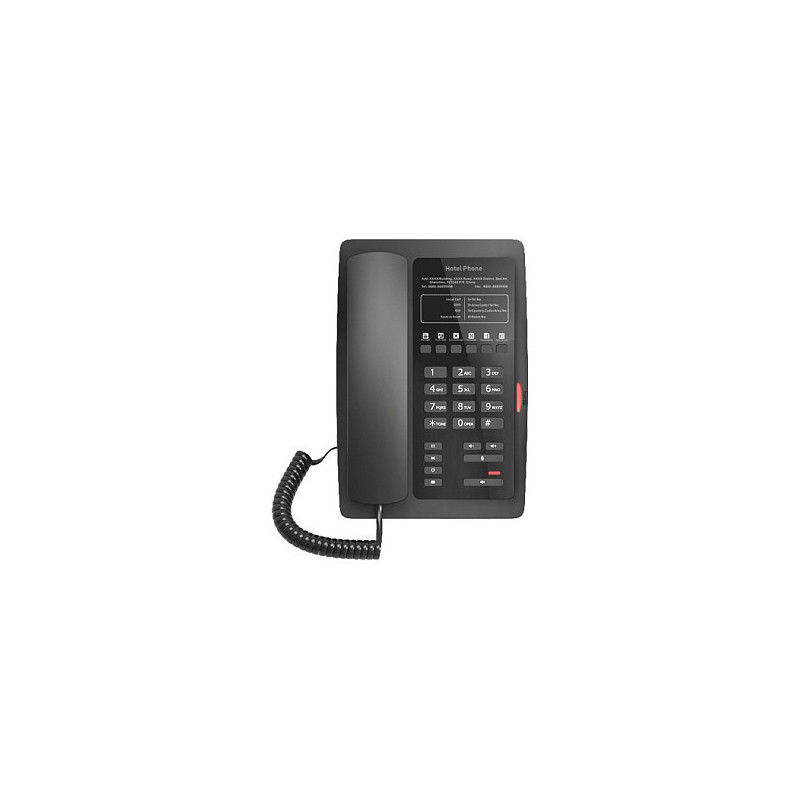

Fanvil H3W IP phone

Fanvil H3W. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 2 lines. Voice codecs: G.711a, G.711u, G.722, G.729ab, OPUS, iLBC. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: OpenVPN, L2TP, PPPoE, IPv6, DHCP, STUN, RTP/RTCP/SRTP, SIP v1 (RFC2543), v2 (RFC3261)

As a WiFi IP phone with HD audio, Fanvil H3W can deliver you a smoother communication experience without cabling troubles. More than a hotel IP phone, it is also suitable for the supermarket, hospital, shopping mall, etc.

Wireless with Built-in WiFi
Get tired of the messy cables? Connecting to the Network with 2.4G built-in WiFi, Fanvil H3W can be installed anywhere in the room without the limitation of cabling.

Capture Every HD Voice
With the wide codec G.722 and Opus, Fanvil H3W can convey every voice during your communications clearly and stably.

Elegant Outlook
Fanvil H3W is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

6 Programmable Soft Keys for Service Hotline
6 programmable Soft Keys for service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services (Morning call, Voice message, and etc).

Support SIP Hotspot
Fanvil H3W IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won't miss a call.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Lines quantity: 2 lines
Feature: Answering machine
Call log entries: 600
Feature: Distinctive ring
Feature: Speed dialling
Feature: Call hold
Feature: Redialing
Feature: Full duplex
Feature: Call transfer
Feature: Message-waiting indicator (MWI)

Management features

Keypad number of keys: 26
Feature: Firmware upgradeable

Audio

Feature: Microphone mute
Voice codecs: G.711a, G.711u, G.722, G.729ab, OPUS, iLBC
Feature: Noise reduction
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Supported network protocols: OpenVPN, L2TP, PPPoE, IPv6, DHCP, STUN, RTP/RTCP/SRTP, SIP v1 (RFC2543), v2 (RFC3261)
Feature: Quality of Service (QoS) support
Feature: Syslog
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
AC adapter output voltage: 5 V
AC adapter output current: 2 A

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 151.7 mm
Depth: 193.2 mm
Height: 131.7 mm
Package width: 225 mm
Package depth: 210 mm
Package height: 125 mm
