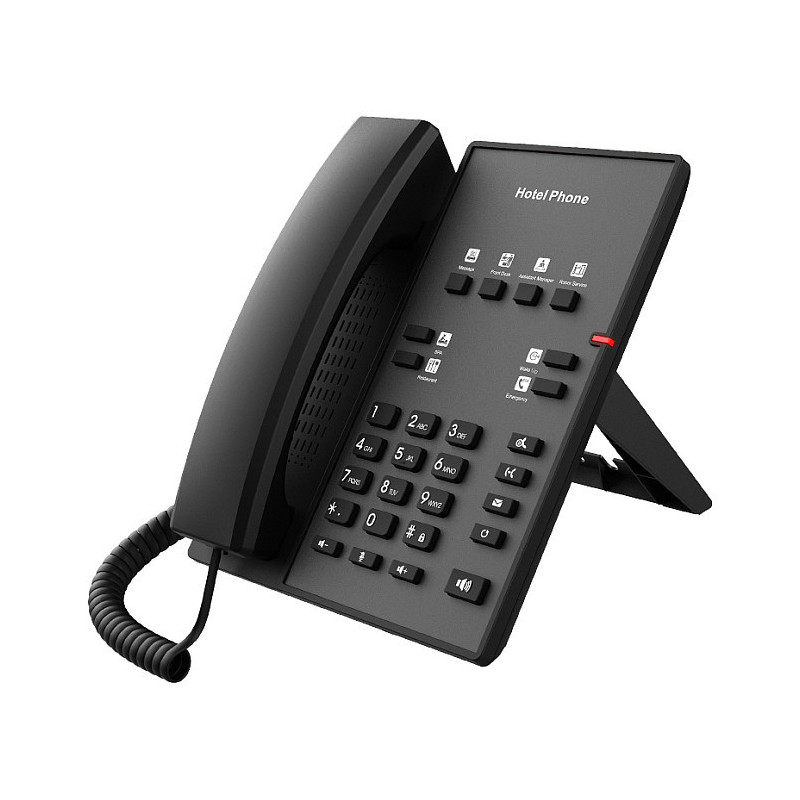

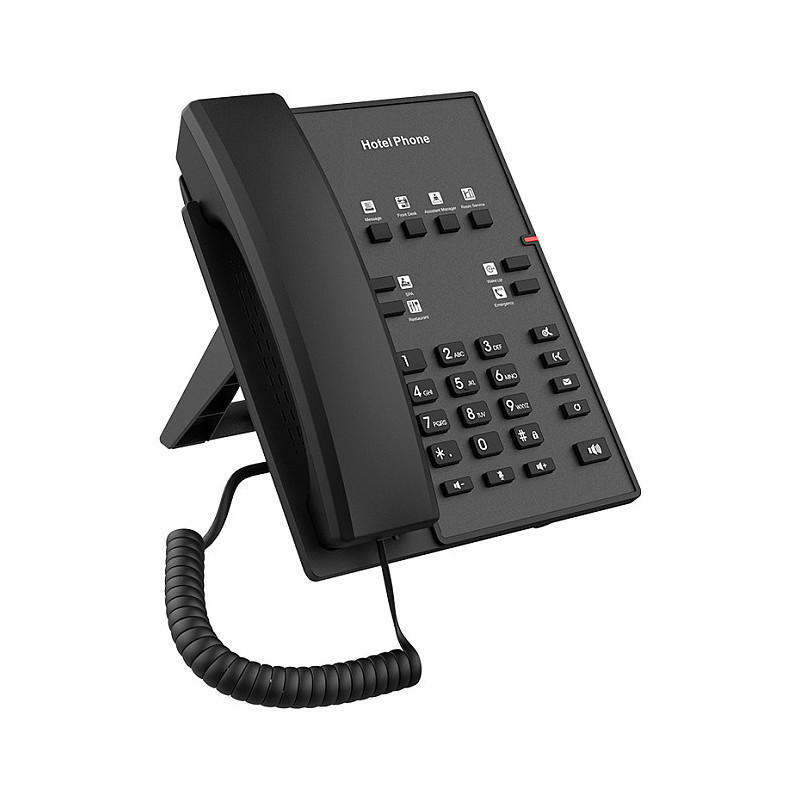

Fanvil H1 IP phone

Fanvil H1. Product type: IP Phone, Product colour: Black, Mounting: Desk/Wall. Lines quantity: 2 lines. Voice codecs: G.711a, G.722, G.723.1, G.726, G.729ab. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, VoIP protocols: SIP v1 (RFC2543), v2 (RFC3261) over, RTP/RTCP/SRTP. Headset connectivity: RJ-9

Fanvil H1 is a hotel IP phone with a cost-effective, multi-function, and elegant appearance. It is equipped with 8 programmable soft keys for the services hotline, meeting the application requirements of various hotel scenarios. In addition, H1 supports functions such as HD audio, 10/100Mbps network port, and integrated PoE, providing a high-quality user experience and reducing the cost of hotel deployment. It is more than a hotel phone and also can be applied in multiple scenarios, such as shopping malls, hospitals, and supermarkets.

Design

Product type: IP Phone
Product colour: Black
Feature: Wall mountable
Mounting: Desk/Wall

Phone features

Lines quantity: 2 lines
Feature: Call hold

Audio

Feature: Speakerphone
Voice codecs: G.711a, G.722, G.723.1, G.726, G.729ab
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Quality of Service (QoS) support
Feature: DHCP client
VoIP protocols: SIP v1 (RFC2543), v2 (RFC3261) over, RTP/RTCP/SRTP

Ports & interfaces

Headset connectivity: RJ-9
Ethernet LAN (RJ-45) ports: 1
RJ-9 ports quantity: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
AC adapter output voltage: 5 V
AC adapter output current: 0.6 A
Power consumption (typical): 1.438 W
Power consumption (Power over Ethernet (PoE)): 2.12 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 169 mm
Depth: 184 mm
Height: 124 mm

Packaging content

Number of handles included: 1 pc(s)
