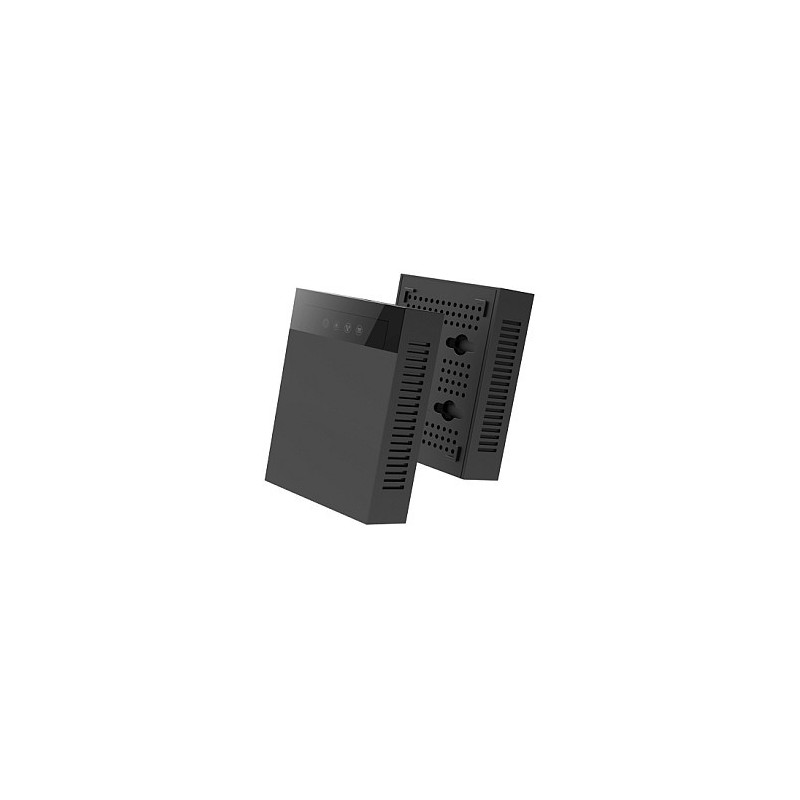

Fanvil GA10 VoIP telephone adapter

Fanvil GA10. Voice codecs: G.711a, G.711u, G.726, G.729A, G.729B, iLBC. Power source type: DC, USB, Output voltage: 5 V, Output current: 1 A. Width: 85 mm, Depth: 68 mm, Height: 22.7 mm

GA10 is a SIP ATA gateway with an easy-to-use FXS port. It supports G.722 and Opus audio codec, 2 SIP lines, 3-way conference advanced VoIP functionalities. By migrating to IP voice with easy-to-install ATA, GA10 enables users to take advantage of VoIP on analog phones. It provides convenient, stable and cost-effective communication solutions for individual, enterprise and operator to realize the deployment of VoIP.

Features

Voice codecs: G.711a, G.711u, G.726, G.729A, G.729B, iLBC
Feature: Noise reduction

Network

Feature: Web-based management
Feature: Quality of Service (QoS) support

Call management

Feature: Caller ID
Feature: Conference call
Feature: Call waiting

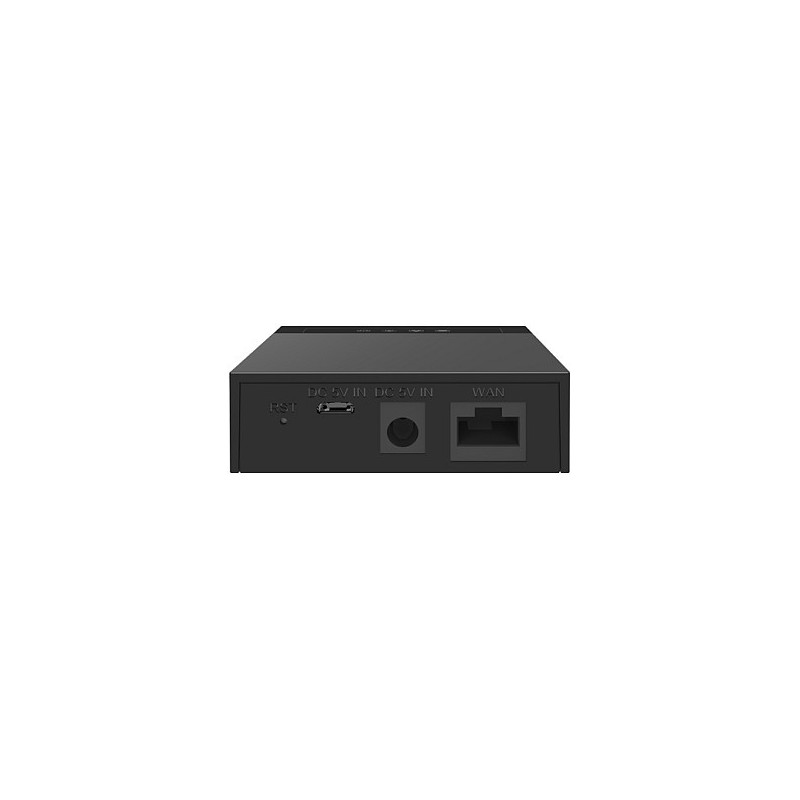

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Modem (RJ-11) ports: 1
USB 2.0 ports quantity: 1

Power

Power source type: DC, USB
Output voltage: 5 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 85 mm
Depth: 68 mm
Height: 22.7 mm
Package depth: 150 mm
Package width: 125 mm
Package height: 55 mm
