Fanvil A308I IP phone

Fanvil A308I. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Operating system installed: Android, Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 20 lines, Phonebook capacity: 2000 entries, Frequency band: 2.4, 5 GHz. Volume control: Buttons, Meeting features: Calendar. Display diagonal: 17.8 cm (7"), Display resolution: 1024 x 600 pixels

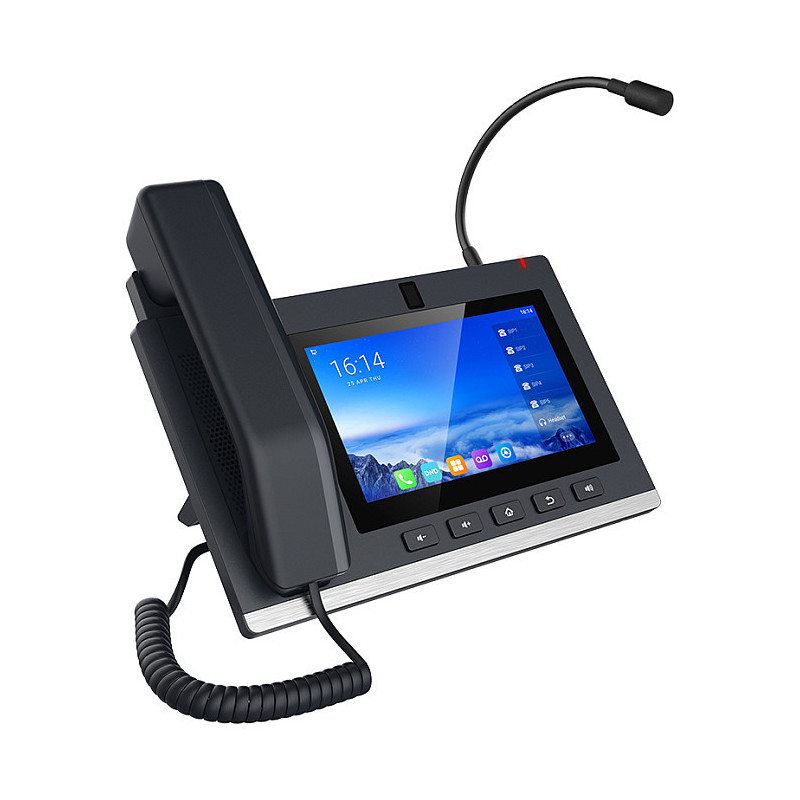

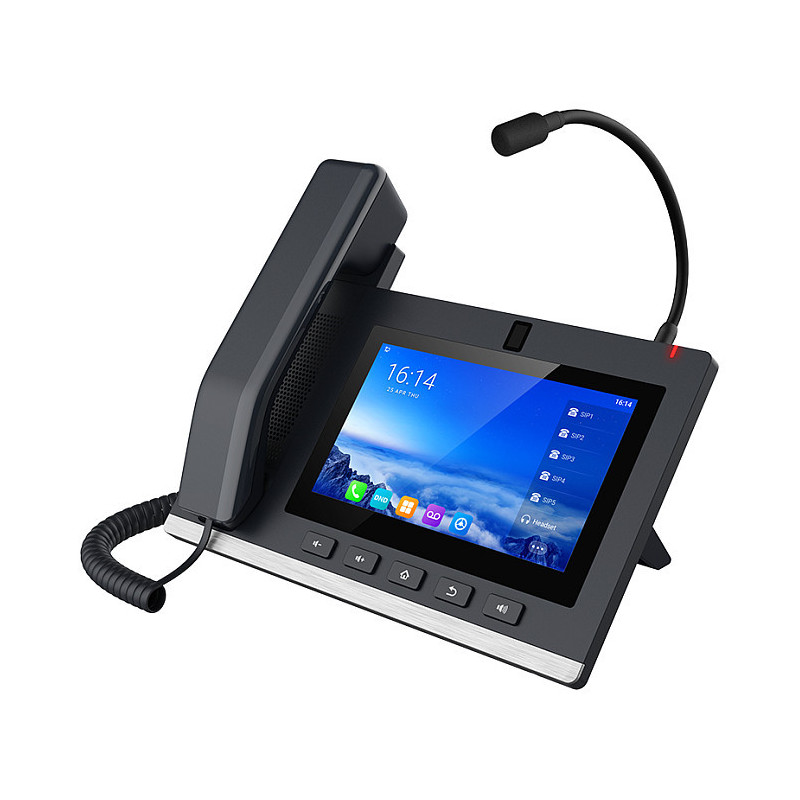

Fanvil A308i is an Android console IP phone that integrates audio and video applications. Running on Android 9.0, it supports third-party app installations. Featuring an intelligent speech algorithm and a gooseneck microphone, the A308i enables full-duplex voice calls with a maximum volume of 90dB. Its built-in 5 mega-pixel adjustable camera offers high-definition audio and video calling. Additionally, the A308i is equipped with a versatile bracket for both desktop and wall-mounted installations, accommodating various setup requirements.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Black

Performance

Operating system installed: Android
Operating system version: 9.0
Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info

Phone features

Lines quantity: 20 lines
Feature: Answering machine
Call log entries: 2000
Feature: Hot desking
Feature: Call waiting
Feature: Speed dialling
Feature: Intercom
Feature: Call hold
Feature: Caller ID
Phonebook capacity: 2000 entries
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Call park
Feature: Call pick up
Feature: Anonymous call
Feature: Full duplex
Frequency band: 2.4, 5 GHz
Feature: Call transfer
Feature: Message-waiting indicator (MWI)

Management features

Feature: Integrated voicemail
Volume control: Buttons
Meeting features: Calendar

Display

Display diagonal: 17.8 cm (7")
Display resolution: 1024 x 600 pixels
Feature: Touchscreen

Camera

Feature: Front camera

Audio

Feature: Speakerphone
Number of microphones: 1
Feature: Microphone mute
Microphone frequency: 20 - 20000 Hz
Voice codecs: G.711a, G.711u, G.722, G.729ab, VAD, iLBC
Feature: Noise reduction
Feature: Echo cancellation
Feature: Adaptive jitter buffers
Feature: Packet loss concealment (PLC)

Video

Feature: Video call
Video resolutions: 1280 x 720,1920 x 1080 pixels
Video codecs: H.264 /H.265
Video capturing speed: 30 fps

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Quality of Service (QoS) support
Feature: DHCP client

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power consumption (typical): 7.75 W
Power consumption (Power over Ethernet (PoE)): 9.77 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 265 mm
Depth: 172.1 mm
Height: 145.2 mm

Packaging content

Feature: Base station
Handset: Yes
Number of handles included: 1 pc(s)
