EXTRALINK PERSES EX-SG1008P 10 PORT GIGABIT POE SWITCH

Overview:

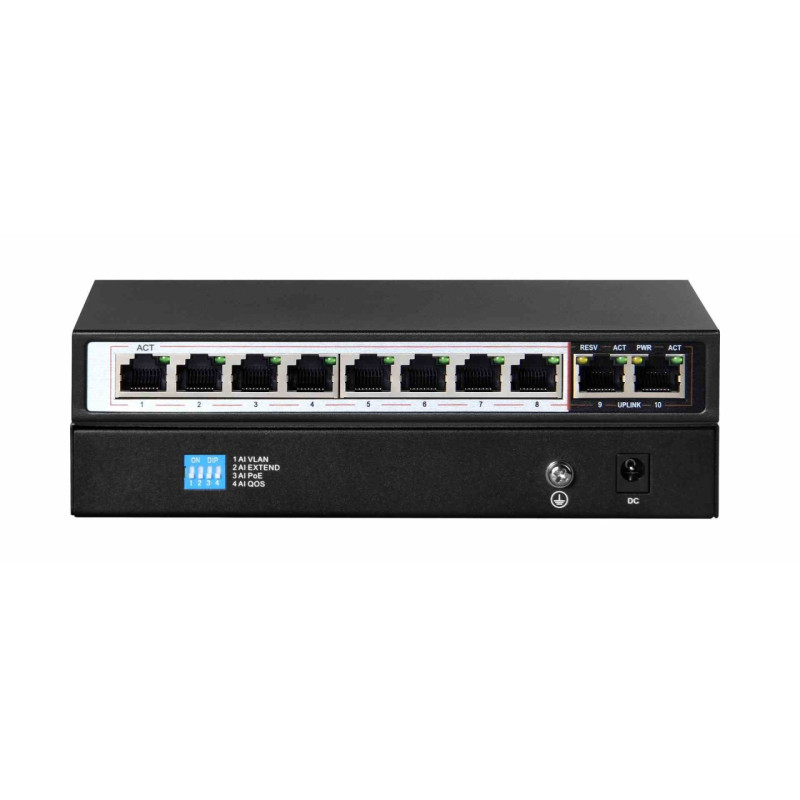

PERSES is a 10-port Gigabit AI PoE switch, It's supports 4 working modes: AI VLAN, AI Extend, AI PoE mode, AI QoS. All ports are freely communicated by default:

AI VLAN mode:1-8 ports are isolated from each other, which can effectively restrain network storms and improve network performance.

AI Extend mode:the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for remote monitoring and power supply.

AI PoE mode: the switch automatically detects the working status of the PD device and finds that the device abnormal automatically restarts the device.

AI QOS mode: the video data will be processed preferentially when the device is congested to make the video smooth.

PERSES supports IEEE 802 af/at standard, which can automatically detect and identify the PDs that comply with the IEEE 802 af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards.

Key Features:

- AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above)

- AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance.

- AI QOS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly.

- AI PoE: Automatic detection power of port, power off and restart the device if find dead machine.

- Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supplies power to it.

- Support Auto MDI/MDIX.

- Adopt store-and-forward exchange method.

- AI power supply, the lowest power consumption, ensure PD power needs.

- With power circuit protection, protect the safety of PD.

- No configuration characteristics of the power supply are automatically supplied to the adaptive equipment.

- Fanless design, energy saving and environmental protection; no noise, reduce the impact on the environment.

- Compact size design.

- Support port without link power saving function.

- All ports have wire-speed forwarding capability.

- Plug and play, easy to use.

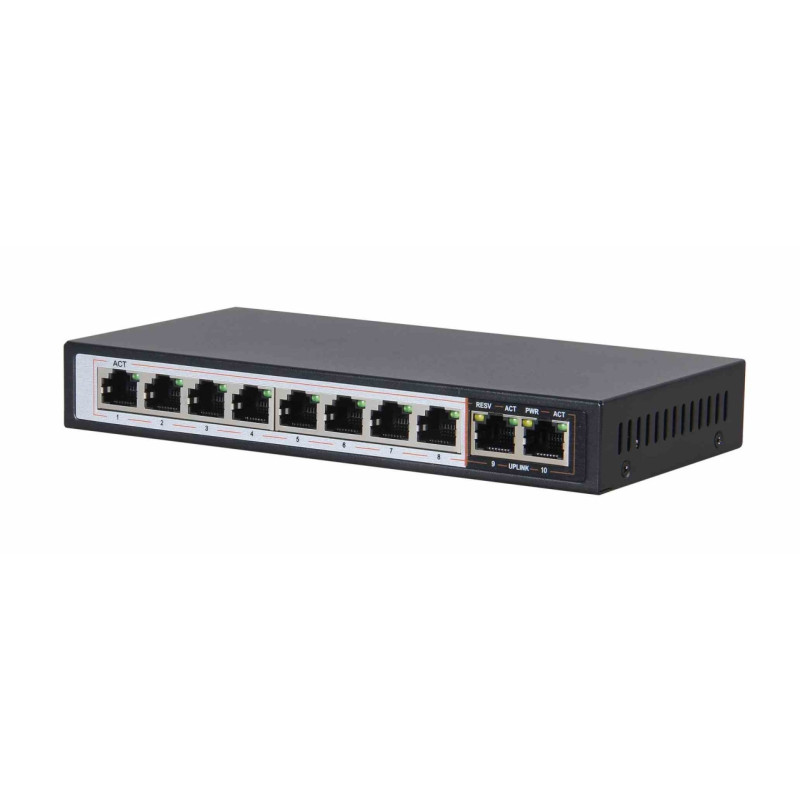

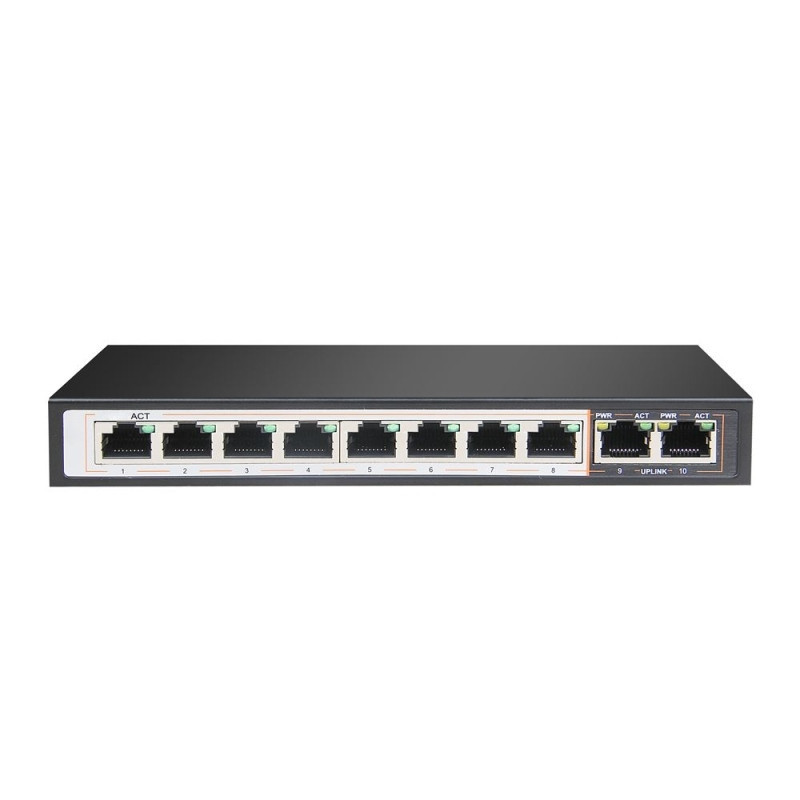

Network Ports:

· 8 10/100/1000Mbps PoE RJ45 ports (port 1～port 8)

· 2 10/100/1000Mbps non-POE RJ45 ports (port 9~port 10)

Transfer Rate:1000Mbps full Duplex

Network protocol:IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at

Performance:

- Bandwidth: 20Gbps(no block)

- Frame filtering and transmission rate: 1000M port maximum 1,488,000pps

LED indicators:

- Power

- RESV

- LINK/ACT

PoE Pins:1/2/4/5(+), 3/6/7/8(-)

Power:

- Max. output power single port: 30W

- Power supply: 96W

Dimensions

- Size (LxWxH): 184mm*94mm*27mm

- Weight: 1.1kg

Environment:

- Operating Temperature: 0°~40°C

- Operating Humidity:: 10%~90%, Non-condensing

EMC:

- CEClassB

- FCC Part 15, Class B

- VCCIClassB

- C-Tick

Safety regulations:CE/ROHS/FCC/CCC
