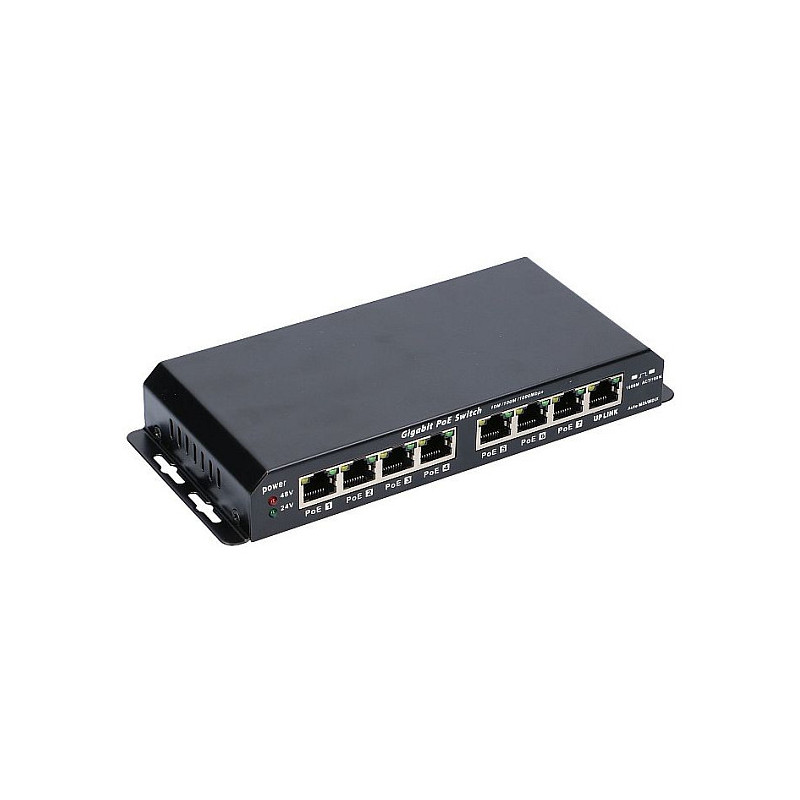

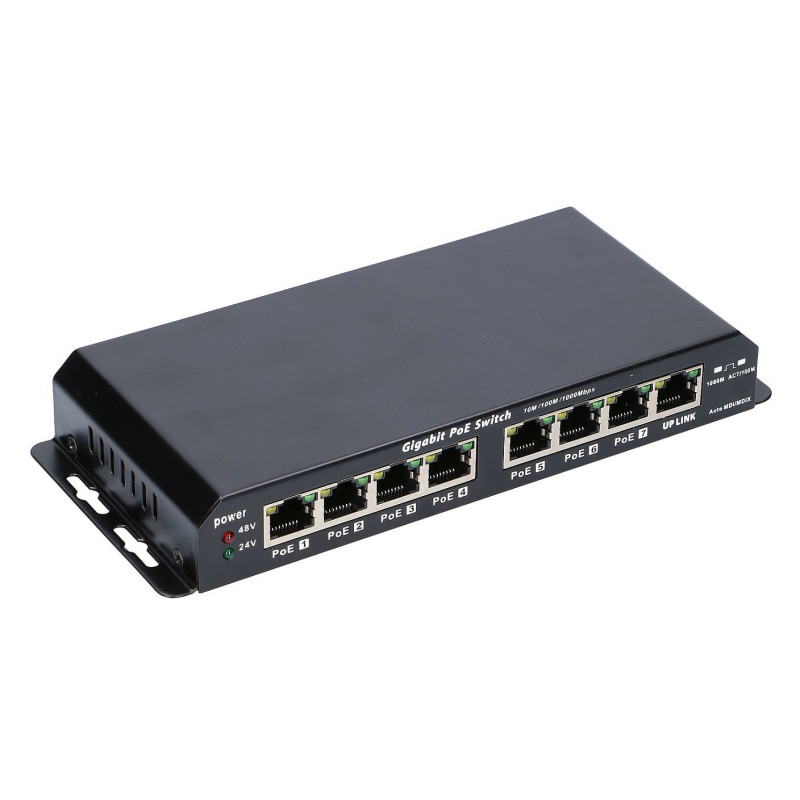

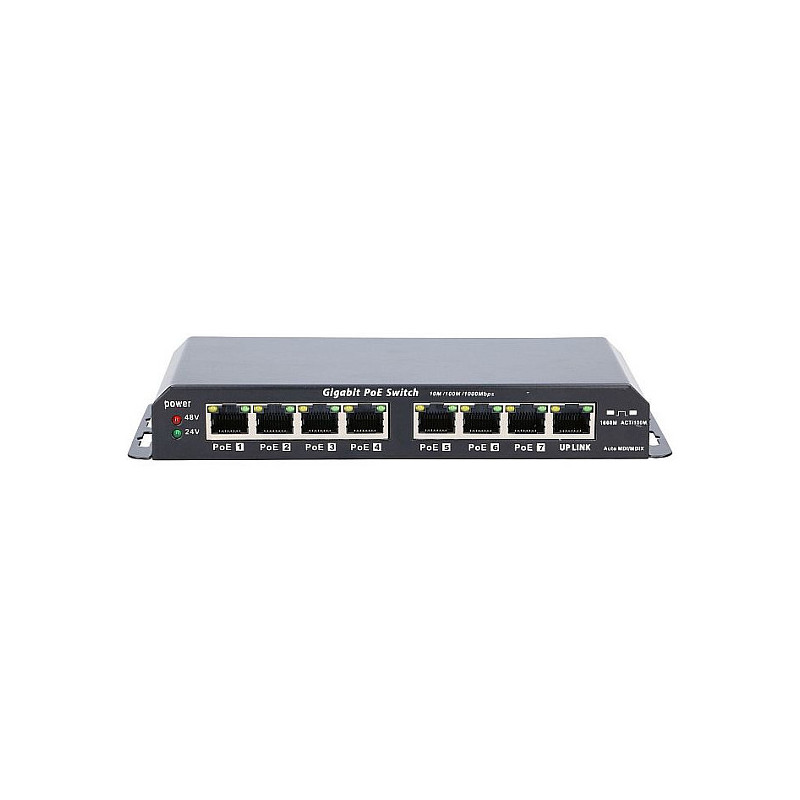

Extralink EX.1025 network switch

Extralink PoE Switch KRATOS 7x Gigabit PoE, 1x Uplink RJ45, Power Supply 24V 2.5A, 60W. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4096 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3af. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: 1U

The EXTRALINK GIGABIT POE SWITCH Power Source Convenient switch combines an small-high efficiency 8-port 10/100/1000 Mbps switch with 7 PoE port. The EXTRALINK GIGABIT POE SWITCH use an external 18VDC to 57VDC power adaptor. All 7 PoE Ethernet ports can provide 30W power as well as 10/100/1000M data transmission over standard readily available Cat 5/ 5e / 6 cables.

The EXTRALINK GIGABIT POE SWITCH PoE allow for data and power to be transmitted over a single Ethernet twisted-pair cable to the attached devices. The EXTRALINK GIGABIT POE is Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that comply with the passivet PoE standard, allowing users to attach any PoE compliant device such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) to the PoE Switch without requiring additional power.

The unit is designed with home and small business users in mind and is a cost effective solution for environments where AC power is not available or too costly to install.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

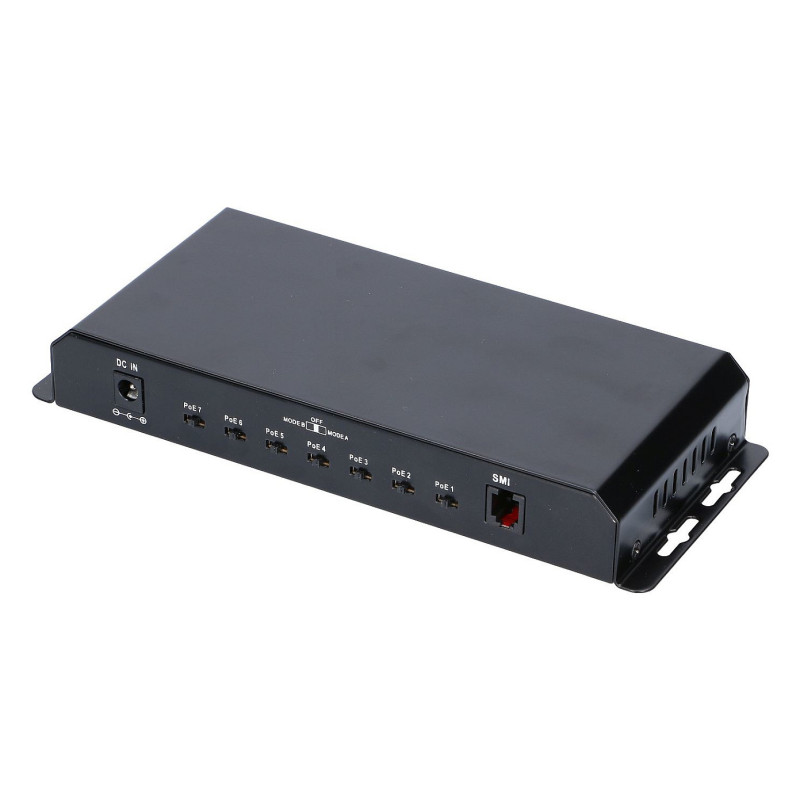

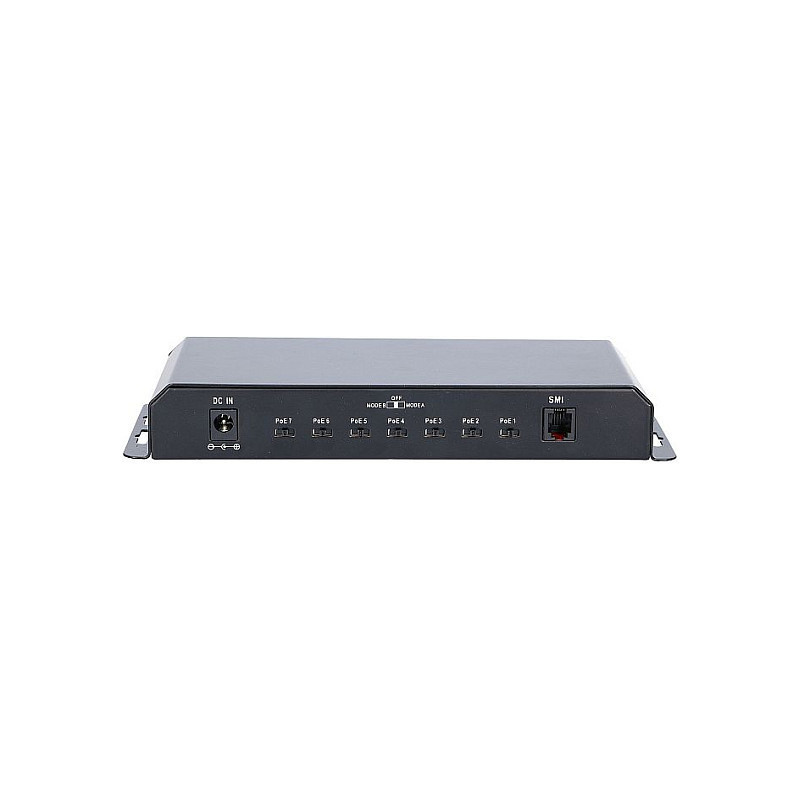

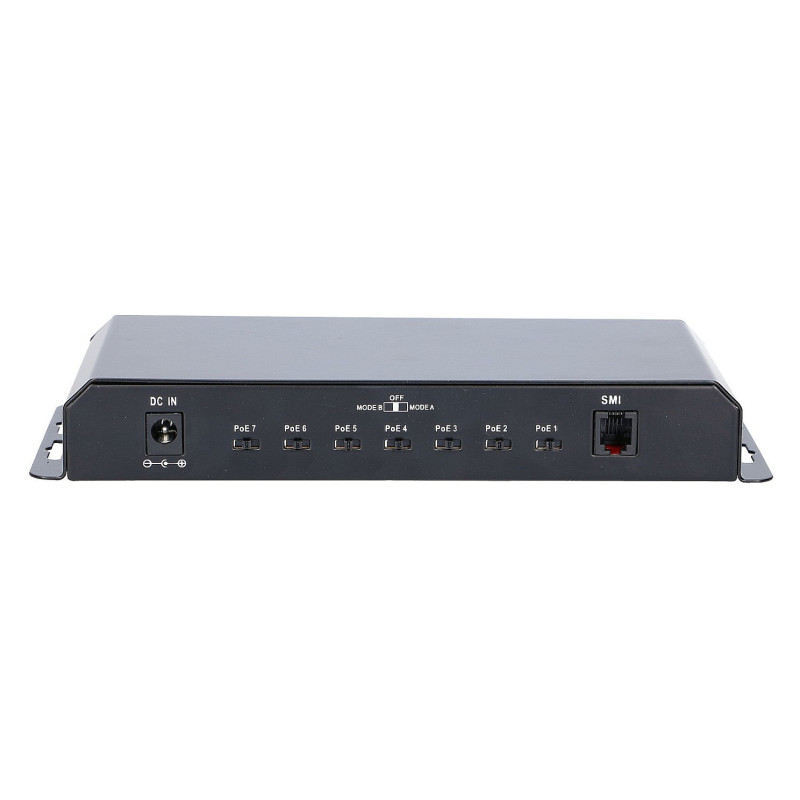

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3af
Cable types supported: Cat5, Cat5e, Cat6
Feature: Auto-negotiation

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4096 entries

Design

Form factor: 1U
Product colour: Black
Housing material: Metal
Feature: Reset button
LED indicators: Yes

Power

Power source: AC

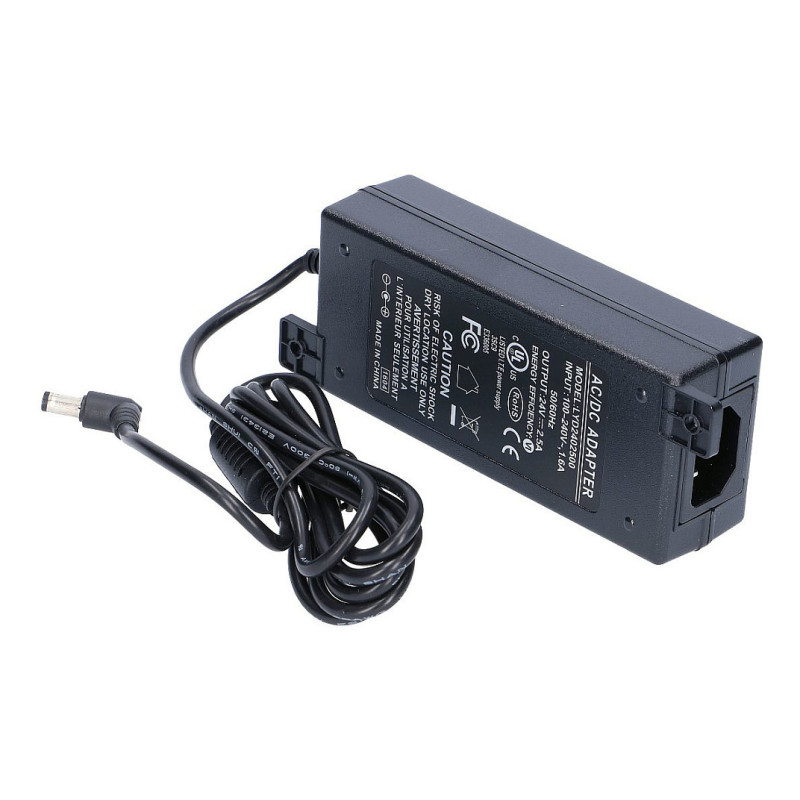

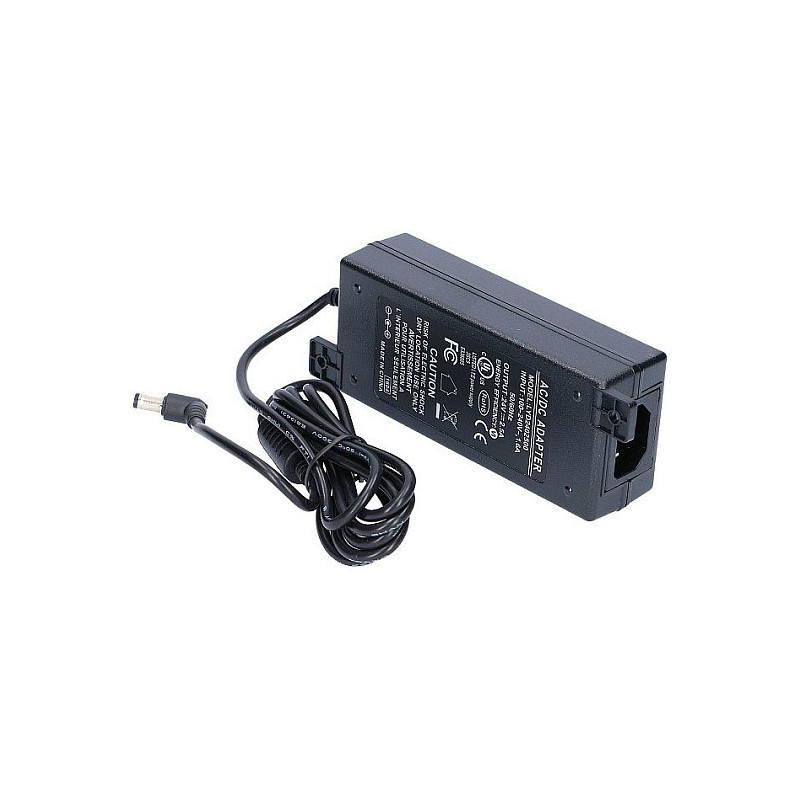

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2.5 A
Output voltage: 18 - 56 V
Output power: 90 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range: 24 - 48 V
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 60 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 192 mm
Depth: 82 mm
Height: 27 mm
Weight: 500 g

Certificates

Certification: CE & FCC
