EXTRALINK CAT6 FTP (F / UTP) V2 OUTDOOR TWISTED PAIR 305M
Product reference:
18-EL-LAN-FUTP-CAT6-305
EXTRALINK CAT6 FTP (F/UTP) V2 OUTDOOR TWISTED PAIR 305M
EXTRALINK CAT6 FTP (F / UTP) V2 OUTDOOR TWISTED PAIR 305M
Product reference:
18-EL-LAN-FUTP-CAT6-305
EXTRALINK CAT6 FTP (F/UTP) V2 OUTDOOR TWISTED PAIR 305M
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Manufacturer:
Extralink

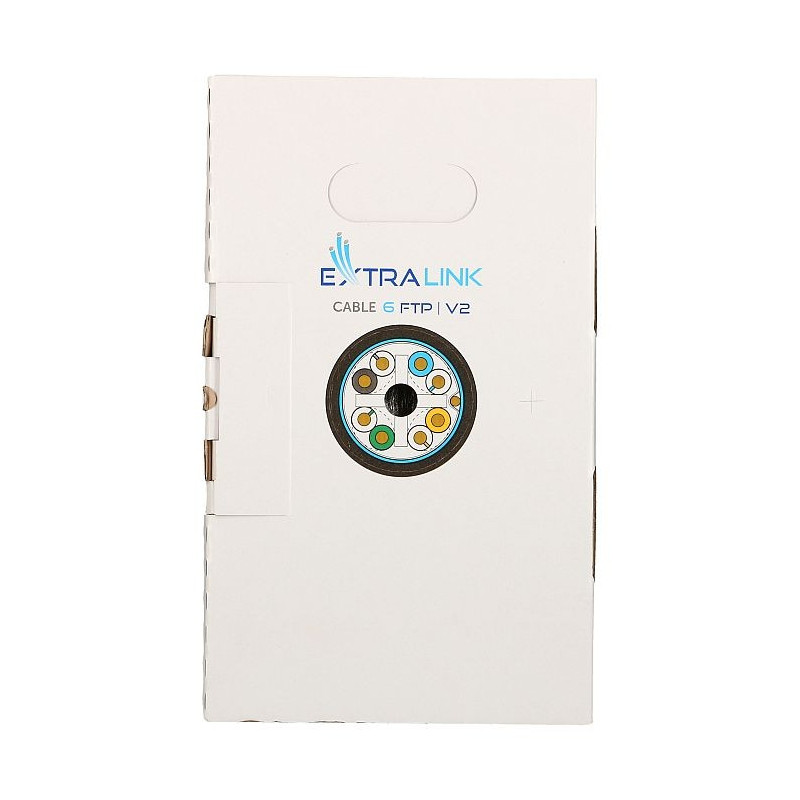

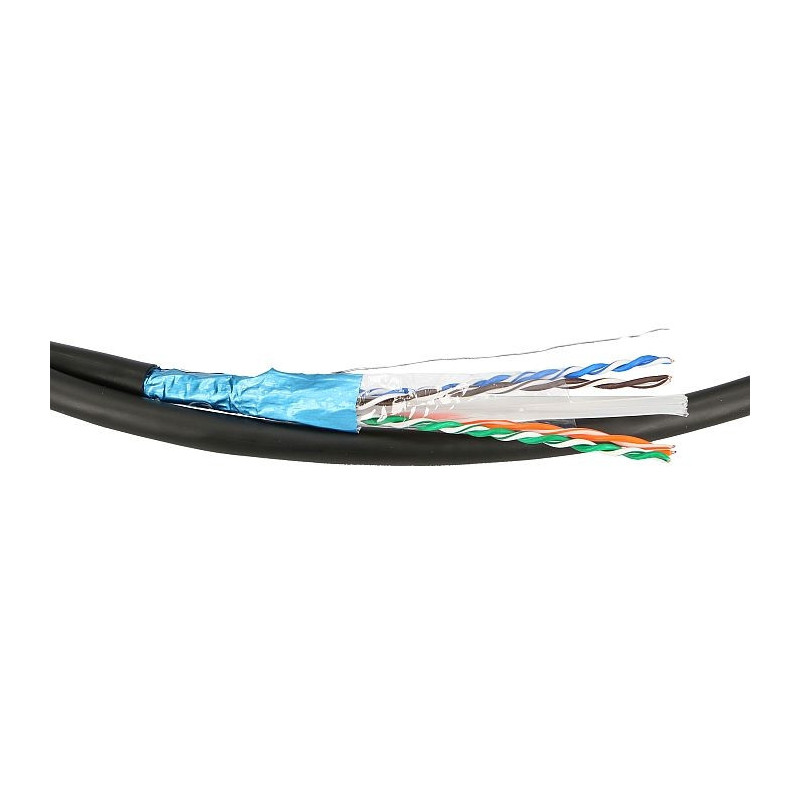

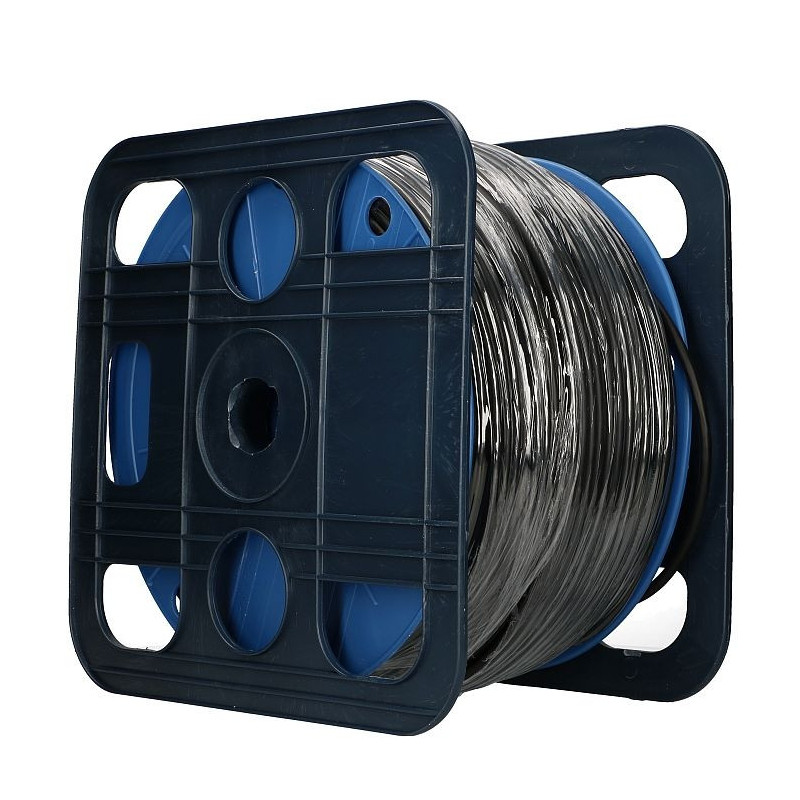

The wires are made of pure copper and are surrounded by a PE sheath with a diameter of 1.08mm. The cable is shielded with aluminum foil and has an additional grounding wire. External PE sheath is 0.60mm thick. The packaging is equipped with a self-reeling roller, which allows you for convenient cable unwinding so a cable won't tangle. It's designed for outdoor use, and it's resistant to harsh weather conditions and mechanical damage.
Wires | |
Type | Wire - pure copper |
Diameter | 0.56mm±0.005mm |
AWG | 23 |
Sheath | |
Type | PE |
Diameter | 1.08mm±0.03mm |
Separation foil | polyester |
Grounding wire | 0.5mm CCS |
Shielded | yes |
RIP CORD | yes |
Outer sheath | |
Type | PE |
Color | black |
Thickness | 0.6mm±0.05mm |
Outer diameter | 7.5mm±0.2m |
Parameters | Unit | Value |
Max. linear resistance | Ω/km | ?80 |
Capacity (nom.) | pF/m | 56 |
Unbalance capacity max (p/p at 1 KHz) | pF/km | 1600 |
Characteristic impedance (1 at 100 MHz) | Ω | 100±15 |
Propagation speed (f> 1MHz) | %of c | 66 |
