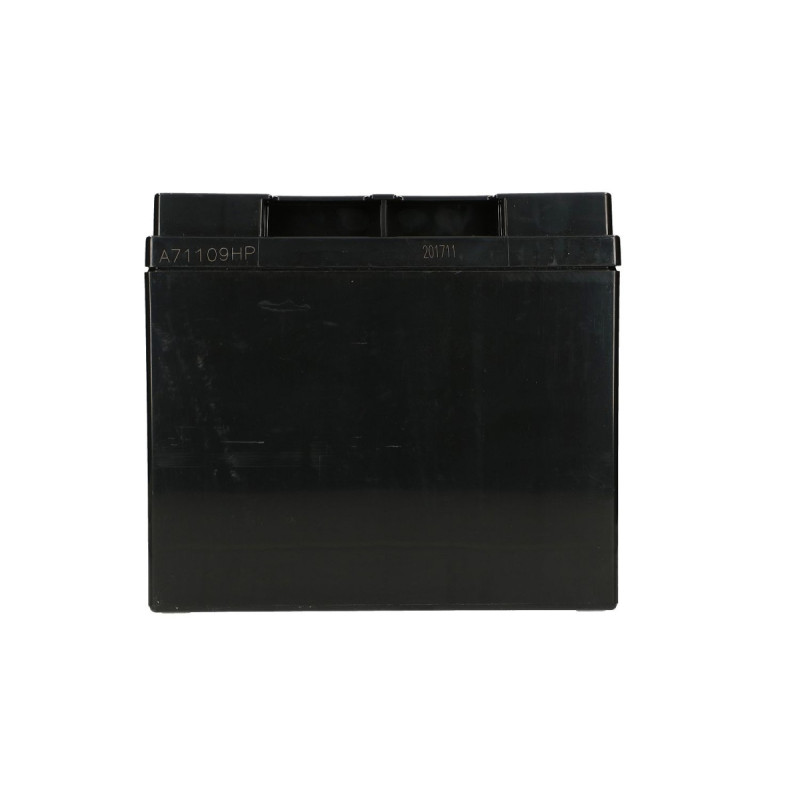

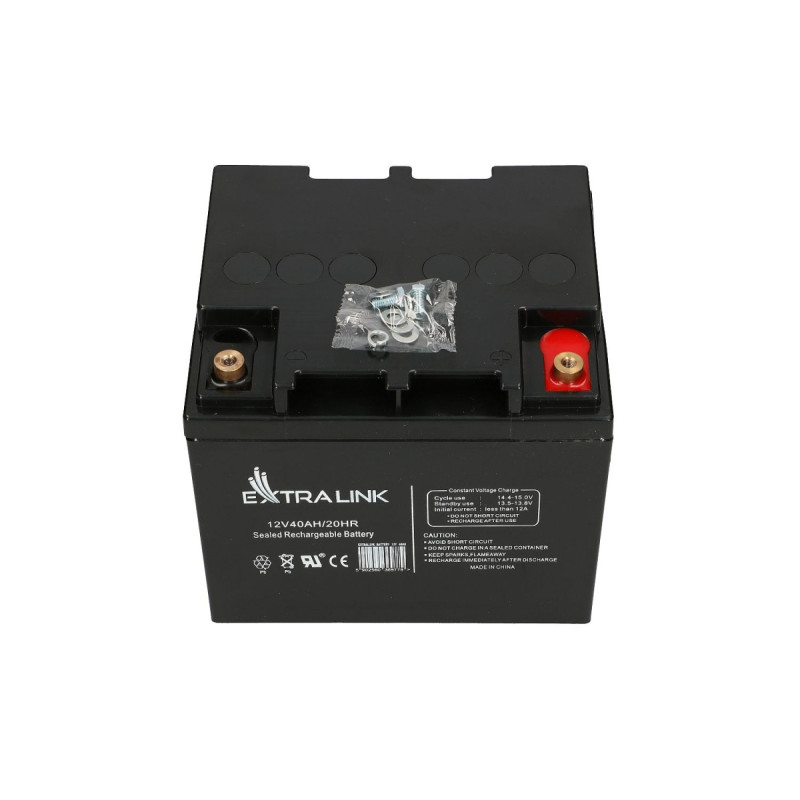

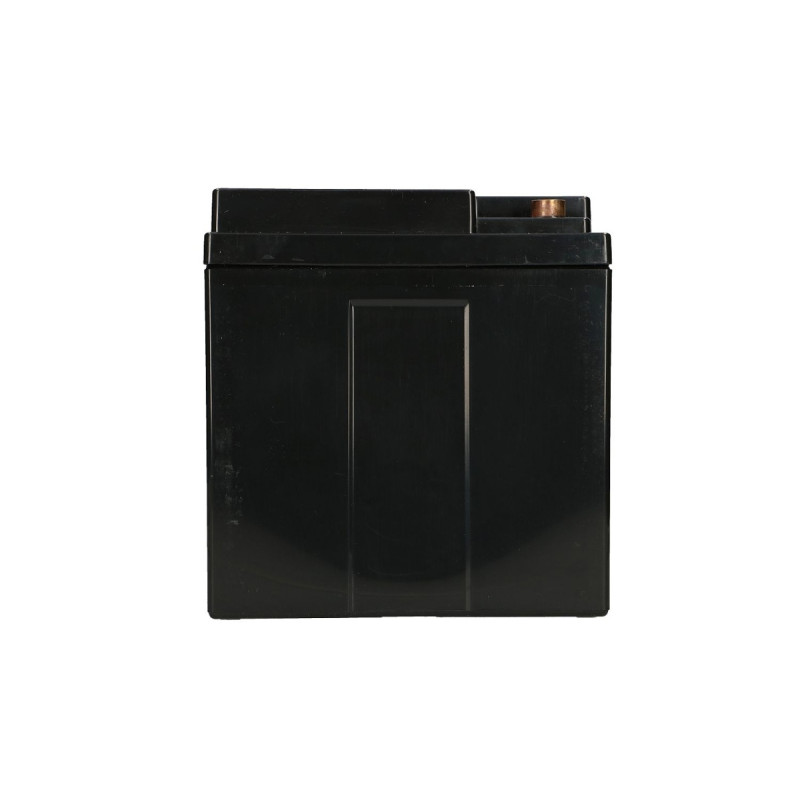

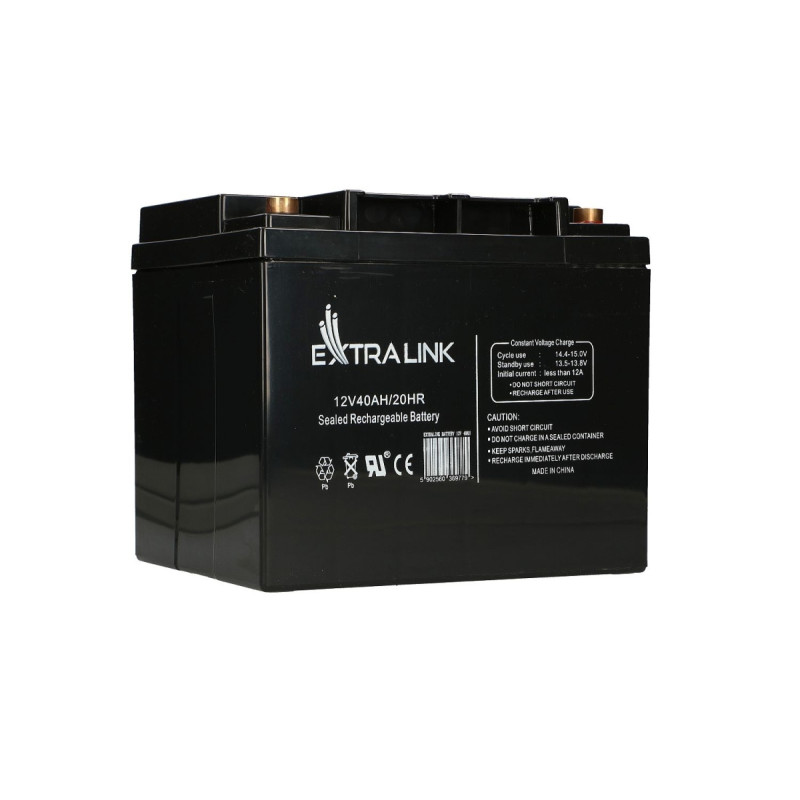

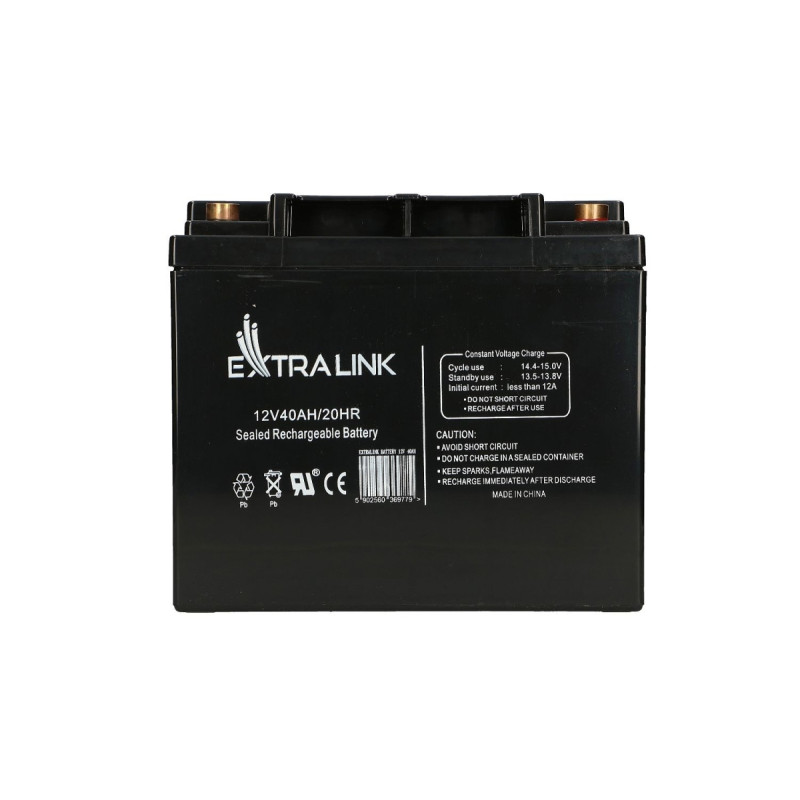

EXTRALINK AGM Battery 12V 40Ah

Nominal Voltage

12V

Nominal Capacity (10HR)

40.0AH

Dimension

Length: 197 + 2mm (7.76 inches)

Width: 165 + 2mm (6.50 inches)

Container Height: 176 + 2mm (6.92 inches)

Total Height (with Terminal): 176 + 2mm (6.92 inches)

Approx. Weight

Approx 12.2 kg (26.89 lbs)

Terminal

T6 / T12

Container Material

ABS

Rated Capacity

40 AH/2.0A (20hr,1.80V/cell,25°C/77°F)

38.0 AH/3.8A (10hr,1.80V/cell,25°C /77°F)

32.7 AH/6.55A (5hr,1.75V/cell,25°C /77°F)

29.7 AH/9.89A (3hr,1.75V/cell,25°C /77°F)

23.2 AH/23.2A (1hr,1.60V/cell,25°C /77°F)

Max. Discharge Current

456A (5s)

Internal Resistance

Approx. 10 mΩ

Operating Temp. Range

Discharge : -15~50°C (5~122°F)

Charging: 0~40°C (32~104°F)

Storage : -15~40°C (5~104°F)

Nominal Operating Temp. Range

25 + 3 (77 + 5°F)

Cycle Use

Initial Charging Current less than 11.4 A.

Voltage 14.4V~15.0V at 25°C (77°F)Temp.

Coefficient -30mV/°C

Standby Use

No limit on Initial Charging Current Voltage

13.5V~13.8V at 25°C(77°F)Temp.

Coefficient -20mV/°C

Capacity affected by Temperature

40°C (104°F) 103%

25°C ( 77 °F ) 100%

0°C ( 32 °F ) 86%

Self-Discharge

Extralink series batteries may be stored for up to 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
