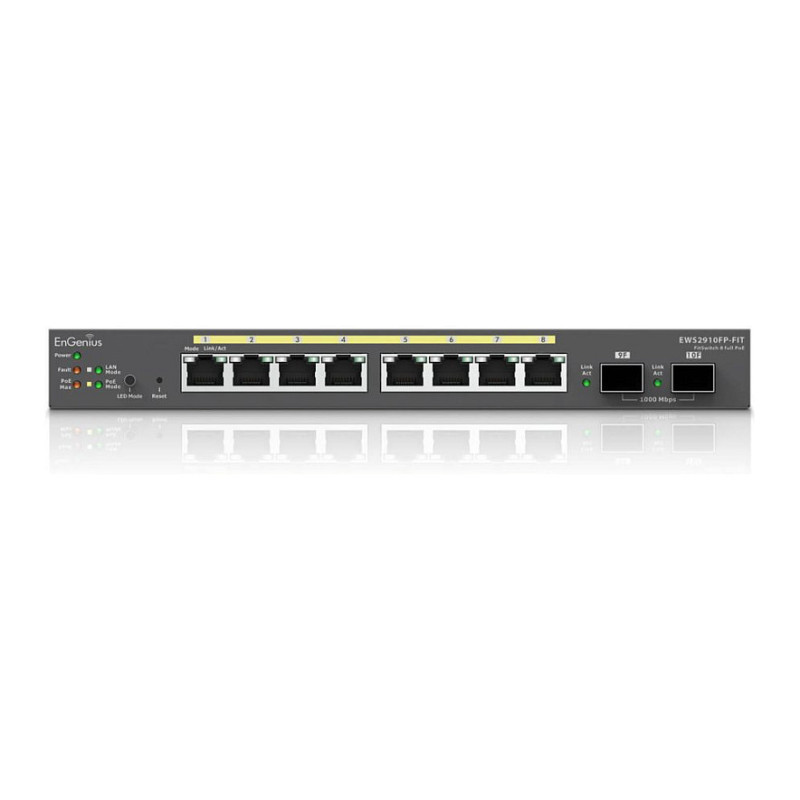

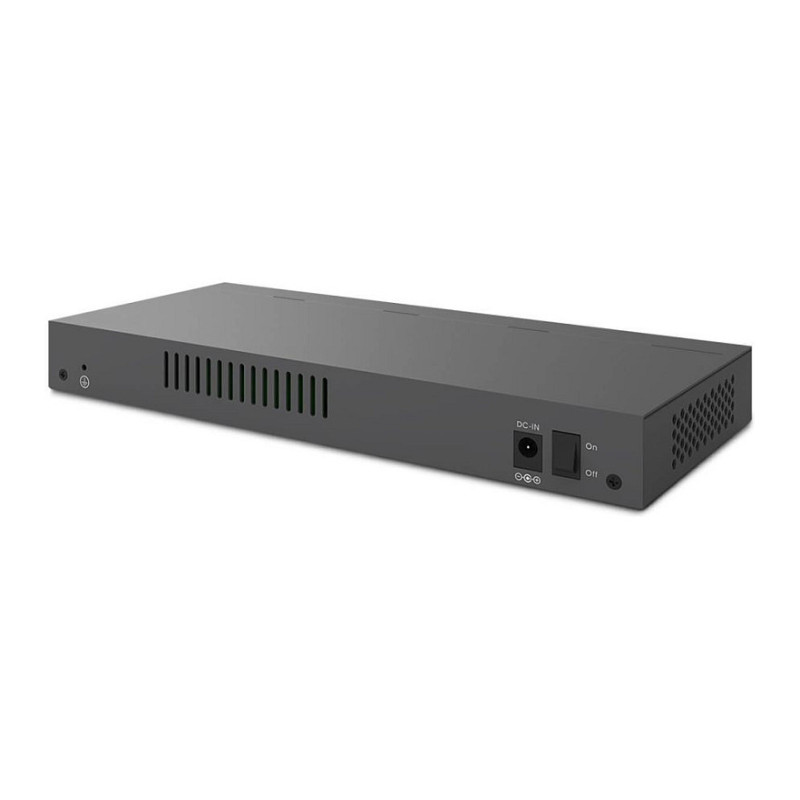

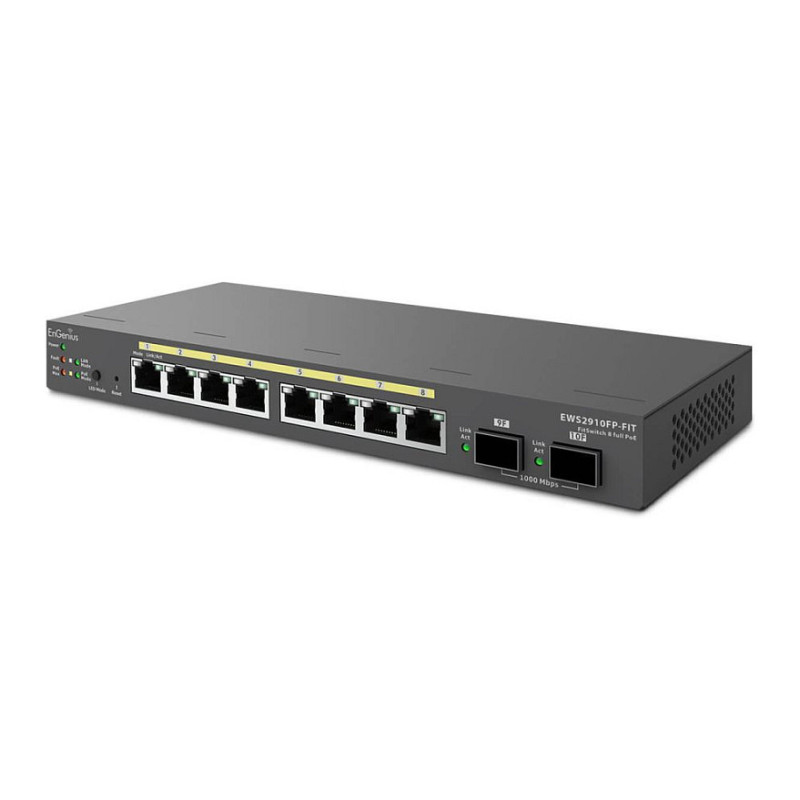

EnGenius EWS2910FP-FIT network switch

EnGenius Switch 8-port GbE PoE.af/at(+) 130W, 2xSFP Desktop wall-mountable. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

EnGenius Fit Gigabit 8-Port 110W PoE+ Switch with 2 SFP Ports

EnGenius Fit Layer 2+ Switch, EWS2910FP-FIT, offers 8 Gigabit PoE+ ports, 2 Gigabit SFP uplink ports, and a 110W budget. It provides zero-touch provisioning, centralized cloud management, and supports EnGenius FitXpress (cloud-managed), FitController (on-premises), or standalone management options. With advanced security features and Voice-VLAN, it maximizes network efficiency and reduces costs for SMBs..

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support

Data transmission

Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000

Security

DHCP features: DHCP snooping, DHCP relay
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNTP

Design

Product colour: Grey

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 110 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 105 mm
Depth: 240 mm
Height: 27 mm
Weight: 620 g

Packaging data

Package width: 395 mm
Package depth: 310 mm
Package height: 102 mm
Package weight: 2.75 kg

Logistics data

Master (outer) case net weight: 27.4 kg
Master (outer) case width: 351 mm
Master (outer) case length: 452 mm
Master (outer) case height: 298 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 8.93 kg
Products per master (outer) case: 10 pc(s)
