Electrical socket tester - Habotest HT106D 48-250 V 45-65 Hz RCD test
Product reference: 14-5907489606639

Habotest The HT106D socket tester detects wiring errors, checks earthing and performs residual current device (RCD) tests greater than 30 mA. The illuminated LCD screen measures 48-250 V AC voltage at a frequency of 45-65 Hz.

Electrical socket tester - Habotest HT106D 48-250 V 45-65 Hz RCD test

Product reference: 14-5907489606639

Habotest The HT106D socket tester detects wiring errors, checks earthing and performs residual current device (RCD) tests greater than 30 mA. The illuminated LCD screen measures 48-250 V AC voltage at a frequency of 45-65 Hz.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
22,71 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Habotest HT106D

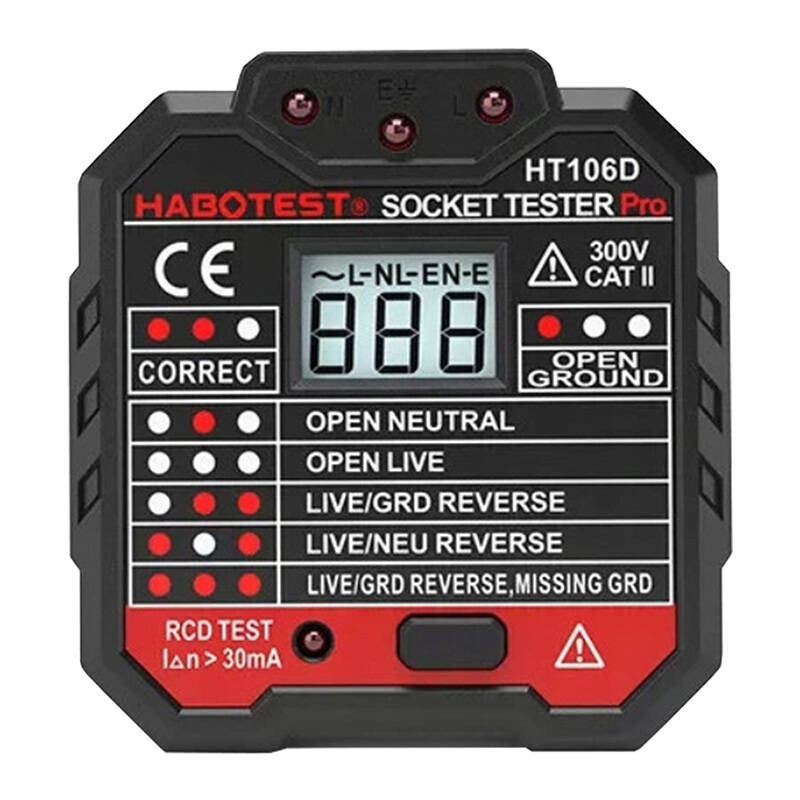

The " Habotest HT106D" electrical socket tester detects wiring faults, checks grounding and performs RCD tests at a current greater than 30 mA. The illuminated LCD screen measures 48-250 V AC voltage with a frequency of 45-65 Hz.


  • Socket tester for quickly identifying wiring faults, such as missing ground, reversed polarity or missing neutral.
  • Integrated LED indicators immediately show the status of the socket.
  • Supports simple RCD testing at currents greater than 30 mA, allowing for additional electrical safety checks.
  • Measures 48-250 V AC voltage and displays the measurement result on a backlit LCD screen.

Product information

Product type Electrical outlet tester
Brand Habotest
Model HT106D

Technical specifications

Voltage measurement frequency 45-65Hz
Screen Backlit LCD display
Wiring fault indication LED indicator combinations
Detectable conditions Missing grounding, reversed polarity and missing neutral wire
RCD test function Simple RCD test at a current greater than 30 mA
Safety classification EN 61010-1, EN 61010-2-030; EN 61326-1; CAT II 300V
Weight About 50g
Dimensions 65 × 62 × 58mm

Safety warning

Warning Use only to test compatible electrical outlets and do not exceed the specified voltage range. This tester is intended for indication and measurement purposes only and is not intended for wiring repairs or replacement by a qualified electrician. Do not use a damaged device and do not touch exposed conductors during testing.

Height100mm
Length150mm
Weight80 g
Width80mm
